TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8.0SMDJ60CATVS DIODE 60VWM 96.8VC DO214AB |
1,032 |
|
Datasheet |
DO-214AB, SMC | 8.0SMDJ | Tape & Reel (TR) | Active | Zener | - | 1 | 60V | 66.7V | 96.8V | 82.7A | 8000W (8kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
SMDA12C-7.TBTTVS DIODE 12VWM 19VC 8-SO |
16,617 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | SMDAC-7 | Tape & Reel (TR) | Active | Zener | - | 7 | 12V (Max) | 13.3V | 19V | 12A (8/20µs) | 300W | No | General Purpose | 120pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SO |
|
|
SMDA05C-7.TBTTVS DIODE 5VWM 9.8VC 8-SO |
2,180 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | SMDAC-7 | Tape & Reel (TR) | Active | Zener | - | 7 | 5V (Max) | 6V | 9.8V | 17A (8/20µs) | 300W | No | General Purpose | 350pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SO |
|
SM8S15AHE3_A/ITVS DIODE 15VWM 24.4VC DO218AB |
1,687 |
|
Datasheet |
DO-218AB | PAR® | Tape & Reel (TR) | Active | Zener | 1 | - | 15V | 16.7V | 24.4V | 270A | 6600W (6.6kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-218AB |
|
TP5.0SMDJ70CATVS 5KW AECQ-101 TR13 ROHS |
5,900 |
|
Datasheet |
DO-214AB, SMC | TP5.0SMDJ | Tape & Reel (TR) | Active | Zener | - | 1 | 70V | 77.8V | 113V | 44.3A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMCJ) |
|

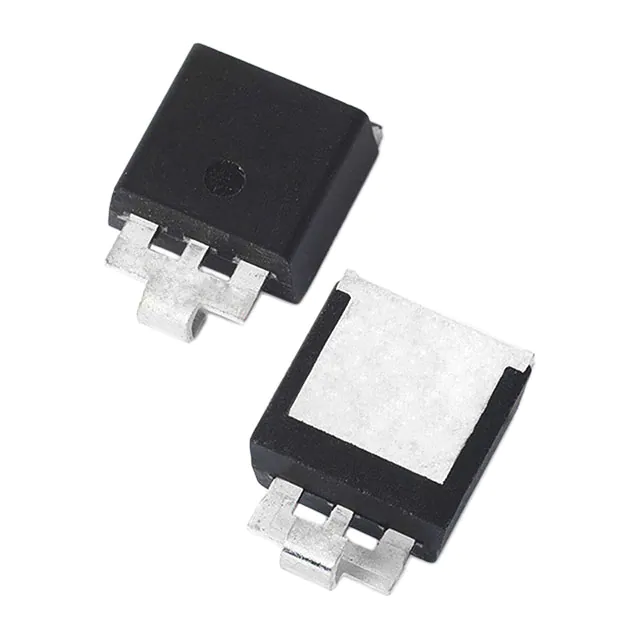

SLD8S33ATVS DIODE 33VWM 53.3VC SMTO-263 |
6,154 |
|
Datasheet |
Nonstandard SMD | SLD8S | Tape & Reel (TR) | Active | Zener | 1 | - | 33V | 36.7V | 53.3V | 132A | 7000W (7kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMTO-263 |
|
|
SLD8S28ATVS DIODE 28VWM 45.4VC SMTO-263 |
1,953 |
|
Datasheet |
Nonstandard SMD | SLD8S | Tape & Reel (TR) | Active | Zener | 1 | - | 28V | 31.1V | 45.4V | 154A | 7000W (7kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMTO-263 |
|
|
LC03-6.TBTTVS DIODE 6VWM 20VC 8-SO |
12,259 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 2 | - | 6V (Max) | 6.8V | 20V | 100A (8/20µs) | 2000W (2kW) | Yes | Ethernet | 16pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SO |
|
MMAD1103E3/TR13TVS DIODE 75VWM 14SOIC |
1,098 |
|
Datasheet |
14-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 8 | - | 75V (Max) | 90V | - | - | - | No | Ethernet | 1.5pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 14-SOIC |
|
TCLAMP3302N.TCTTVS DIODE 3.3VWM 25VC SLP2626P10 |
11,286 |
|
Datasheet |
10-UFDFN Exposed Pad | TransClamp™ | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 2 | - | 3.3V (Max) | - | 25V | 95A (8/20µs) | 2500W (2.5kW) | Yes | Ethernet, Telecom | 25pF @ 1MHz | -40°C ~ 85°C (TJ) | - | - | Surface Mount | SLP2626P10 (2.6x2.6) |
|
MAX3204EETT+TTVS DIODE 6TDFN |
6,358 |
|
Datasheet |
6-WDFN Exposed Pad | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | - | - | - | - | - | No | Ethernet | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-TDFN (3x3) |
|
15KPA150CATVS DIODE 150VWM 241.9VC P600 |
4,065 |
|
Datasheet |
P600, Axial | 15KPA | Tape & Reel (TR) | Active | Zener | - | 1 | 150V | 167.6V | 241.9V | 62.4A | 15000W (15kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
|
|
15KPA260CATVS DIODE 260VWM 416.7VC P600 |
3,195 |
|
Datasheet |
P600, Axial | 15KPA | Tape & Reel (TR) | Active | Zener | - | 1 | 260V | 290.4V | 416.7V | 36.2A | 15000W (15kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
|
|
SLVU2.8-4.TBTTVS DIODE 2.8VWM 15VC 8-SO |
10,651 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | SLV | Tape & Reel (TR) | Active | Zener | 4 | - | 2.8V (Max) | 3V | 15V | 24A (8/20µs) | 400W | No | General Purpose | 5pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SO |
|
|
LCDA05.TBTTVS DIODE 5VWM 11VC 8-SO |
8,663 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Zener | - | 2 | 5V (Max) | 6V | 11V | 5A (8/20µs) | 300W | No | General Purpose | 5pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SO |
|
|
LCDA12.TBTTVS DIODE 12VWM 24VC 8-SO |
1,935 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Zener | - | 2 | 12V (Max) | 13.3V | 24V | 5A (8/20µs) | 300W | No | General Purpose | 5pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SO |
|
|
LC03-3.3.TBTTVS DIODE 3.3VWM 18VC 8-SO |
16,375 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 2 | - | 3.3V (Max) | - | 18V | 100A (8/20µs) | 1800W (1.8kW) | Yes | Ethernet, Telecom | 16pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SO |
|
|
SMDA15C.TBTTVS DIODE 15VWM 30VC 8-SO |
1,817 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | SMDAC | Tape & Reel (TR) | Active | Zener | - | 4 | 15V (Max) | 16.7V | 30V | 10A (8/20µs) | 300W | No | General Purpose | 75pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SO |
|
|
SMDA12C.TBTTVS DIODE 12VWM 24VC 8-SO |
1,242 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | SMDAC | Tape & Reel (TR) | Active | Zener | - | 4 | 12V (Max) | 13.3V | 24V | 12A (8/20µs) | 300W | No | General Purpose | 120pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SO |
|
|
LCDA15C-6.TBTTVS DIODE 15VWM 33VC 8-SO |
4,082 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Zener | - | 6 | 15V (Max) | 16.7V | 33V | 15A (8/20µs) | 500W | No | General Purpose | 8pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SO |
