TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P6SMB15CATVS DIODE 12.8VWM 21.2VC SMB |
11,651 |
|
Datasheet |
DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | - | 1 | 12.8V | 14.3V | 21.2V | 28.8A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
SMBJ110CD-M3/ITVS DIODE 110VWM 174VC DO214AA |
11,508 |
|
Datasheet |
DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 110V | 124V | 174V | 3.45A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|

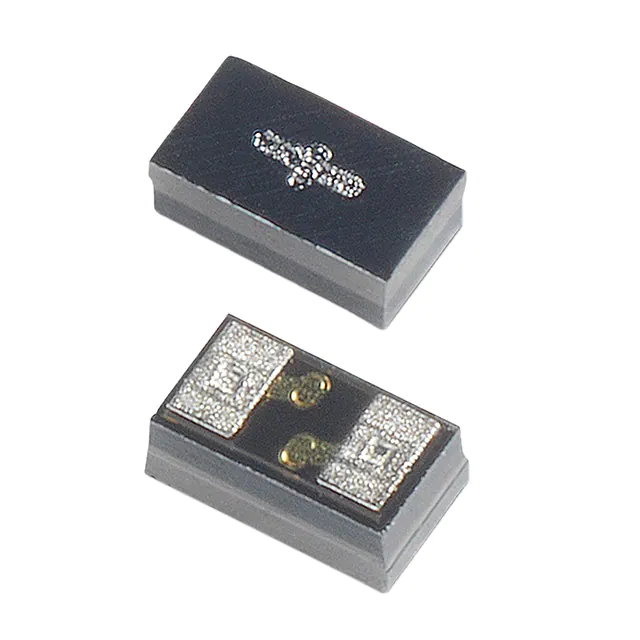

SP1312-01WTGTVS DIODE 12VWM 27VC 01005 |
10,175 |
|
Datasheet |
01005 (0402 Metric) | SP1312, SPA® | Tape & Reel (TR) | Active | Zener | - | 1 | 12V (Max) | 13V | 27V | 3A (8/20µs) | - | No | General Purpose | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 01005, Flip Chip |
|
ESDL3552PFCT5GESD PROTECTION |
9,671 |
|
Datasheet |
3-XFDFN | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 6.5V | 21.5V | 2A (8/20µs) | - | No | USB | 0.25pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 3-X4DFN (0.62x0.32) |
|
|
SMBJ45CD-M3/ITVS DIODE 45VWM 71.6VC DO214AA |
9,410 |
|
Datasheet |
DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 45V | 50.8V | 71.6V | 8.4A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
SJD12A16L01TVS ARRAY ESD, SOD-123, 16V 26V, |
9,000 |
|
Datasheet |
DO-219AA | SJD12A16L01 | Tape & Reel (TR) | Active | Zener | 1 | - | 16V | 17.8V | 26V | 7.7A | 1000W (1kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123S |
|
|
SMBJ20CD-M3/ITVS DIODE 20VWM 32VC DO214AA |
8,600 |
|
Datasheet |
DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 20V | 22.5V | 32V | 18.8A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
SMA6F12AHD-M3/6ATVS DIODE 12VWM 22.9VC DO221AC |
8,589 |
|
Datasheet |
DO-221AC, SMA Flat Leads | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 12V | 13.2V | 22.9V | 157A (8/20µs) | 4000W (4kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-221AC (SlimSMA) |
|
|
SMBJ120CD-M3/ITVS DIODE 120VWM 190VC DO214AA |
7,844 |
|
Datasheet |
DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 120V | 135V | 190V | 3.15A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
SMBJ85CD-M3/HTVS DIODE 85VWM 135VC DO214AA |
7,666 |
|
Datasheet |
DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 85V | 95.7V | 135V | 4.46A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
SMBJ22CD-M3/HTVS DIODE 22VWM 35.1VC DO214AA |
7,500 |
|
Datasheet |
DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 22V | 24.8V | 35.1V | 17.1A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
P6SMB20CATVS DIODE 17.1VWM 27.7VC SMB |
7,343 |
|
Datasheet |
DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | - | 1 | 17.1V | 19V | 27.7V | 21.7A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
|
SMBJ33CD-M3/HTVS DIODE 33VWM 52.5VC DO214AA |
7,150 |
|
Datasheet |
DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 33V | 37.3V | 52.5V | 11.5A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
RSAC6.8CMT2RTVS DIODE 5VWM SOD923 |
5,586 |
|
Datasheet |
2-SMD, Flat Leads | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 6.7V | - | - | - | No | General Purpose | 0.3pF @ 1MHz | 150°C (TJ) | - | - | Surface Mount | VMN2M (SOD-923) |
|
|
P6SMB43CATVS DIODE 36.8VWM 59.3VC SMB |
5,580 |
|
Datasheet |
DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | - | 1 | 36.8V | 40.9V | 59.3V | 10.3A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
|
SMBJ110CD-M3/HTVS DIODE 110VWM 174VC DO214AA |
5,515 |
|
Datasheet |
DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 110V | 124V | 174V | 3.45A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
TPSMF4L7.0ATVS DIODE 7VWM 12VC SOD123FL |
5,222 |
|
Datasheet |
SOD-123F | TPSMF4L | Tape & Reel (TR) | Active | Zener | 1 | - | 7V | 7.78V | 12V | 30.9A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123F |
|
|
SMBJ20CD-M3/HTVS DIODE 20VWM 32VC DO214AA |
5,206 |
|
Datasheet |
DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 20V | 22.5V | 32V | 18.8A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
SMBJ58CD-M3/HTVS DIODE 58VWM 92.3VC DO214AA |
5,170 |
|
Datasheet |
DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 58V | 65.4V | 92.3V | 6.5A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
P4SMAJ20ADF-13TVS DIODE 20VWM 32.4VC D-FLAT |
5,069 |
|
Datasheet |
2-SMD, Flat Leads | - | Tape & Reel (TR) | Active | Zener | 1 | - | 20V | 22.2V | 32.4V | 12.3A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D-Flat |
TVS Diodes Electronic Components
Frequently Asked Questions
Q1: What products are included in TVS Diodes?
This category includes related TVS Diodes subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for TVS Diodes components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for TVS Diodes and other electronic components.
