TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
~~2.jpg)
|
TPSMP30AHM3_A/ITVS DIODE 25.6VWM 41.4VC DO220AA |
17,000 |
|
Datasheet |
DO-220AA | PAR®, eSMP® | Tape & Reel (TR) | Active | Zener | 1 | - | 25.6V | 28.5V | 41.4V | 9.7A | 400W | No | - | - | -65°C ~ 185°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-220AA (SMP) |
;;2.jpg)
|
SMCJ16ATVS DIODE 16VWM 26VC SMC |
12,265 |
|
Datasheet |
DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | 1 | - | 16V | 17.8V | 26V | 57.7A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
;;2.jpg)
|
SM6T220CA-E3/52TVS DIODE 188VWM 328VC DO214AA |
11,770 |
|
Datasheet |
DO-214AA, SMB | SM6T, TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 188V | 209V | 328V | 2A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
SMBJ48CATVS DIODE 48VWM 77.4VC DO214AA |
11,411 |
|
Datasheet |
DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | - | 2 | 48V | 53.3V | 77.4V | 7.8A | 600W | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AA (SMBJ) |
|
SMCJ45ATVS DIODE 45VWM 72.7VC SMC |
9,401 |
|
Datasheet |
DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | 1 | - | 45V | 50V | 72.7V | 20.6A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
.jpg)
|
SMCJ1.5KE82CA-TPTVS DIODE 70.1VWM 113VC DO214AB |
8,141 |
|
Datasheet |
DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | - | 1 | 70.1V | 77.9V | 113V | 13.5A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
P6SMB43ATVS DIODE 36.8VWM 59.3VC DO214AA |
7,645 |
|
Datasheet |
DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | 1 | - | 36.8V | 40.9V | 59.3V | 10.3A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
;;2.jpg)
|
P6KE6.8CATVS DIODE 5.8VWM 10.5VC DO15 |
7,536 |
|
Datasheet |
DO-204AC, DO-15, Axial | P6KE | Cut Tape (CT) | Active | Zener | - | 1 | 5.8V | 6.45V | 10.5V | 57A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-15 |
|
SMCJ64CA/TR13TVS DIODE 64VWM 103VC DO214AB |
6,625 |
|
Datasheet |
DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | - | 1 | 64V | 71.1V | 103V | 14.6A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
P4SMA400ATVS DIODE 342VWM 548VC SMA |
6,611 |
|
Datasheet |
DO-214AC, SMA | P4SMA | Tape & Reel (TR) | Active | Zener | 1 | - | 342V | 380V | 548V | 800mA | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMA |
|
SMF18VTRTVS DIODE 18VWM 29.2VC PMDU |
6,223 |
|
Datasheet |
SOD-123F | - | Tape & Reel (TR) | Active | Zener | 1 | - | 18V (Max) | 20V | 29.2V | 6.8A | 200W | No | General Purpose | - | 150°C (TJ) | - | - | Surface Mount | PMDU |
|
SP4023-01FTGTVS DIODE 15VWM 40VC SOD323 |
6,207 |
|
Datasheet |
SC-76, SOD-323 | * | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 1 | - | 15V (Max) | 16V | 40V | 12A (8/20µs) | 450W | No | - | 1.3pF @ 1MHz | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
|
DF3D36FU,LXHFAUTO AEC-Q BIDIRECTIONAL ESD PRO |
5,964 |
|
Datasheet |
SC-70, SOT-323 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 28V (Max) | 32V | 60V | 2.5A (8/20µs) | 150W | No | - | 6.5pF @ 1MHz | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SC-70 |
|
|
SMF6V0TFTRTVS DIODE 6VWM 10.3VC PMDU |
5,315 |
|
Datasheet |
SOD-123F | - | Tape & Reel (TR) | Active | Zener | 1 | - | 6V | 6.67V | 10.3V | 19.4A | 200W | No | - | - | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | PMDU |
|
|
SMBJ12ATVS DIODE 12VWM 19.9VC SMB |
5,011 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 12V | 13.3V | 19.9V | 30.15A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
P4SMA56ATVS DIODE 47.8VWM 77VC DO214AC |
4,848 |
|
Datasheet |
DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | 1 | - | 47.8V | 53.2V | 77V | 5.3A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|

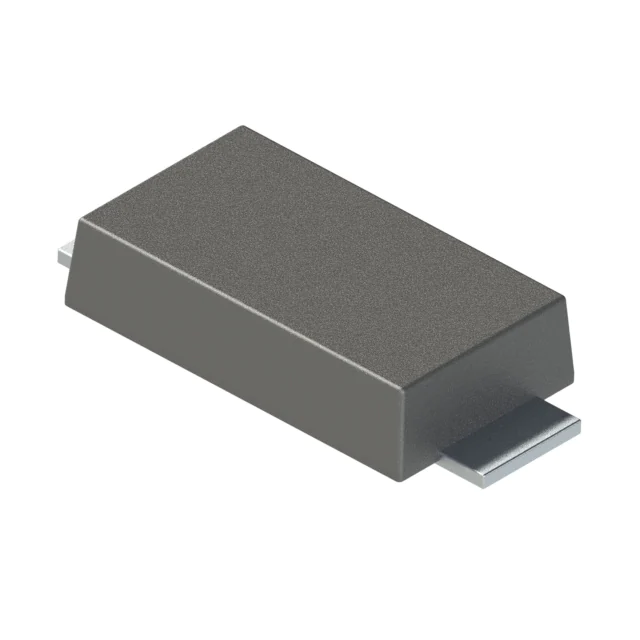

P6SMAJ58ADF-13TVS DIODE 58VWM 93.6VC D-FLAT |
4,755 |
|
Datasheet |
2-SMD, Flat Leads | SMAJ | Tape & Reel (TR) | Active | Zener | 1 | - | 58V | 64.4V | 93.6V | 6.4A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D-Flat |
|
|
SM6T36CA-E3/52TVS DIODE 30.8VWM 49.9VC DO214AA |
3,700 |
|
Datasheet |
DO-214AA, SMB | SM6T, TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 30.8V | 34.2V | 49.9V | 12A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
SMBJ5.0CATVS DIODE 5VWM 9.2VC SMB |
3,620 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V | 6.4V | 9.2V | 65.22A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
SMA6J85CA-TRTVS DIODE 85VWM 146VC SMA |
3,550 |
|
Datasheet |
DO-214AC, SMA | SMA6J, TRANSIL™ | Tape & Reel (TR) | Active | Zener | - | 1 | 85V | 94V | 146V | 22.5A (8/20µs) | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
TVS Diodes Electronic Components
Explore TVS Diodes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
