TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMCG150CA-E3/9ATTVS DIODE 150VWM 243VC DO215AB |
4,060 |
|
Datasheet |
DO-215AB, SMC Gull Wing | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 150V | 167V | 243V | 6.2A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCG) |
|
|
SMCG160CA-E3/9ATTVS DIODE 160VWM 259VC DO215AB |
6,988 |
|
Datasheet |
DO-215AB, SMC Gull Wing | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 160V | 178V | 259V | 5.8A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCG) |
|
|
SMCG170CA-E3/9ATTVS DIODE 170VWM 275VC DO215AB |
4,763 |
|
Datasheet |
DO-215AB, SMC Gull Wing | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 170V | 189V | 275V | 5.5A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCG) |
|
|
SMCG75CA-E3/9ATTVS DIODE 75VWM 121VC DO215AB |
8,849 |
|
Datasheet |
DO-215AB, SMC Gull Wing | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 75V | 83.3V | 121V | 12.4A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCG) |
|
|
SMCG78CA-E3/9ATTVS DIODE 78VWM 126VC DO215AB |
3,957 |
|
Datasheet |
DO-215AB, SMC Gull Wing | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 78V | 86.7V | 126V | 11.9A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCG) |
|
|
SMCG85CA-E3/9ATTVS DIODE 85VWM 137VC DO215AB |
7,240 |
|
Datasheet |
DO-215AB, SMC Gull Wing | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 85V | 94.4V | 137V | 10.9A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCG) |
|
|
SMCG90CA-E3/9ATTVS DIODE 90VWM 146VC DO215AB |
6,328 |
|
Datasheet |
DO-215AB, SMC Gull Wing | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 90V | 100V | 146V | 10.3A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCG) |
|
P4SMA130A-E3/61TVS DIODE 111VWM 179VC DO214AC |
7,921 |
|
Datasheet |
DO-214AC, SMA | P4SMA, TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 111V | 124V | 179V | 1.7A | 300W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
P4SMA75A-E3/61TVS DIODE 64.1VWM 104VC DO214AC |
2,623 |
|
Datasheet |
DO-214AC, SMA | P4SMA, TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 64.1V | 71.3V | 104V | 3.9A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
SMAJ20CAHE3/61TVS DIODE 20VWM 32.4VC DO214AC |
3,350 |
|
Datasheet |
DO-214AC, SMA | TransZorb® | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | - | 1 | 20V | 22.2V | 32.4V | 12.3A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
SMBJ12CE3/TR13TVS DIODE 12VWM 22VC SMBJ |
6,884 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | - | 1 | 12V | 13.3V | 22V | 27.3A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
SMBJ36CE3/TR13TVS DIODE 36VWM 64.3VC SMBJ |
6,371 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | - | 1 | 36V | 40V | 64.3V | 9.3A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
SMBJ6.5CAE3/TR13TVS DIODE 6.5VWM 11.2VC SMBJ |
9,201 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | - | 1 | 6.5V | 7.22V | 11.2V | 53.6A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
SMBJ60CAE3/TR13TVS DIODE 60VWM 96.8VC SMBJ |
8,893 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | - | 1 | 60V | 66.7V | 96.8V | 6.2A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
SMBJ7.5CAE3/TR13TVS DIODE 7.5VWM 12.9VC SMBJ |
6,862 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | - | 1 | 7.5V | 8.33V | 12.9V | 46.5A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
ACPDUC24V-HFTVS DIODE 24VWM 47V 0603C/SOD523 |
5,630 |
|
Datasheet |
2-SMD, No Lead | - | Tape & Reel (TR) | Active | Zener | - | 1 | 24V | 25V | 47V | 1A (8/20µs) | 47W | No | - | 10pF @ 1MHz | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 0603C/SOD-523F |
|

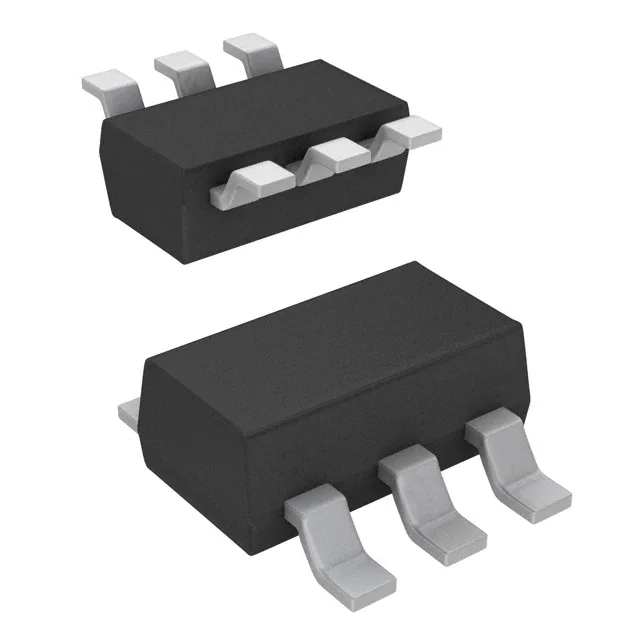

ACSRS065V0PTVS DIODE 5VWM 9VC SOT23-6 |
5,568 |
|
Datasheet |
SOT-23-6 | - | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6V | 9V | 5A (8/20µs) | - | Yes | - | - | -55°C ~ 85°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-6 |
;;2.jpg)
|
SMBJ6.5CD-M3/HTVS DIODE 6.5VWM 11VC DO214AA |
8,948 |
|
Datasheet |
DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 6.5V | 7.33V | 11V | 54.5A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
SMBJ11CD-M3/HTVS DIODE 11VWM 17.9VC DO214AA |
2,036 |
|
Datasheet |
DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 11V | 12.4V | 17.9V | 33.5A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
SMBJ17CD-M3/HTVS DIODE 17VWM 27.2VC DO214AA |
5,337 |
|
Datasheet |
DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 17V | 19.2V | 27.2V | 22.1A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
TVS Diodes Electronic Components
Frequently Asked Questions
Q1: What products are included in TVS Diodes?
This category includes related TVS Diodes subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for TVS Diodes components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for TVS Diodes and other electronic components.
