TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P4SMA180ATVS DIODE 154VWM 246VC DO214AC |
4,637 |
|
Datasheet |
DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | 1 | - | 154V | 171V | 246V | 1.7A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
P4KE400CATVS DIODE 342VWM 548VC DO41 |
6,566 |
|
Datasheet |
DO-204AL, DO-41, Axial | - | Cut Tape (CT) | Active | Zener | - | 1 | 342V | 380V | 548V | 730mA | 400W | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | DO-41 |
|
AQ1026-01UTGTVS DIODE 6VWM 13.4VC 2UDFN |
8,922 |
|
Datasheet |
0201 (0603 Metric) | AQ1026, SPA® | Tape & Reel (TR) | Active | Zener | - | 1 | 6V (Max) | 7.8V (Typ) | 13.4V (Typ) | 2A (8/20µs) | - | No | - | 15pF @ 1MHz | -40°C ~ 125°C (TA) | Automotive | AEC-Q101 | Surface Mount | 2-µDFN (0.60x0.30) |
|
PGSMAJ5.0A E3GTVS DIODE 5VWM 9.2VC DO214AC |
6,910 |
|
Datasheet |
DO-214AC, SMA | PGSMAJ | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 5V | 6.4V | 9.2V | 43.5A | 400W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
|
PGSMAJ6.5A E3GTVS DIODE 6.5VWM 11.2VC DO214AC |
5,784 |
|
Datasheet |
DO-214AC, SMA | PGSMAJ | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 6.5V | 7.22V | 11.2V | 35.7A | 400W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
|
PGSMAJ8.5A E3GTVS DIODE 8.5VWM 14.4VC DO214AC |
6,194 |
|
Datasheet |
DO-214AC, SMA | PGSMAJ | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 8.5V | 9.44V | 14.4V | 27.8A | 400W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
|
SP1220-01ETGTVS DIODE 5.75VWM 11VC SOD882 |
3,616 |
|
Datasheet |
SOD-882 | SP1220, SPA® | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 5.75V (Max) | 7V (Typ) | 11V | 20A (8/20µs) | 250W | No | - | 290pF @ 1MHz | -40°C ~ 125°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-882 |
|

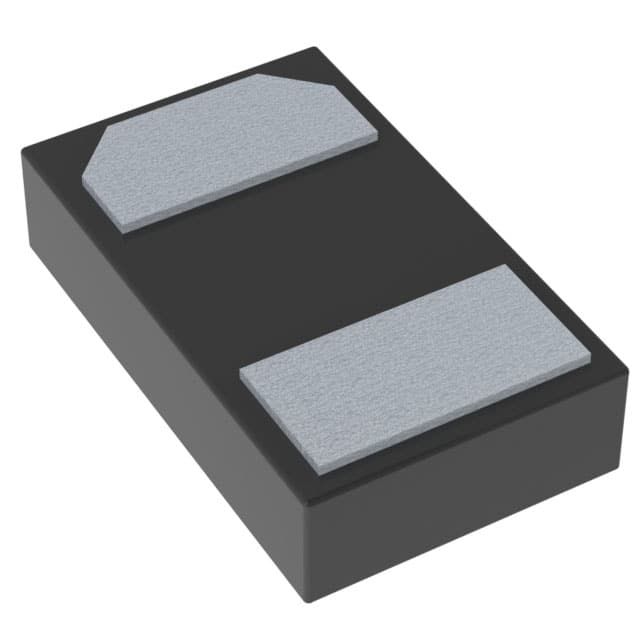

ESDL4151MX4T5GTVS DIODE 15VWM 26VC 2X3DFN |
5,500 |
|
Datasheet |
0402 (1006 Metric) | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 15V (Max) | 15.5V | 26V | 47.5A (8/20µs) | - | No | USB 2.0, USB 3.0 | 0.8pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 2-X3DFN (1x0.6) |
|
SMBG5.0AHE3/5BTVS DIODE 5VWM 9.2VC DO215AA |
6,652 |
|
Datasheet |
DO-215AA, SMB Gull Wing | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 5V | 6.4V | 9.2V | 65.2A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBG) |
|
|
SMBG6.0AHE3/5BTVS DIODE 6VWM 10.3VC DO215AA |
6,759 |
|
Datasheet |
DO-215AA, SMB Gull Wing | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 6V | 6.67V | 10.3V | 58.3A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBG) |
|
|
SMBG6.5AHE3/5BTVS DIODE 6.5VWM 11.2VC DO215AA |
3,842 |
|
Datasheet |
DO-215AA, SMB Gull Wing | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 6.5V | 7.22V | 11.2V | 53.6A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBG) |
|
|
SMBG7.0AHE3/5BTVS DIODE 7VWM 12VC DO215AA |
4,932 |
|
Datasheet |
DO-215AA, SMB Gull Wing | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 7V | 7.78V | 12V | 50A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBG) |
|
|
SMBG7.5AHE3/5BTVS DIODE 7.5VWM 12.9VC DO215AA |
3,136 |
|
Datasheet |
DO-215AA, SMB Gull Wing | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 7.5V | 8.33V | 12.9V | 46.5A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBG) |
|
|
SMBG8.0AHE3/5BTVS DIODE 8VWM 13.6VC DO215AA |
6,882 |
|
Datasheet |
DO-215AA, SMB Gull Wing | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 8V | 8.89V | 13.6V | 44.1A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBG) |
|
3.0SMCJ30A-AQTVS DIODE 30VWM 48.4VC DO-214AB |
7,004 |
|
Datasheet |
DO-214AB, SMC | - | Bulk | Active | Zener | 1 | - | 30V | 33.3V | 48.4V | 61.9A | 3000W (3kW) | No | - | - | -50°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
|
3.0SMCJ24CA-AQTVS DIODE 24VWM 38.9VC DO-214AB |
4,376 |
|
Datasheet |
DO-214AB, SMC | - | Bulk | Active | Zener | - | 1 | 24V | 26.7V | 38.9V | 77.1A | 3000W (3kW) | No | - | - | -50°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
|
3.0SMCJ33A-AQTVS DIODE 33VWM 53.3VC DO-214AB |
6,867 |
|
Datasheet |
DO-214AB, SMC | - | Bulk | Active | Zener | 1 | - | 33V | 36.7V | 53.3V | 56.2A | 3000W (3kW) | No | - | - | -50°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
|
3.0SMCJ30CA-AQTVS DIODE 30VWM 48.4VC DO-214AB |
3,208 |
|
Datasheet |
DO-214AB, SMC | - | Bulk | Active | Zener | - | 1 | 30V | 33.3V | 48.4V | 61.9A | 3000W (3kW) | No | - | - | -50°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
|
3.0SMCJ12A-AQTVS DIODE 12VWM 19.9VC DO-214AB |
9,438 |
|
Datasheet |
DO-214AB, SMC | - | Bulk | Active | Zener | 1 | - | 12V | 13.3V | 19.9V | 150.7A | 3000W (3kW) | No | - | - | -50°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
|
3.0SMCJ40CA-AQTVS DIODE 40VWM 64.5VC DO-214AB |
3,566 |
|
Datasheet |
DO-214AB, SMC | - | Bulk | Active | Zener | - | 1 | 40V | 44.4V | 64.5V | 46.5A | 3000W (3kW) | No | - | - | -50°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
TVS Diodes Electronic Components
Frequently Asked Questions
Q1: What products are included in TVS Diodes?
This category includes related TVS Diodes subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for TVS Diodes components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for TVS Diodes and other electronic components.
