TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CPDH2V5UB-HFTVS DIODE 2.5VWM 11.5VC SOD523 |
7,464 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 2.5V (Max) | 4V | 11.5V | 9A | 104W | No | General Purpose | 145pF @ 1MHz (Max) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-523 |
|
|
CPDH24V0UB-HFTVS DIODE 24VWM 35VC SOD523 |
7,429 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 24V (Max) | 26V | 35V | 1A (8/20µs) | - | No | General Purpose | 50pF @ 1MHz (Max) | -55°C ~ 125°C (TA) | - | - | Surface Mount | SOD-523 |
|
|
CPDH12V0UB-HFTVS DIODE 12VWM 26VC SOD523 |
4,754 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 12V (Max) | 14.1V | 26V | 4A | 104W | No | General Purpose | 45pF @ 1MHz (Max) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-523 |
|

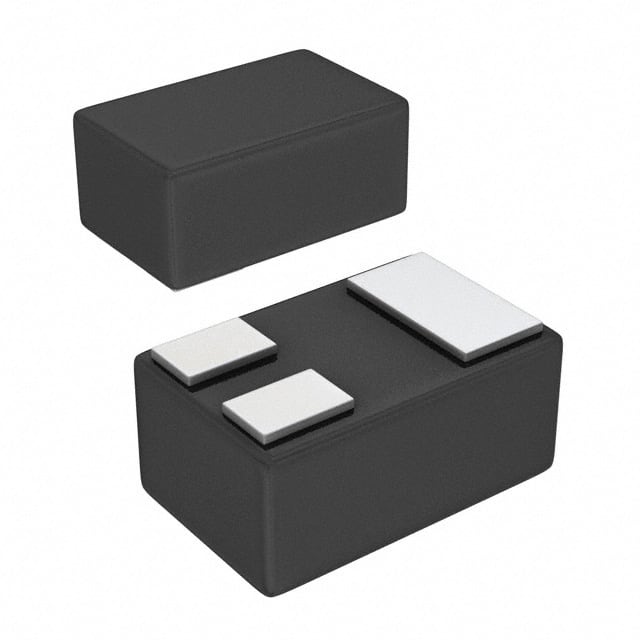

PE1605M2AQ_R1_00001VERY LOW CAPACITANCE ESD PROTECT |
7,484 |
|
- |
3-UFDFN | - | Tape & Reel (TR) | Active | Zener | 2 | - | 5V (Max) | 5.5V | 15V | 4A (8/20µs) | - | No | General Purpose | 0.3pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN1006-3 |
|
UBD8C18L01TVS ESD, SOD882, 18V,35V, REEL |
5,160 |
|
Datasheet |
SOD-882 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 18V (Max) | 19V | 35V | 2A (8/20µs) | - | No | General Purpose | 0.4pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-882 |
|
|
SHD8C4.5L01TVS ESD, SOD-882, 4.5V, 20V, REE |
9,345 |
|
Datasheet |
SOD-882 | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 4.5V (Max) | 4.6V | 20V (Typ) | 40A (8/20µs) | - | No | General Purpose | 80pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-882 |
|
|
SHD8A6.5L01TVS ESD, SOD-882, 6.5V, 18V, REE |
5,249 |
|
Datasheet |
SOD-882 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 6.5V (Max) | 6.8V | 25V | 35A (8/20µs) | - | No | General Purpose | 270pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-882 |
|
|
SHD8C03L01TVS ESD, SOD-882, 3.3V, 6V, REEL |
4,209 |
|
Datasheet |
SOD-882 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 4V | 20V | 40A (8/20µs) | - | No | General Purpose | 90pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-882 |
|
|
SRV05-4150W 6V UNIDIRECTIONAL 5V SOT-23 |
3,299 |
|
- |
- | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
UED26A03L05TVS ESD QFN-3020 3.3V 30V |
9,866 |
|
Datasheet |
10-UFDFN Exposed Pad | UED26A03L05 | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 3.3V (Max) | 3.8V | 25V | 30A (8/20µs) | - | Yes | Ethernet | 4pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN2626 |
|
CPDA3-5V0U-HFDIODE ESD 5VWM 25VC DFN2020-3L |
5,436 |
|
Datasheet |
3-PowerUDFN | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 5.3V | 25V (Typ) | 300A (8/20µs) | 7000W (7kW) | No | General Purpose | 2500pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN2020-3L |
|
SMBJ26CAHM3_A/HTVS DIODE 26VWM 42.1VC DO214AA |
3,581 |
|
Datasheet |
DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 26V | 28.9V | 42.1V | 14.3A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) |
|
P6KE130CA-E3/54TVS DIODE 111VWM 179VC DO204AC |
7,597 |
|
Datasheet |
DO-204AC, DO-15, Axial | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 111V | 124V | 179V | 3.4A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
|
P6KE170CA-E3/54TVS DIODE 145VWM 234VC DO204AC |
9,244 |
|
Datasheet |
DO-204AC, DO-15, Axial | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 145V | 162V | 234V | 2.6A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
|
P6KE56CA-E3/54TVS DIODE 47.8VWM 77VC DO204AC |
5,427 |
|
Datasheet |
DO-204AC, DO-15, Axial | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 47.8V | 53.2V | 77V | 7.8A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
|
P6KE91CA-E3/54TVS DIODE 77.8VWM 125VC DO204AC |
5,407 |
|
Datasheet |
DO-204AC, DO-15, Axial | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 77.8V | 86.5V | 125V | 4.8A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
;;2.jpg)
|
SMB10J8.0A-M3/52TVS DIODE 8VWM 13.6VC DO214AA |
8,752 |
|
Datasheet |
DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 8V | 8.89V | 13.6V | 73.5A | 1000W (1kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
SMBJ100A-M3/5BTVS DIODE 100VWM 162VC DO214AA |
9,541 |
|
Datasheet |
DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 100V | 111V | 162V | 3.7A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
SMBJ100CA-M3/5BTVS DIODE 100VWM 162VC DO214AA |
3,447 |
|
Datasheet |
DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 100V | 111V | 162V | 3.7A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
SMBJ110CA-M3/5BTVS DIODE 110VWM 177VC DO214AA |
2,614 |
|
Datasheet |
DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 110V | 122V | 177V | 3.4A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
TVS Diodes Electronic Components
Frequently Asked Questions
Q1: What products are included in TVS Diodes?
This category includes related TVS Diodes subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for TVS Diodes components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for TVS Diodes and other electronic components.
