TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1.5KE30ATVS D5.4X7.5 25.6V 1500W UNIDIR |
3,339 |
|
Datasheet |
DO-201AE, Axial | 1.5KE | Cut Tape (CT) | Active | Zener | 1 | - | 25.6V | 28.5V | 41.4V | 36A | 1500W (1.5kW) | Yes | General Purpose | 2900pF @ 1MHz | -55°C ~ 150°C | - | - | Through Hole | DO-201 |
|
SM15T18ATVS DIODE 15.3VWM 32.5VC SMC |
3,242 |
|
Datasheet |
DO-214AB, SMC | SM15T, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 1 | - | 15.3V | 17.1V | 32.5V | 308A (8/20µs) | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMC |
|
SMDJ26ATVS DIODE 26VWM 42.1VC DO214AB |
2,633 |
|
Datasheet |
DO-214AB, SMC | SMDJ | Tape & Reel (TR) | Active | Zener | 1 | - | 26V | 28.9V | 42.1V | 71.26A | 3000W (3kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AB (SMCJ) |
|
LCE15ATVS DIODE 15VWM 24.4VC DO201 |
10 |
|
Datasheet |
DO-201AA, DO-27, Axial | LCE | Tape & Reel (TR) | Active | Zener | 1 | - | 15V | 16.7V | 24.4V | 61A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-201 |
|
RCLAMP2451ZATFTTVS DIODE 24VWM 7VC SLP0603P2X3F |
116,707 |
|
Datasheet |
0201 (0603 Metric) | RailClamp® | Tape & Reel (TR) | Active | Zener | - | 1 | 24V (Max) | 25.5V | 7V | 3A (8/20µs) | 60W | No | General Purpose | 0.35pF @ 1MHz | -40°C ~ 85°C (TJ) | - | - | Surface Mount | SLP0603P2X3F |
|
|
RCLAMP1851ZATFTTVS DIODE 18V 7.5V SLP0603P2X3F |
8,471 |
|
Datasheet |
0201 (0603 Metric) | RailClamp® | Tape & Reel (TR) | Active | Zener | - | 1 | 18V (Max) | 18.5V | 7.5V | 3A (8/20µs) | - | No | General Purpose | 0.35pF @ 1MHz | -40°C ~ 85°C (TJ) | - | - | Surface Mount | SLP0603P2X3F |
|
SMC5K60A-M3/ITVS DIODE 60VWM 96.8VC DO214AB |
4,536 |
|
Datasheet |
DO-214AB, SMC | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 60V | 66.7V | 96.8V | 51.7A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
;;2.jpg)
|
1.5SMC250CATVS SMC 214V 1500W BIDIR |
2,281 |
|
Datasheet |
DO-214AB, SMC | 1.5SMC | Tape & Reel (TR) | Active | Zener | - | 1 | 214V | 237V | 344V | 4.4A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
SMAJ350ATVS DIODE 350VWM 567VC DO214AC |
6,217 |
|
Datasheet |
DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | 1 | - | 350V | 391V | 567V | 1.1A | 400W | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AC (SMAJ) |
|
|
SM15T39CA-E3/9ATTVS DIODE 33.3VWM 53.9VC DO214AB |
5,934 |
|
Datasheet |
DO-214AB, SMC | SM15T, TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 33.3V | 37.1V | 53.9V | 28A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
1.5SMC540CATVS DIODE 486VWM 740VC DO214AB |
3,809 |
|
Datasheet |
DO-214AB, SMC | 1.5SMC | Tape & Reel (TR) | Active | Zener | - | 1 | 486V | 513V | 740V | 2A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
SP3420-04UTGTVS DIODE 3.3VWM 6VC 10UDFN |
19,668 |
|
Datasheet |
10-UFDFN | - | Tape & Reel (TR) | Active | Zener | 4 | - | 3.3V (Max) | 6.5V | 6V | 6A (8/20µs) | - | No | General Purpose | 0.32pF @ 1MHz | -40°C ~ 125°C (TA) | Automotive | AEC-Q101 | Surface Mount | 10-µDFN (2.5x1.0) |
|
RCLAMP0532T.TCTTVS DIODE 5VWM 10VC SLP1610P4T |
9,384 |
|
Datasheet |
6-UFDFN | RailClamp® | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 2 | - | 5V (Max) | 6.5V | 10V | 10A (8/20µs) | 100W | No | General Purpose | 1pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SLP1610P4T |
|

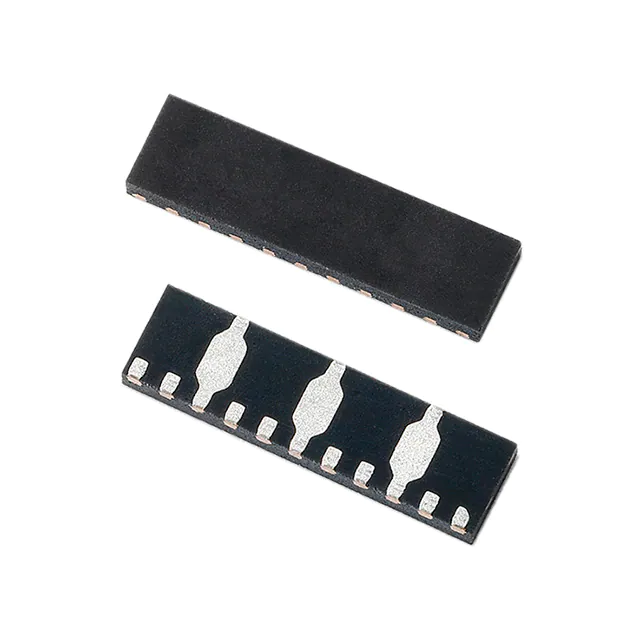

SP8008-08UTGTVS DIODE 5VWM 12.45VC 14UDFN |
9,260 |
|
Datasheet |
14-PowerUFDFN | SP8008, SPA® | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 8 | - | 5V (Max) | 6V | 12.45V (Typ) | 4A (8/20µs) | - | Yes | General Purpose | 0.3pF @ 3GHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 14-UDFN (5.5x1.5) |
|
SZ1.5SMC36AT3GTVS DIODE 30.8VWM 49.9VC SMC |
8,193 |
|
Datasheet |
DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 30.8V | 34.2V | 49.9V | 30A | 1500W (1.5kW) | No | - | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMC |
|
|
SZ1.5SMC56AT3GTVS DIODE 47.8VWM 77VC SMC |
7,076 |
|
Datasheet |
DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 47.8V | 53.2V | 77V | 19.5A | 1500W (1.5kW) | No | - | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMC |
|
1.5KE480CATVS DIODE 408VWM 658VC DO201 |
6,489 |
|
Datasheet |
DO-201AE, Axial | 1.5KE | Tape & Reel (TR) | Active | Zener | - | 2 | 408V | 456V | 658V | 2.3A | 1500W (1.5kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Through Hole | DO-201 |
|
|
SMCJ400ATVS DIODE 400VWM 648VC DO214AB |
5,732 |
|
Datasheet |
DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | 1 | - | 400V | 447V | 648V | 2.3A | 1500W (1.5kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
SZ1.5SMC39AT3GTVS DIODE 33.3VWM 53.9VC SMC |
5,672 |
|
Datasheet |
DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 33.3V | 37.1V | 53.9V | 28A | 1500W (1.5kW) | No | - | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMC |
|
|
1.5KE200ATVS D5.4X7.5 171V 1500W UNIDIR |
5,488 |
|
Datasheet |
DO-201AE, Axial | 1.5KE | Cut Tape (CT) | Active | Zener | 1 | - | 171V | 190V | 274V | 5.5A | 1500W (1.5kW) | Yes | General Purpose | 675pF @ 1MHz | -55°C ~ 150°C | - | - | Through Hole | DO-201 |
TVS Diodes Electronic Components
Explore TVS Diodes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
