TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1.5KE6V8CATVS DIODE 5.8VWM 13.4VC DO201 |
3,325 |
|
Datasheet |
DO-201AA, DO-27, Axial | 1.5KE, TRANSIL™ | Cut Tape (CT) | Active | Zener | - | 1 | 5.8V | 6.45V | 13.4V | 746A (8/20µs) | 1500W (1.5kW) | No | General Purpose | 4750pF @ 1MHz | - | - | - | Through Hole | DO-201 |
|
824001TVS DIODE 5VWM 9VC SOT23-6L |
3,250 |
|
Datasheet |
SOT-23-6 | WE-TVS | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6.2V | 9V (Typ) | 5A (8/20µs) | - | Yes | Ethernet | - | -55°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-6L |
|
1.5KE13CATVS D5.4X7.5 11.1V 1500W BIDIR |
3,098 |
|
Datasheet |
DO-201AE, Axial | 1.5KE | Tape & Reel (TR) | Active | Zener | - | 2 | 11.1V | 12.4V | 18.2V | 82A | 1500W (1.5kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Through Hole | DO-201 |
|
SZ1SMB60CAT3GTVS DIODE 60VWM 96.8VC SMB |
3,058 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | - | 1 | 60V | 66.7V | 96.8V | 6.2A | 600W | No | - | 150pF @ 1MHz | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMB |
|
1KSMB12CATVS DIODE 10.2VWM 16.7VC DO214AA |
2,720 |
|
Datasheet |
DO-214AA, SMB | 1KSMB | Tape & Reel (TR) | Active | Zener | - | 1 | 10.2V | 11.4V | 16.7V | 59.9A | 1000W (1kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
CDSOD323-T36SDIO TVS VWM 36V 500W UNIDIR SOD3 |
2,717 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 36V | 40V | 75V (Typ) | 5A (8/20µs) | 500W | No | General Purpose | 75pF @ 1MHz | -55°C ~ 150°C (TA) | - | - | Surface Mount | SOD-323 |
|
SMCJ13CATVS DIODE 13VWM 21.5VC DO214AB |
2,480 |
|
Datasheet |
DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | - | 1 | 13V | 14.4V | 21.5V | 69.8A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
SMCJ100CATVS DIODE 100VWM 162VC SMC |
15,770 |
|
Datasheet |
DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | - | 1 | 100V | 111V | 162V | 9.3A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
|
1.5KE350CATVS D5.4X7.5 300V 1500W BIDIR |
9,411 |
|
Datasheet |
DO-201AE, Axial | 1.5KE | Tape & Reel (TR) | Active | Zener | - | 2 | 300V | 332V | 482V | 3.1A | 1500W (1.5kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Through Hole | DO-201 |
|
SM6T42CAYTVS DIODE 36VWM 58.1VC SMB |
8,958 |
|
Datasheet |
DO-214AA, SMB | SM6TY, TRANSIL™ | Tape & Reel (TR) | Active | Zener | - | 1 | 36V | 40V | 58.1V | 10.3A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMB |
|
SMCJ5.0A-13-FTVS DIODE 5VWM 9.2VC SMC |
8,027 |
|
Datasheet |
DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V | 6.4V | 9.2V | 163A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMC |
|
SC1004U-ULC-04UTGTVS DIODE ARRAY 4CH 1004DFN |
4,440 |
|
Datasheet |
10-UFDFN | SPA® | Tape & Reel (TR) | Active | Zener | 4 | - | 7V (Max) | 7.5V | 11V (Typ) | 2A (8/20µs) | - | No | HDMI, USB | 0.2pF @ 3GHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 10-µDFN (2.5x1) |
|
TPSMC43CATVS DIODE 36.8VWM 59.3VC DO214AB |
4,069 |
|
Datasheet |
DO-214AB, SMC | TPSMC | Tape & Reel (TR) | Active | Zener | - | 1 | 36.8V | 40.9V | 59.3V | 25.6A | 1500W (1.5kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMCJ) |
|
1N6282A-E3/54TVS DIODE 25.6VWM 41.4VC 1.5KE |
3,657 |
|
Datasheet |
DO-201AA, DO-27, Axial | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 25.6V | 28.5V | 41.4V | 36.2A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | 1.5KE |
|
1.5KE11CATVS D5.4X7.5 9.4V 1500W BIDIR |
2,962 |
|
Datasheet |
DO-201AE, Axial | 1.5KE | Tape & Reel (TR) | Active | Zener | - | 2 | 9.4V | 10.5V | 15.6V | 96A | 1500W (1.5kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Through Hole | DO-201 |
|
1.5KE33CA-E3/54TVS DIODE 28.2VWM 45.7VC 1.5KE |
2,511 |
|
Datasheet |
DO-201AA, DO-27, Axial | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 28.2V | 31.4V | 45.7V | 32.8A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | 1.5KE |
|
|
1N6283A-E3/54TVS DIODE 28.2VWM 45.7VC 1.5KE |
2,098 |
|
Datasheet |
DO-201AA, DO-27, Axial | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 28.2V | 31.4V | 45.7V | 32.8A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | 1.5KE |
|

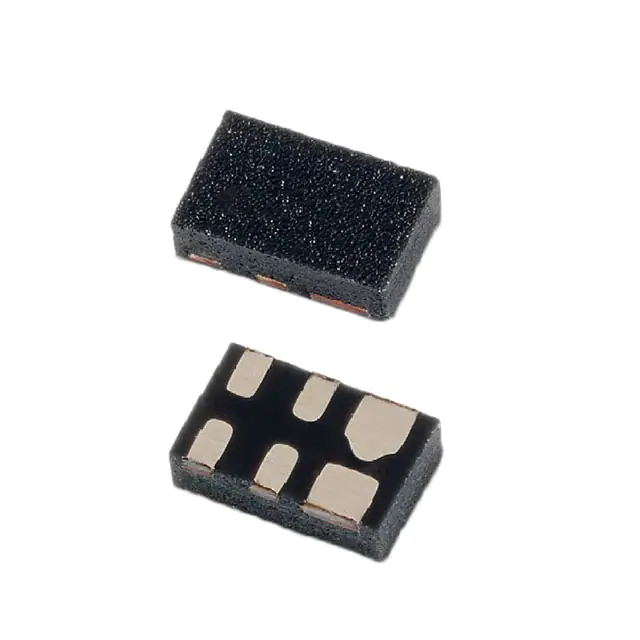

SP3401-02UTGTVS DIODE 3.3VWM 9VC 6UDFN |
1,828 |
|
Datasheet |
6-UFDFN | - | Tape & Reel (TR) | Active | Zener | 2 | - | 3.3V (Max) | 6.5V | 9V | 10A (8/20µs) | - | No | Ethernet, USB 3.1 | 0.8pF @ 1MHz | -40°C ~ 125°C (TA) | Automotive | AEC-Q101 | Surface Mount | 6-µDFN (1.6x1) |
|
|
1N6303A-E3/54TVS DIODE 171VWM 274VC 1.5KE |
1,746 |
|
Datasheet |
DO-201AA, DO-27, Axial | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 171V | 190V | 274V | 5.5A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | 1.5KE |
|
|
CDSOD323-T18SCTVS DIODE 18VWM 40VC SOD323 |
12,110 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 18V | 20V | 40V (Typ) | 9A (8/20µs) | 400W | No | General Purpose | 40pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-323 |
TVS Diodes Electronic Components
Explore TVS Diodes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
