TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMM4F26A-TRTVS DIODE 26VWM 53.5VC DO222-AA |
6,070 |
|
Datasheet |
DO-222AA | SMM4F, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 1 | - | 26V | 28.5V | 53.5V | 43A (8/20µs) | 400W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO222-AA |
|
SMCJ10ATVS DIODE 10VWM 17VC DO214AB |
5,837 |
|
Datasheet |
DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | 1 | - | 10V | 11.1V | 17V | 88.3A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
1.5KE43CATVS D5.4X7.5 36.8V 1500W BIDIR |
4,963 |
|
Datasheet |
DO-201AE, Axial | 1.5KE | Tape & Reel (TR) | Active | Zener | - | 2 | 36.8V | 40.9V | 59.3V | 25.3A | 1500W (1.5kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Through Hole | DO-201 |
|
PESD4USB3U-TTSXTVS DIODE 3.3VWM 3.5VC 10DFN |
4,881 |
|
Datasheet |
10-WFDFN | - | Tape & Reel (TR) | Active | Zener | 4 | - | 3.3V (Max) | 6V | 3.5V (Typ) | 7A (8/20µs) | - | No | HDMI, USB | 0.4pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | DFN2510D-10 |
|
SP4023-01FTG-CTVS DIODE 15VWM 40VC SOD323 |
4,764 |
|
Datasheet |
SC-76, SOD-323 | * | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 1 | - | 15V (Max) | 16V | 40V | 12A (8/20µs) | 450W | No | - | 1.3pF @ 1MHz | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
.jpg)
|
TPSMB22CATVS DIODE 18.8VWM 30.6VC DO214AA |
3,874 |
|
Datasheet |
DO-214AA, SMB | TPSMB | Tape & Reel (TR) | Active | Zener | - | 1 | 18.8V | 20.9V | 30.6V | 19.9A | 600W | No | - | - | -65°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBJ) |
;;2.jpg)
|
SMCJ78ATVS DIODE 78VWM 126VC DO214AB |
3,765 |
|
Datasheet |
DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | 1 | - | 78V | 86.7V | 126V | 11.9A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
SZP6SMB62AT3GTVS DIODE 53VWM 85VC SMB |
3,383 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 53V | 58.9V | 85V | 7.1A | 600W | No | - | 335pF @ 1MHz | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMB |
|
SZSMF6.0AT1GTVS DIODE 6VWM 10.3VC SOD123FL |
2,986 |
|
Datasheet |
SOD-123F | SZSMF | Tape & Reel (TR) | Active | Zener | 1 | - | 6V | 6.67V | 10.3V | 19.4A | 200W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123FL |
|
SMAJ12AQ-13-FTVS DIODE 12VWM 19.9VC SMA |
2,563 |
|
Datasheet |
DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | 1 | - | 12V | 13.3V | 19.9V | 20.1A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMA |
|
|
SZ1SMB30CAT3GTVS DIODE 30VWM 48.4VC SMB |
1,931 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | - | 1 | 30V | 33.3V | 48.4V | 12.4A | 600W | No | - | 290pF @ 1MHz | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMB |
|
SMAJ300CATVS DIODE 300VWM 486VC DO214AC |
72,548 |
|
Datasheet |
DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | - | 2 | 300V | 335V | 486V | 1.3A | 400W | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AC (SMAJ) |
|
|
1KSMB30CATVS DIODE 25.6VWM 41.4VC DO214AA |
34,917 |
|
Datasheet |
DO-214AA, SMB | 1KSMB | Tape & Reel (TR) | Active | Zener | - | 1 | 25.6V | 28.5V | 41.4V | 24.2A | 1000W (1kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
SZP6SMB15AT3GTVS DIODE 12.8VWM 21.2VC SMB |
33,745 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 12.8V | 14.3V | 21.2V | 28A | 600W | No | - | 1175pF @ 1MHz | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMB |
|
|
TPSMB36ATVS DIODE 30.8VWM 49.9VC DO214AA |
29,806 |
|
Datasheet |
DO-214AA, SMB | TPSMB | Tape & Reel (TR) | Active | Zener | 1 | - | 30.8V | 34.2V | 49.9V | 12.2A | 600W | No | - | - | -65°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBJ) |
|
|
TPSMB30CATVS DIODE 25.6VWM 41.4VC DO214AA |
16,922 |
|
Datasheet |
DO-214AA, SMB | TPSMB | Tape & Reel (TR) | Active | Zener | - | 1 | 25.6V | 28.5V | 41.4V | 14.7A | 600W | No | - | - | -65°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBJ) |
|
RCLAMP01511ZC.F1-LINE 1.5V 0.2PF 2.5A SLP0603P2 |
16,350 |
|
Datasheet |
0201 (0603 Metric) | RailClamp® | Tape & Reel (TR) | Active | Zener | - | 1 | 1.5V | - | - | - | - | No | USB | - | - | - | - | Surface Mount | 2-DFN (0.6x0.3) |
|

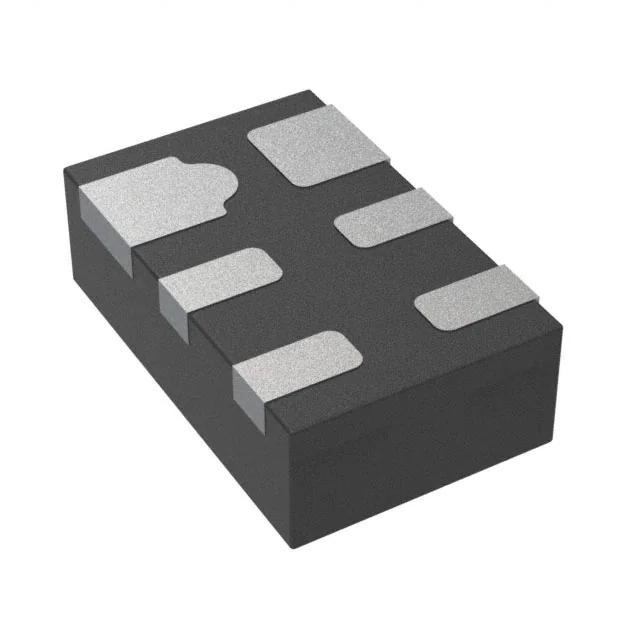

SP3400-02UTGTVS DIODE 5VWM 16VC 6UDFN |
8,036 |
|
Datasheet |
6-UFDFN | SP3400, SPA® | Tape & Reel (TR) | Active | Zener | 2 | - | 5V (Max) | 6.5V | 16V | 8A (8/20µs) | - | Yes | - | 1pF @ 3GHz | -40°C ~ 125°C (TA) | Automotive | - | Surface Mount | 6-µDFN (1.6x1) |
|
SMA6J33CATVS DIODE 33VWM 53.3VC DO214 TR |
7,267 |
|
Datasheet |
DO-214AC, SMA | SMA6J | Tape & Reel (TR) | Active | Zener | - | 1 | 33V | 36.7V | 53.3V | 11.8A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
SMA6J24CA-TRTVS DIODE 24VWM 44.3VC SMA |
6,519 |
|
Datasheet |
DO-214AC, SMA | SMA6J, TRANSIL™ | Tape & Reel (TR) | Active | Zener | - | 1 | 24V | 26.7V | 44.3V | 80A (8/20µs) | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
