TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AQ15C-01FTGTVS DIODE 15VWM 31VC SOD323 |
12,940 |
|
Datasheet |
SC-76, SOD-323 | AQ, SPA® | Tape & Reel (TR) | Active | Zener | - | 1 | 15V (Max) | - | 31V | 12A (8/20µs) | 450W | No | CAN | 75pF @ 1MHz (Max) | -40°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
|
SMAJ30CA-E3/5ATVS DIODE 30VWM 48.4VC DO214AC |
12,083 |
|
Datasheet |
DO-214AC, SMA | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 30V | 33.3V | 48.4V | 8.3A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
SMBJ440CATVS DIODE 440VWM 713VC DO214AA |
11,898 |
|
Datasheet |
DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | - | 1 | 440V | 492V | 713V | 1.1A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
P6KE43ATVS DO15 36.8V 600W UNIDIR |
11,690 |
|
Datasheet |
DO-204AC, DO-15, Axial | P6KE | Tape & Reel (TR) | Active | Zener | 1 | - | 36.8V | 40.9V | 59.3V | 10.1A | 600W | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Through Hole | DO-15 |
|
SMBJ18CA-TRTVS DIODE 18VWM 29.2VC SMB |
11,667 |
|
Datasheet |
DO-214AA, SMB | SMBJ, TRANSIL™ | Tape & Reel (TR) | Active | Zener | - | 1 | 18V | 20V | 29.2V | 21.5A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
CPDU12V0U-HFTVS DIODE 12VWM 24V 0603/SOD523F |
10,780 |
|
Datasheet |
2-SMD, No Lead | - | Tape & Reel (TR) | Active | Zener | 1 | - | 12V | 13.3V | 24V | 5A (8/20µs) | 120W | No | General Purpose | 60pF @ 1MHz | - | - | - | Surface Mount | 0603/SOD-523F |
|
|
P6KE27ATVS DIODE 23.1VWM 37.5VC DO204AC |
10,700 |
|
Datasheet |
DO-204AC, DO-15, Axial | P6KE | Tape & Reel (TR) | Active | Zener | 1 | - | 23.1V | 25.7V | 37.5V | 16.3A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
|
SMBJ48A-TRTVS DIODE 48VWM 77.4VC SMB |
10,582 |
|
Datasheet |
DO-214AA, SMB | SMBJ, TRANSIL™ | Tape & Reel (TR) | Active | Zener | 1 | - | 48V | 53.3V | 77.4V | 8.1A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
TPSMA6L24ATVS SMAF 24V 600W UNIDIR |
10,326 |
|
Datasheet |
DO-221AC, SMA Flat Leads | TPSMA6L | Tape & Reel (TR) | Active | Zener | 1 | - | 24V | 26.7V | 38.9V | 15.5A | 600W | No | - | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-221AC |
|
|
SMAJ12CA-E3/61TVS DIODE 12VWM 19.9VC DO214AC |
9,789 |
|
Datasheet |
DO-214AC, SMA | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 12V | 13.3V | 19.9V | 20.1A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
P6KE39ATVS DIODE 33.3VWM 53.9VC DO204AC |
9,550 |
|
Datasheet |
DO-204AC, DO-15, Axial | P6KE | Tape & Reel (TR) | Active | Zener | 1 | - | 33.3V | 37.1V | 53.9V | 11.3A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
AQ1250-01ETGTVS DIODE ESD UNI 5V 50A SOD882 |
9,448 |
|
Datasheet |
SOD-882 | AQ1250, SPA® | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 5.2V | 10V | 50A (8/20µs) | - | No | - | 118pF @ 1MHz | -40°C ~ 125°C | Automotive | AEC-Q101 | Surface Mount | SOD-882 |
|
|
P6KE62ATVS DO15 53V 600W UNIDIR |
8,879 |
|
Datasheet |
DO-204AC, DO-15, Axial | P6KE | Tape & Reel (TR) | Active | Zener | 1 | - | 53V | 58.9V | 85V | 7.1A | 600W | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Through Hole | DO-15 |
|
1.5SMC39CATVS DIODE 33.3VWM 53.9VC DO214AB |
8,856 |
|
Datasheet |
DO-214AB, SMC | 1.5SMC | Tape & Reel (TR) | Active | Zener | - | 1 | 33.3V | 37.1V | 53.9V | 28.2A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
SP3022-01ETG-NM5.3V 3A 20KV SOD882 BI-DIR TVS |
8,786 |
|
Datasheet |
SOD-882 | SP3022 | Tape & Reel (TR) | Active | Zener | - | 1 | 5.3V (Max) | 7V | 13V (Typ) | 3A (8/20µs) | - | No | Ethernet, HDMI, USB | 0.35pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOD-882 |
.jpg)
|
SZ1SMB36AT3GTVS DIODE 36VWM 58.1VC SMB |
8,559 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 36V | 40V | 58.1V | 10.3A | 600W | No | - | 470pF @ 1MHz | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMB |
|
P6SMB36CAHTVS DIODE 30.8VWM 49.9VC DO214AA |
8,545 |
|
Datasheet |
DO-214AA, SMB | P6SMB | Tape & Reel (TR) | Active | Zener | - | 1 | 30.8V | 34.2V | 49.9V | 12.6A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) |
|
|
SMBJ40CA-TRTVS DIODE 40VWM 64.5VC SMB |
7,985 |
|
Datasheet |
DO-214AA, SMB | SMBJ, TRANSIL™ | Tape & Reel (TR) | Active | Zener | - | 1 | 40V | 44.4V | 64.5V | 9.7A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
;;2.jpg)
|
P6KE18ATVS DIODE 15.3VWM 25.2VC DO204AC |
7,975 |
|
Datasheet |
DO-204AC, DO-15, Axial | P6KE | Tape & Reel (TR) | Active | Zener | 1 | - | 15.3V | 17.1V | 25.2V | 24.2A | 600W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|

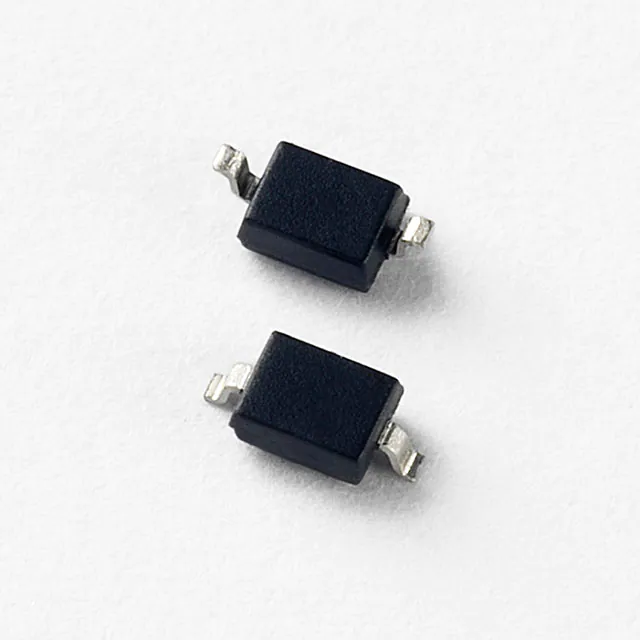

AQ3530-01FTGTVS DIODE 5VWM 15VC SOD323 |
7,652 |
|
Datasheet |
SC-76, SOD-323 | AQ3530, SPA® | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 7.5V | 15V | 2.5A (8/20µs) | - | No | HDMI, USB | 0.3pF @ 3GHz | -40°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
