TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ESDSLC12VD3B-TPESD,12V,SOD-323 |
5,269 |
|
- |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 12V (Max) | 13.3V | 28V | 19A (8/20µs) | 500W | No | General Purpose | 0.6pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-323 |
|

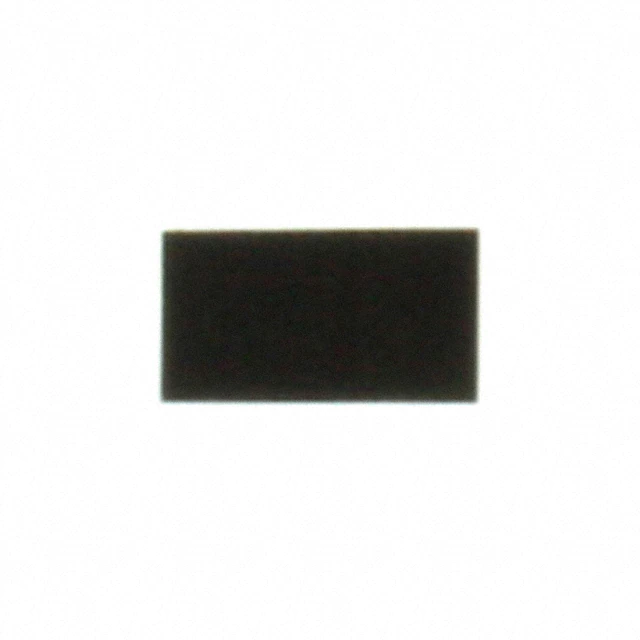

CPDU12V0UTVS DIODE 12VWM 24V 0603/SOD523F |
4,673 |
|
Datasheet |
2-SMD, No Lead | - | Tape & Reel (TR) | Active | Zener | 1 | - | 12V | 13.3V | 24V | 5A (8/20µs) | 120W | No | General Purpose | 60pF @ 1MHz | - | - | - | Surface Mount | 0603/SOD-523F |
|
|
BZD27B4V3P-HM3_A08ZENER DIODE SMF DO219AB |
5,560 |
|
Datasheet |
DO-219AB | BZD27B, eSMP® | Tape & Reel (TR) | Active | Zener | 1 | - | 1V (Max) | 4.21V | - | - | 150W | No | - | - | -65°C ~ 175°C (TA) | Automotive | AEC-Q101 | Surface Mount | DO-219AB (SMF) |
|
GSOT04C-G3-18TVS DIODE 4VWM 14.3VC SOT23 |
3,782 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Last Time Buy | Zener | 2 | - | 4V (Max) | 5V | 14.3V | 30A (8/20µs) | 429W | No | General Purpose | 310pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
GSOT08C-G3-18TVS DIODE 8VWM 19.2VC SOT23 |
8,228 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Last Time Buy | Zener | 2 | - | 8V (Max) | 9V | 19.2V | 18A (8/20µs) | 345W | No | General Purpose | 160pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
GSOT12C-G3-18TVS DIODE 12VWM 26VC SOT23 |
3,798 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Last Time Buy | Zener | 2 | - | 12V (Max) | 13.5V | 26V | 12A (8/20µs) | 312W | No | General Purpose | 115pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
GSOT15C-G3-18TVS DIODE 15VWM 28.8VC SOT23 |
8,304 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Last Time Buy | Zener | 2 | - | 15V (Max) | 16.5V | 28.8V | 8A (8/20µs) | 345W | No | General Purpose | 90pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
BZA420A,165TVS DIODE 20VWM 28VC 6TSOP |
4,127 |
|
Datasheet |
SC-74, SOT-457 | - | Tape & Reel (TR) | Active | Zener | 4 | - | 20V | - | 28V | - | 19.6W | No | General Purpose | 48pF @ 1MHz | -65°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 6-TSOP |
|
|
BZA420A,135TVS DIODE 20VWM 28VC 6TSOP |
9,725 |
|
Datasheet |
SC-74, SOT-457 | - | Tape & Reel (TR) | Active | Zener | 4 | - | 20V | - | 28V | - | 19.6W | No | General Purpose | 48pF @ 1MHz | -65°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 6-TSOP |
|
DESD1P0RFW-7TVS DIODE 70VWM 8VC SOT323 |
2,242 |
|
Datasheet |
SC-70, SOT-323 | - | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 1 | - | 70V (Max) | - | 8V | 15A (8/20µs) | - | No | General Purpose | 1pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-323 |
|
P4SMA20A_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
4,035 |
|
Datasheet |
DO-214AC, SMA | - | Tape & Reel (TR) | Not For New Designs | Zener | 1 | - | 17.1V | 19V | 27.7V | 15A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
P4SMA11A_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
3,450 |
|
Datasheet |
DO-214AC, SMA | - | Tape & Reel (TR) | Not For New Designs | Zener | 1 | - | 9.4V | 10.5V | 15.6V | 27A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
P4SMA130A_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
3,147 |
|
Datasheet |
DO-214AC, SMA | - | Tape & Reel (TR) | Not For New Designs | Zener | 1 | - | 111V | 124V | 179V | 2.3A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
P4SMA110A_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
3,385 |
|
Datasheet |
DO-214AC, SMA | - | Tape & Reel (TR) | Not For New Designs | Zener | 1 | - | 94V | 105V | 152V | 2.8A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
P4SMA100A_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
5,486 |
|
Datasheet |
DO-214AC, SMA | - | Tape & Reel (TR) | Not For New Designs | Zener | 1 | - | 85.5V | 95V | 137V | 3.1A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
P4SMA13A_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
7,273 |
|
Datasheet |
DO-214AC, SMA | - | Tape & Reel (TR) | Not For New Designs | Zener | 1 | - | 11.1V | 12.4V | 18.2V | 23A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
P4SMA120A_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
9,907 |
|
Datasheet |
DO-214AC, SMA | - | Tape & Reel (TR) | Not For New Designs | Zener | 1 | - | 102V | 114V | 165V | 2.5A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
P4SMA160A_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
9,716 |
|
Datasheet |
DO-214AC, SMA | - | Tape & Reel (TR) | Not For New Designs | Zener | 1 | - | 136V | 152V | 219V | 1.9A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
AOZ8905CITVS DIODE 5VWM 15.5VC SOT23-6 |
8,860 |
|
Datasheet |
SOT-23-6 | - | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6V | 15.5V | 1A (8/20µs) | - | Yes | HDMI | 0.7pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-6 |
|
|
ESDN4V5D3B-TPInterface |
5,154 |
|
Datasheet |
SC-76, SOD-323 | - | Bulk | Active | Zener | - | 1 | 4.5V (Max) | 4.7V | 15V | 135A (8/20µs) | 2000W (2kW) | No | General Purpose | 300pF @ 1MHz (Max) | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-323 |
TVS Diodes Electronic Components
Frequently Asked Questions
Q1: What products are included in TVS Diodes?
This category includes related TVS Diodes subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for TVS Diodes components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for TVS Diodes and other electronic components.
