TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

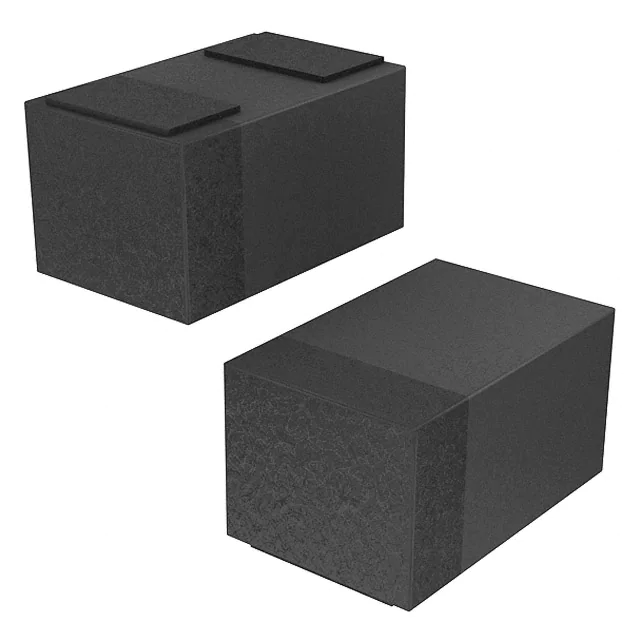

CPDQR3-5V0UPTVS DIODE 5VWM 12.5VC 0402-3P |
7,950 |
|
Datasheet |
0402 (1006 Metric) | - | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 1 | - | 5V | 6V | 12.5V | 2A (8/20µs) | 25W | No | General Purpose | 10pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 0402-3P |
|
DESD5V0L1BAQ-7DATALINE PROTECTION PP SOD323 T& |
6,436 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V | 6V | 12V | 15A | 230W | No | HDMI, USB | 46pF @ 100MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
|
D24V0F2U3WQ-7TVS DIODE 24VWM 50VC SOT323 |
6,332 |
|
Datasheet |
SC-70, SOT-323 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 24V (Max) | 27V | 50V | 2.5A (8/20µs) | - | Yes | HDMI, USB | 0.8pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-323 |
|
|
D12V0H2U3SO-7Dataline Protection PP SOT23 T&R |
2,350 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Bulk | Active | Zener | 2 | - | 12V (Max) | 14.2V | 25V | 12A (8/20µs) | 300W | No | Telecom | 78pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
VCAN16A2-03S-E3-18TVS DIODE 16VWM 28VC SOT23-3 |
6,754 |
|
- |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 16V (Max) | 17.1V | 28V | 5A (8/20µs) | 145W | No | CAN | 16.7pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
AOZ8336DI-031-CHANNEL BIDIRECTIONAL HIGH-SUR |
8,723 |
|
- |
2-UDFN | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 3.6V | 9.9V | 50A (8/20µs) | 80W | No | General Purpose | 100pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 2-DFN (1x0.6) |
|
ESD5V3L1U02LRHE6327XTSA1TVS DIODE 5.3VWM 10VC TSLP-2-17 |
5,351 |
|
Datasheet |
SOD-882 | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 5.3V (Max) | 6V | 10V (Typ) | 6A (8/20µs) | - | No | General Purpose | 1pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | PG-TSLP-2-17 |
|
|
CPDUC24VAS-HFDIODE ESD 24VWM 100W 0603/DFN160 |
6,588 |
|
Datasheet |
0603 (1608 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 24V (Max) | 26.2V | 40V | 2.5A (8/20µs) | 100W | No | General Purpose | 7pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 0603C/SOD-523F |
|
|
ESDHC18VP4-TPESD PROTECTION DEVICES,DFN2020-3 |
6,887 |
|
- |
3-UDFN Exposed Pad | - | Tape & Reel (TR) | Active | Zener | 1 | - | 18V (Max) | 19V | 38V | 150A (8/20µs) | 5000W (5kW) | No | General Purpose | 950pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | DFN2020-3L |
|
|
ESDHC12VP4-TPESD PROTECTION DEVICES,DFN2020-3 |
4,671 |
|
Datasheet |
3-UDFN Exposed Pad | - | Tape & Reel (TR) | Active | Zener | 1 | - | 12V (Max) | 12.8V | 24V | 200A (8/20µs) | 5000W (5kW) | No | General Purpose | 1080pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | DFN2020-3L |
|
|
P4SMA8.2A/TR13TVS DO214AC 7.02V 12.1V |
8,696 |
|
Datasheet |
DO-214AC, SMA | P4SMA | Tape & Reel (TR) | Active | Zener | 1 | - | 7.02V | 7.79V | 12.1V | 33.9A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
P4SMA82A/TR13TVS DO214AC 70.1V 113VE |
3,466 |
|
Datasheet |
DO-214AC, SMA | P4SMA | Tape & Reel (TR) | Active | Zener | 1 | - | 70.1V | 77.9V | 113V | 3.6A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
P4SMA82CA/TR13TVS DO214AC 70.1V 113VE |
5,244 |
|
Datasheet |
DO-214AC, SMA | P4SMA | Tape & Reel (TR) | Active | Zener | - | 1 | 70.1V | 77.9V | 113V | 3.6A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
P4SMA56A/TR13TVS DO214AC 47.8V 77V |
5,823 |
|
Datasheet |
DO-214AC, SMA | P4SMA | Tape & Reel (TR) | Active | Zener | 1 | - | 47.8V | 53.2V | 77V | 5.3A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
P4SMA56CA/TR13TVS DO214AC 47.8V 77V |
3,382 |
|
Datasheet |
DO-214AC, SMA | P4SMA | Tape & Reel (TR) | Active | Zener | - | 1 | 47.8V | 53.2V | 77V | 5.3A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
P4SMA62CA/TR13TVS DO214AC 53V 85V 1 |
5,443 |
|
Datasheet |
DO-214AC, SMA | P4SMA | Tape & Reel (TR) | Active | Zener | - | 1 | 53V | 58.9V | 85V | 4.8A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
P4SMA8.2CA/TR13TVS DO214AC 7.02V 12.1V |
7,070 |
|
Datasheet |
DO-214AC, SMA | P4SMA | Tape & Reel (TR) | Active | Zener | - | 1 | 7.02V | 7.79V | 12.1V | 33.9A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
P4SMA9.1CA/TR13TVS DO214AC 7.78V 13.4V |
9,020 |
|
Datasheet |
DO-214AC, SMA | P4SMA | Tape & Reel (TR) | Active | Zener | - | 1 | 7.78V | 8.65V | 13.4V | 30.6A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
P4SMA24CA/TR13TVS DO214AC 20.5V 33.2V |
5,889 |
|
Datasheet |
DO-214AC, SMA | P4SMA | Tape & Reel (TR) | Active | Zener | - | 1 | 20.5V | 22.8V | 33.2V | 12.3A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
P4SMA91CA/TR13TVS DO214AC 77.8V 125VE |
8,387 |
|
Datasheet |
DO-214AC, SMA | P4SMA | Tape & Reel (TR) | Active | Zener | - | 1 | 77.8V | 86.5V | 125V | 3.3A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
TVS Diodes Electronic Components
Frequently Asked Questions
Q1: What products are included in TVS Diodes?
This category includes related TVS Diodes subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for TVS Diodes components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for TVS Diodes and other electronic components.
