TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMBJ22ATVS DIODE 22VWM 35.5VC SMB |
25,653 |
|
Datasheet |
DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | 1 | - | 22V | 24.4V | 35.5V | 16.9A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
SZESD9X5.0ST5GTVS DIODE 5VWM 12.3VC SOD923 |
24,471 |
|
Datasheet |
SOD-923 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 6.2V | 12.3V | 8.7A (8/20µs) | 107W | No | - | 65pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-923 |
.jpg)
|
PESD5V0X1UB,135TVS DIODE 5VWM 8VC SOD523 |
23,775 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 5.8V | 8V (Typ) | 1.5A (8/20µs) | - | No | - | 0.95pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-523 |
|
PTVS45VS1UR,115TVS DIODE 45VWM 72.7VC SOD123W |
23,280 |
|
Datasheet |
SOD-123W | - | Tape & Reel (TR) | Active | Zener | 1 | - | 45V | 50V | 72.7V | 5.5A | 400W | No | - | - | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-123W |
|

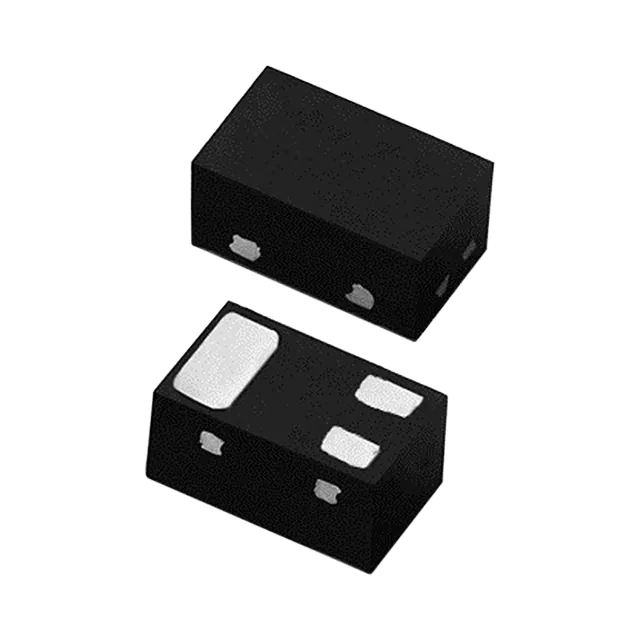

SP3222-02ETGTVS DIODE 3.3VWM 10VC SOD883 |
22,709 |
|
Datasheet |
3-UFDFN | SP3222, SPA® | Tape & Reel (TR) | Active | Zener | 2 | - | 3.3V (Max) | 6.1V | 10V (Typ) | 3A | 30W | Yes | USB | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOD-883 |
|
SMBJ45ATVS DIODE 45VWM 72.7VC SMB |
22,682 |
|
Datasheet |
DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | 1 | - | 45V | 50V | 72.7V | 8.3A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
TESDU12V RGG0603, 12V, 25W, 12PF, ESD PROTEC |
21,679 |
|
Datasheet |
0603 (1608 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 12V | 13V | 33V | 5A | 25W | No | USB | 12pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 0603 |
|
SMBJ30AQ-13-FTVS DIODE 30VWM 48.4VC SMB |
21,540 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 30V | 33.3V | 48.4V | 12.4A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMB |
|
PESD5V0L5UF,115TVS DIODE 5VWM 12VC 6XSON |
21,524 |
|
Datasheet |
6-XFDFN | - | Tape & Reel (TR) | Active | Zener | 5 | - | 5V (Max) | 6.4V | 12V | 2.5A (8/20µs) | 25W | No | General Purpose | 16pF @ 1MHz | -65°C ~ 150°C (TA) | Automotive | AEC-Q100 | Surface Mount | 6-XSON, SOT886 (1.45x1) |
|
SMS15T1GTVS DIODE 15VWM 29VC SC74 |
20,789 |
|
Datasheet |
SC-74, SOT-457 | - | Tape & Reel (TR) | Active | Zener | 4 | - | 15V | 16.7V | 29V | 12A (8/20µs) | 350W | No | General Purpose | 60pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SC-74 |
|
SMBJ15ATVS DIODE 15VWM 24.4VC SMB |
20,544 |
|
Datasheet |
DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | 1 | - | 15V | 16.7V | 24.4V | 24.6A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
SMAJ24A-QTVS DIODE 24VWM 38.9VC SMA |
20,409 |
|
Datasheet |
DO-214AC, SMA | SMAJ-Q | Tape & Reel (TR) | Active | Zener | 1 | - | 24V | 26.7V | 38.9V | 10.3A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
|
SMAJ18CATVS DIODE 18VWM 29.2VC SMA |
20,186 |
|
Datasheet |
DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | - | 1 | 18V | 20V | 29.2V | 13.7A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
SMBJ7.5ATVS DIODE 7.5VWM 12.9VC SMB |
19,631 |
|
Datasheet |
DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | 1 | - | 7.5V | 8.33V | 12.9V | 46.6A | 600W | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AA (SMBJ) |
|
PESD3V3X4UHMYLTVS DIODE 3.3VWM 4.5VC DFN1308-6 |
18,548 |
|
Datasheet |
6-XFDFN | - | Tape & Reel (TR) | Active | Zener | 4 | - | 3.3V (Max) | 5V | 4.5V | 11A (8/20µs) | - | No | Telecom | 0.8pF @ 1MHz | -55°C ~ 150°C (TA) | - | - | Surface Mount | DFN1308-6 |
|
|
SMAJ40CA-QTVS DIODE 40VWM 64.5VC SMA |
18,402 |
|
Datasheet |
DO-214AC, SMA | SMAJ-Q | Tape & Reel (TR) | Active | Zener | - | 1 | 40V | 44.4V | 64.5V | 6.2A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
SP1105S-01UTGTVS DIODE 5VWM 9.2VC 2DFN |
18,001 |
|
Datasheet |
0603 (1610 Metric) | SPA® | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | - | 9.2V (Typ) | 80A (8/20µs) | - | No | General Purpose | 630pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 2-DFN (1.6x1) |
|
|
PTVS17VS1UR,115TVS DIODE 17VWM 27.6VC SOD123W |
17,958 |
|
Datasheet |
SOD-123W | - | Tape & Reel (TR) | Active | Zener | 1 | - | 17V | 18.9V | 27.6V | 14.5A | 400W | No | - | - | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-123W |
|
|
SMBJ48ATVS DIODE 48VWM 77.4VC SMB |
17,837 |
|
Datasheet |
DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | 1 | - | 48V | 53.3V | 77.4V | 7.8A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
|
P4SMA30CATVS DIODE 25.6VWM 41.4VC DO214AC |
17,249 |
|
Datasheet |
DO-214AC, SMA | - | Tape & Reel (TR) | Active | Zener | - | 1 | 25.6V | 28.5V | 41.4V | 9.9A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
