TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|

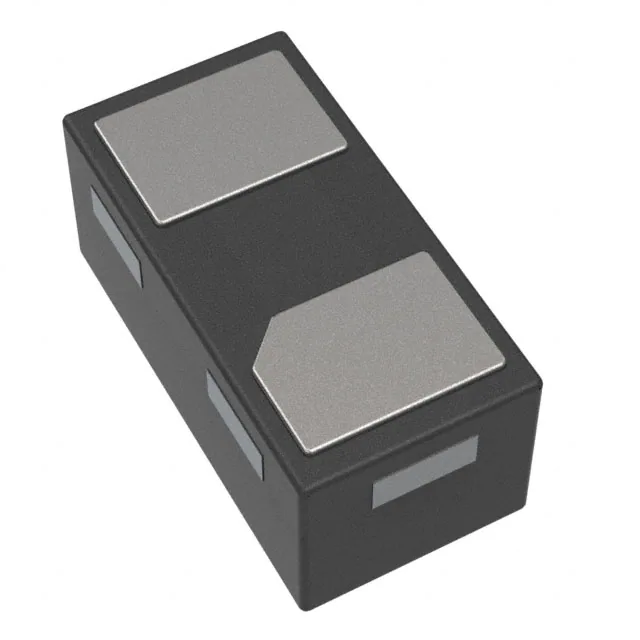

SP0201U-ULC-01UTGTVS DIODE 7VWM 9.2VC 0201 |
7,683 |
|
Datasheet |
0201 (0603 Metric) | SPA® | Tape & Reel (TR) | Active | Zener | 1 | - | 7V (Max) | 9V (Typ) | 9.2V (Typ) | 2A (8/20µs) | - | No | General Purpose | 0.2pF @ 1MHz | -30°C ~ 85°C (TA) | Automotive | AEC-Q101 | Surface Mount | 0201 |
|
PESD2ETH100-TRTVS DIODE 24VWM TO236AB |
7,654 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 24V (Max) | - | - | 3.2A (8/20µs) | - | No | - | 2.5pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | TO-236AB |
|
SMF58ATVS SOD123FL 58V 200W UNIDIR |
7,381 |
|
Datasheet |
SOD-123F | SMF | Tape & Reel (TR) | Active | Zener | 1 | - | 58V | 64.4V | 93.6V | 2.1A | 200W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F |
|
1.5SMC68CATVS DIODE 58.1VWM 92VC DO214AB |
6,723 |
|
Datasheet |
DO-214AB, SMC | 1.5SMC | Tape & Reel (TR) | Active | Zener | - | 1 | 58.1V | 64.6V | 92V | 16.5A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
SP1112-01UTGTVS DIODE 12VWM 26.5VC 2DFN |
6,491 |
|
Datasheet |
0603 (1610 Metric) | SPA® | Tape & Reel (TR) | Active | Zener | 1 | - | 12V (Max) | - | 26.5V (Typ) | 40A (8/20µs) | - | No | General Purpose | 230pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 2-DFN (1.6x1) |
|
SMAJ7.5ATVS DIODE 7.5VWM 12.9VC DO214AC |
6,273 |
|
Datasheet |
DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | 1 | - | 7.5V | 8.33V | 12.9V | 31A | 400W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
PTVS30VZ1UPAZPTVS30VZ1UPA/SOT1061/HUSON3 |
6,000 |
|
Datasheet |
3-PowerUDFN | - | Tape & Reel (TR) | Active | Zener | 1 | - | 30V (Max) | 31V | 37V | 150A (8/20µs) | - | No | General Purpose | 540pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 3-HUSON |
;;2.jpg)
|
SMBJ24CA-E3/52TVS DIODE 24VWM 38.9VC DO214AA |
5,493 |
|
Datasheet |
DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 24V | 26.7V | 38.9V | 15.4A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
SMBJ7.5ATVS DIODE 7.5VWM 12.9VC DO214AA |
5,378 |
|
Datasheet |
DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | 1 | - | 7.5V | 8.33V | 12.9V | 46.6A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
SA5.0A-TPTVS DIODE 5VWM 9.2VC DO15 |
5,096 |
|
Datasheet |
DO-204AC, DO-15, Axial | - | Tape & Reel (TR) | Last Time Buy | Zener | 1 | - | 5V | 6.4V | 9.2V | 55.4A | 500W | No | General Purpose | - | -55°C ~ 175°C (TA) | - | - | Through Hole | DO-15 |
|
|
SMF7.5ATVS SOD123FL 7.5V 200W UNIDIR |
4,634 |
|
Datasheet |
SOD-123F | SMF | Tape & Reel (TR) | Active | Zener | 1 | - | 7.5V | 8.33V | 12.9V | 15.5A | 200W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F |
|
SMF30A-TPTVS DIODE 30VWM 48.4VC SOD123FL |
4,516 |
|
Datasheet |
SOD-123F | - | Tape & Reel (TR) | Active | Zener | 1 | - | 30V | 33.3V | 48.4V | 4.1A | 200W | No | General Purpose | - | -65°C ~ 175°C (TA) | - | - | Surface Mount | SOD-123FL |
|
SZESD7361XV2T1GTVS DIODE 5VWM 34VC SOD523 |
4,218 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V | 16.5V | 34V | 16A (100ns) | - | No | - | 0.55pF @ 1MHz | -55°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-523 |
|
|
SMBJ130ATVS DIODE 130VWM 209VC DO214AA |
4,006 |
|
Datasheet |
DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | 1 | - | 130V | 144V | 209V | 2.9A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
SMF7.0ATVS SOD123FL 7V 200W UNIDIR |
3,993 |
|
Datasheet |
SOD-123F | SMF | Tape & Reel (TR) | Active | Zener | 1 | - | 7V | 7.78V | 12V | 16.7A | 200W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F |
|
SMF8.0ATVS SOD123FL 80V 200W UNIDIR |
3,252 |
|
Datasheet |
SOD-123F | SMF | Tape & Reel (TR) | Active | Zener | 1 | - | 8V | 8.89V | 13.6V | 14.7A | 200W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F |
|
|
PESD24VS2UT,215TVS DIODE 24VWM 70VC TO236AB |
3,104 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 24V (Max) | 26.5V | 70V | 3A (8/20µs) | 160W | No | General Purpose | 23pF @ 1MHz | -65°C ~ 150°C (TA) | Automotive | AEC-Q100 | Surface Mount | TO-236AB |
|
|
SMF60ATVS SOD123FL 60V 200W UNIDIR |
2,410 |
|
Datasheet |
SOD-123F | SMF | Tape & Reel (TR) | Active | Zener | 1 | - | 60V | 66.7V | 96.8V | 1.8A | 200W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F |
|
SM6T6V8CATVS DIODE 5.8VWM 10.5VC SMB |
2,092 |
|
Datasheet |
DO-214AA, SMB | SM6T, TRANSIL™ | Tape & Reel (TR) | Active | Zener | - | 1 | 5.8V | 6.45V | 10.5V | 57A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
.jpg)
|
SMBJ78CATVS DIODE 78VWM 126VC DO214AA |
1,090 |
|
Datasheet |
DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Active | Zener | - | 1 | 78V | 86.7V | 126V | 4.8A | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
TVS Diodes Electronic Components
Explore TVS Diodes electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
