Surge Protection Devices (SPDs)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Form | Number of Poles | Voltage - Continuous Operating (Max) (MCOV) | Current - Discharge (Nom) (8/20µS) | Current - Discharge (Max) (8/20µS) | Operating Temperature | Voltage - Protection Rating (VPR) | Voltage - Protection Level (VP) (2416) | Operating Temperature | Features | Mounting Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DS72US-230S/GSPD TYPE 1 320VAC MCOV 1 POLE |
7,768 |
|
- |
- | Active | Type 1 | Base + Module | 1 | 320VAC | 20 kA | 75 kA | 200 kA | 1.2 kV | - | -40°C ~ 85°C | - | DIN Rail | - | |
|
DS72US-120S/GSPD TYPE 1 255VAC MCOV 1 POLE |
7,126 |
|
- |
- | Active | Type 1 | Base + Module | 1 | 255VAC | - | - | 200 kA | 1.5 kV | - | -40°C ~ 85°C | - | DIN Rail | - | |
|
2736460000SPD TYPE 2 305VAC MCOV 2 POLE |
2,327 |
|
Datasheet |
- | Box | Active | Type 2 | Base + Module | 2 | 305VAC | 20 kA | 50 kA | 200 kA | 1 kV | - | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | CE, cULus, VDE |
|
|
SDSA3650DSPD 1.02KV MCOV 1 POLE |
4,259 |
|
Datasheet |
- | Box | Active | - | Module Only | 1 | 1.02kV | 10 kA | 40 kA | 200 kA | - | - | 65°C | - | Panel Mount | - |
|
|
SDSA2040DSPD 180V MCOV 1 POLE |
4,314 |
|
Datasheet |
- | Box | Active | - | Module Only | 1 | 180V | 10 kA | 40 kA | 200 kA | - | - | 65°C | - | Panel Mount | - |
|
|
SDSA3650SPD 510V MCOV 1 POLE |
6,791 |
|
Datasheet |
- | Box | Active | - | Module Only | 1 | 510V | 10 kA | 40 kA | 200 kA | - | - | 65°C | - | Panel Mount | - |
|
|
SDSA4040DSPD 180V MCOV 1 POLE |
3,017 |
|
Datasheet |
- | Box | Active | - | Module Only | 1 | 180V | 10 kA | 40 kA | 200 kA | - | - | 65°C | - | Panel Mount | - |
|
|
SDSA4040SPD TYPE 1 840V MCOV 1 POLE |
8,711 |
|
Datasheet |
- | Box | Active | Type 1 | Module Only | 1 | 840V | 10 kA | 40 kA | 200 kA | 2.5 kV | - | -35°C ~ 80°C | - | Panel Mount | - |
|
|
SDSA3650ESPD 510VAC MCOV 1 POLE |
8,505 |
|
Datasheet |
- | Box | Active | - | Module Only | 1 | 510VAC | 10 kA | - | 200 kA | - | - | - | - | Chassis Mount | - |
|
|
SDSA2040SPD 180V MCOV 1 POLE |
6,392 |
|
Datasheet |
- | Box | Active | - | Module Only | 1 | 180V | 10 kA | 40 kA | 200 kA | - | - | 65°C | - | Panel Mount | - |
|
|
AGDN60030RSPD TYPE 1 750VAC MCOV 3 POLE |
4,444 |
|
Datasheet |
- | Bulk | Active | Type 1 | Base + Module | 3 | 750VAC | 20 kA | - | 200 kA | 2.5 kV | - | -40°C ~ 85°C | Visual Life Indicator | DIN Rail | UL |
|
1250-3S-230SPD TYPE 2/TYPE 4 275VAC MCOV |
9,044 |
|
Datasheet |
1250 | Bulk | Active | Type 2, Type 4 | Base + Module | 3 | 275VAC | 20 kA | 50 kA | 100 kA | 1 kV | 1.25 kV | -50°C ~ 85°C | Remote Signaling Contacts, Thermally Protected | DIN Rail | CE, CSA, UR |
|
1250-3S-400SPD TYPE 2/TYPE 4 420VAC MCOV |
5,891 |
|
Datasheet |
1250 | Bulk | Active | Type 2, Type 4 | Base + Module | 3 | 420VAC | 20 kA | 50 kA | 100 kA | 1.2 kV | 1.8 kV | -50°C ~ 85°C | Remote Signaling Contacts, Thermally Protected | DIN Rail | CE, CSA, UR |
|

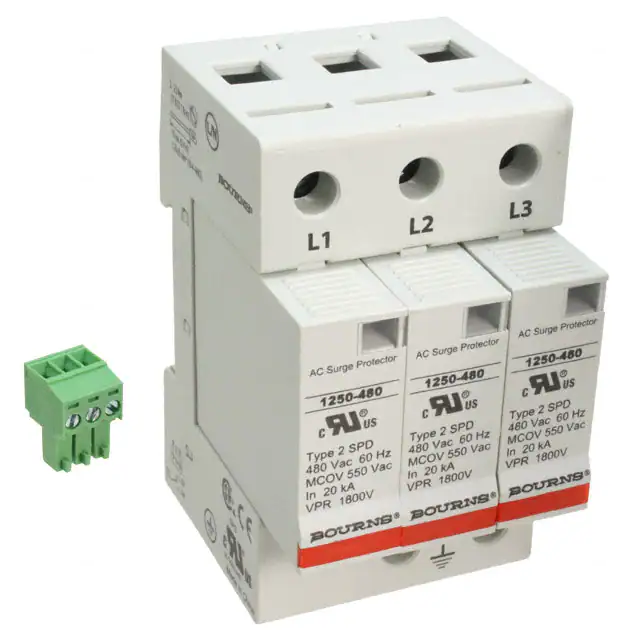

1250-3S-480SPD TYPE 2/TYPE 4 550VAC MCOV |
8,322 |
|
Datasheet |
1250 | Bulk | Active | Type 2, Type 4 | Base + Module | 3 | 550VAC | 20 kA | 50 kA | 100 kA | 1.8 kV | 2.5 kV | -50°C ~ 85°C | Remote Signaling Contacts, Thermally Protected | DIN Rail | CE, CSA, UR |
|
1250-3S-120SPD TYPE 2/TYPE 4 150VAC MCOV |
5,939 |
|
Datasheet |
1250 | Bulk | Active | Type 2, Type 4 | Base + Module | 3 | 150VAC | 20 kA | 50 kA | 100 kA | 700 V | 900 V | -50°C ~ 85°C | Remote Signaling Contacts, Thermally Protected | DIN Rail | CE, CSA, UR |
|
|
BSPD24DINGSPD 23.3VAC/33VDC MCOV 4 POLE |
2,728 |
|
Datasheet |
BSPD | Bulk | Active | - | Base + Module | 4 | 23.3VAC, 33VDC | 10 kA | 20 kA | - | - | - | -40°C ~ 80°C | - | DIN Rail | ATEX, CE, CSAus, UL |
|
|
SPD2-300-4P0SPD TYP 1/TYP 2 300V MCOV 4 POLE |
9,825 |
|
Datasheet |
SPD2 4+0 | Bulk | Active | Type 1, Type 2 | Base + Module | 4 | 300V | 20 kA | 50 kA | 150 kA | 900 V | 1.5 kV | -40°C ~ 80°C | Thermally Protected, Visual Life Indicator | DIN Rail | CE, cURus, UL, VDE |
|

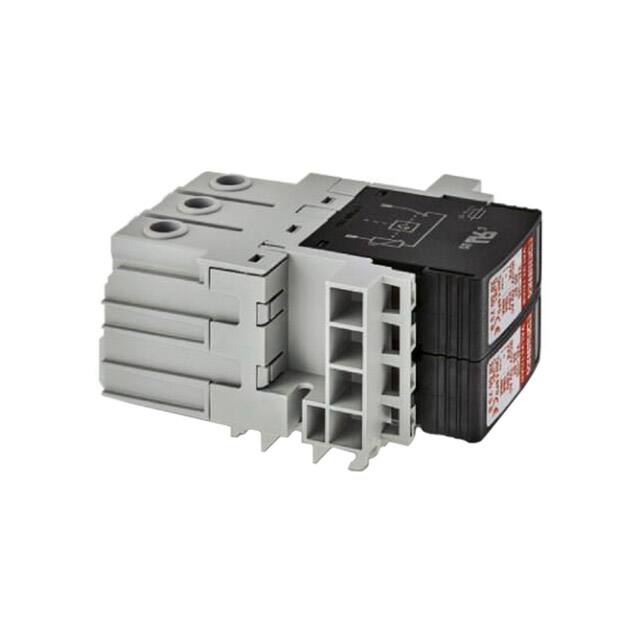

2907043SPD TYP2 75VAC/100VDC MCOV 1POLE |
6,939 |
|
Datasheet |
VAL-US | Bulk | Obsolete | Type 2 | Base + Module | 1 | 75VAC, 100VDC | 15 kA | 40 kA | 25 kA | - | 550 V | -40°C ~ 80°C | - | Panel Mount | cUL, UL |
|
1351420000SPD TYPE 2 1.2KVAC MCOV 1 POLE |
3,221 |
|
Datasheet |
VPU | Box | Obsolete | Type 2 | Base + Module | 1 | 1.2kVAC | - | 40 kA | - | - | - | - | Remote Signaling Contacts | DIN Rail | - |
|
|
16006.2SPD TYPE 2 280VAC MCOV 4 POLE |
9,288 |
|
Datasheet |
CP VH | Box | Active | Type 2 | Base + Module | 4 | 280VAC | 80 kA | 150 kA | - | 400 V | 1.25 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
Surge Protection Devices (SPDs) Electronic Components
Explore Surge Protection Devices (SPDs) electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
