Surge Protection Devices (SPDs)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Form | Number of Poles | Voltage - Continuous Operating (Max) (MCOV) | Current - Discharge (Nom) (8/20µS) | Current - Discharge (Max) (8/20µS) | Operating Temperature | Voltage - Protection Rating (VPR) | Voltage - Protection Level (VP) (2416) | Operating Temperature | Features | Mounting Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DS220S-12DCSPD TYPE 2 24VDC MCOV 1 POLE |
8,660 |
|
- |
- | Active | Type 2 | Base + Module | 1 | 24VDC | 10 kA | 20 kA | - | - | - | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | CE, UL | |
|
1250-2S-400SPD TYPE 2/TYPE 4 420VAC MCOV |
6,471 |
|
Datasheet |
1250 | Bulk | Active | Type 2, Type 4 | Base + Module | 2 | 420VAC | 20 kA | 50 kA | 100 kA | 1.2 kV | 1.8 kV | -50°C ~ 85°C | Remote Signaling Contacts, Thermally Protected | DIN Rail | CE, CSA, UR |
|
1270-3S-690SPD TYPE 1/TYPE 2 750VAC MCOV |
4,375 |
|
Datasheet |
1270 | Box | Active | Type 1, Type 2 | Base + Module | 3 | 750VAC | 25 kA | 65 kA | 50 kA | - | 2.8 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
16010.2SPD TYPE 3 250VAC MCOV 1 POLE |
8,462 |
|
- |
- | Box | Active | Type 3 | Base + Module | 1 | 250VAC | 10 kA | 30 kA | - | - | 1.5 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
2736470000SPD TYPE 2 300VAC MCOV 1 POLE |
3,185 |
|
Datasheet |
- | Box | Active | Type 2 | Base + Module | 1 | 300VAC | 20 kA | 50 kA | 200 kA | 900 V | - | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | CE, cULus, VDE |
|
1530-1DSPD 1 POLE |
4,541 |
|
Datasheet |
1530-1 | Bulk | Active | - | Module Only | 1 | - | - | - | - | - | - | - | - | DIN Rail | - |
|
|
2800782SPD 180VDC MCOV 1 POLE |
3,148 |
|
Datasheet |
PT | Bulk | Active | - | Module Only | 1 | 180VDC | - | - | - | - | - | -40°C ~ 85°C | - | Base Mount | - |
|
|
1250A-2S-480SPD TYP 2/TYP 4 550V MCOV 2 POLE |
8,117 |
|
Datasheet |
1250A | Box | Active | Type 2, Type 4 | Base + Module | 2 | 550V | 20 kA | 50 kA | 200 kA | 1.8 kV | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
1260-2S-480SPD 600VAC MCOV 2 POLE |
5,145 |
|
Datasheet |
1260 | Box | Active | - | Base + Module | 2 | 600VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
1260-2S-690SPD 750VAC MCOV 2 POLE |
7,372 |
|
Datasheet |
1260 | Box | Active | - | Base + Module | 2 | 750VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
BSPM1A150D200LVRSPD TYPE 4 120VAC/200VDC MCOV |
3,425 |
|
Datasheet |
BSPM | Bulk | Active | Type 4 | Module Only | 1 | 120VAC, 200VDC | 15 kA | 40 kA | - | - | - | - | - | DIN Rail | CE, CSA, cURus, KEMA |
|

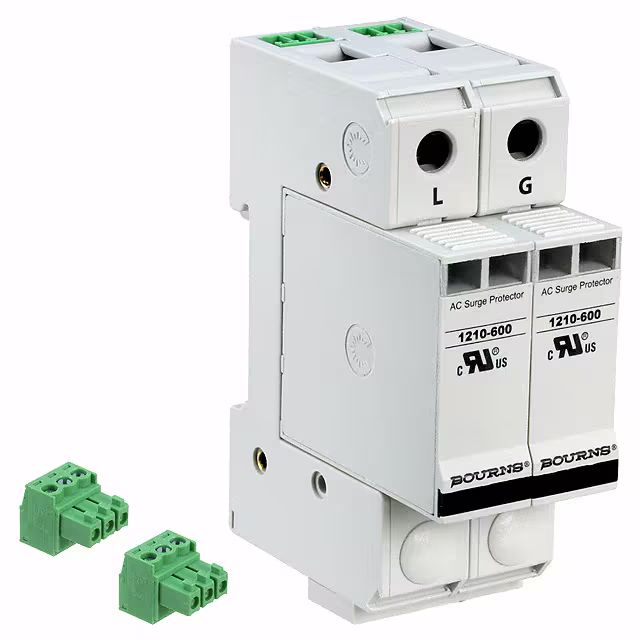

1210-1S-600SPD TYPE 2/TYPE 4 840VAC MCOV |
9,011 |
|
Datasheet |
1210 | Bulk | Active | Type 2, Type 4 | Module Only | 1 | 840VAC | 20 kA | 100 kA | 100 kA | 3 kV | 4 kV | -50°C ~ 85°C | Remote Signaling Contacts, Thermally Protected | DIN Rail | CE, CSA, UL |
|
|
1430-PV-300-YSPD TYPE 1/TYPE 2 350VDC MCOV |
8,782 |
|
Datasheet |
1430 | Box | Active | Type 1, Type 2 | Base + Module | 1 | 350VDC | 25 kA | 80 kA | 25 kA | - | 1.5 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
1430-PV-400-YSPD TYPE 1/TYPE 2 460VDC MCOV |
6,875 |
|
Datasheet |
1430 | Box | Active | Type 1, Type 2 | Base + Module | 1 | 460VDC | 25 kA | 80 kA | 25 kA | - | 2 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
1430-PV-200-YSPD TYPE 1/TYPE 2 225VDC MCOV |
6,032 |
|
Datasheet |
1430 | Box | Active | Type 1, Type 2 | Base + Module | 1 | 225VDC | 25 kA | 80 kA | 25 kA | - | 255 V | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
1430-PV-600-YSPD TYPE 1/TYPE 2 700VDC MCOV |
7,534 |
|
Datasheet |
1430 | Box | Active | Type 1, Type 2 | Base + Module | 1 | 700VDC | 25 kA | 80 kA | 25 kA | - | 2.5 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
1430-PV-100-YSPD TYPE 1/TYPE 2 170VDC MCOV |
9,576 |
|
Datasheet |
1430 | Box | Active | Type 1, Type 2 | Base + Module | 1 | 170VDC | 25 kA | 80 kA | 25 kA | - | 1 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
2801162SPD TYPE 1/TYPE 2 1.17KVDC MCOV |
7,277 |
|
Datasheet |
VAL-MS | Bulk | Active | Type 1, Type 2 | Module Only | 1 | 1.17kVDC | 15 kA | 40 kA | 50 kA | 3 kV | 1.8 kV | -40°C ~ 80°C | - | Base Mount | CB, CSA, cUR, cURus, EAC, UL |
|
|
2801231SPD TYPE 1/TYPE 2 1.05KVDC MCOV |
5,658 |
|
Datasheet |
VAL-MS | Bulk | Active | Type 1, Type 2 | Module Only | 1 | 1.05kVDC | 15 kA | 40 kA | - | - | 1.8 kV | -40°C ~ 80°C | - | Base Mount | CB, EAC |
|
|
2801165SPD TYPE 1/TYPE 2 360VDC MCOV |
4,460 |
|
Datasheet |
VAL-MS | Bulk | Active | Type 1, Type 2 | Module Only | 1 | 360VDC | 15 kA | 40 kA | 50 kA | 2 kV | 1.4 kV | -40°C ~ 80°C | - | Base Mount | CB, cUR, cURus, EAC, UR |
Surge Protection Devices (SPDs) Electronic Components
Explore Surge Protection Devices (SPDs) electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
