Surge Protection Devices (SPDs)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Form | Number of Poles | Voltage - Continuous Operating (Max) (MCOV) | Current - Discharge (Nom) (8/20µS) | Current - Discharge (Max) (8/20µS) | Operating Temperature | Voltage - Protection Rating (VPR) | Voltage - Protection Level (VP) (2416) | Operating Temperature | Features | Mounting Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2910372SPD TYPE 2 385VAC MCOV 1 POLE |
1 |
|
Datasheet |
VAL-US | Bulk | Active | Type 2 | Base + Module | 1 | 385VAC | 20 kA | 40 kA | 25 kA | 1.5 kV | 2 kV | -40°C ~ 80°C | - | DIN Rail | cUL, UL |
|
2910330SPD TYPE 1 175VAC MCOV 1 POLE |
1 |
|
Datasheet |
VAL | Bulk | Active | Type 1 | Module Only | 1 | 175VAC | 12.5 kA | 65 kA | 25 kA | 700 V | 800 V | -40°C ~ 80°C | - | Base Mount | cUR, cURus, UR |
|
2839198SPD 275VAC/275VDC MCOV 1 POLE |
1 |
|
Datasheet |
- | Bulk | Active | - | Module Only | 1 | 275VAC, 275VDC | 2.5 kA | 5 kA | - | - | 900 V | -40°C ~ 85°C | - | Base Mount | EAC, UL |
|
M9L12240SPD TYPE 1 350VAC MCOV 2 POLE |
1 |
|
Datasheet |
- | Box | Active | Type 1 | Base + Module | 2 | 350VAC | 20 kA | 75 kA | 200 kA | - | 1.2 kV | -25°C ~ 60°C | - | DIN Rail | - |
|
1106014SPD 30VAC/36VDC MCOV 1 POLE |
1 |
|
Datasheet |
TTC | Box | Active | - | Base + Module | 1 | 30VAC, 36VDC | 350 A | 10 kA | - | - | 900 V | -40°C ~ 85°C | - | Chassis Mount | cUL, UL |
|
1106013SPD 30VAC/36VDC MCOV 1 POLE |
1 |
|
Datasheet |
TTC | Box | Active | - | Base + Module | 1 | 30VAC, 36VDC | 350 A | 10 kA | - | - | 900 V | -40°C ~ 85°C | - | DIN Rail | cUL, UL |
|

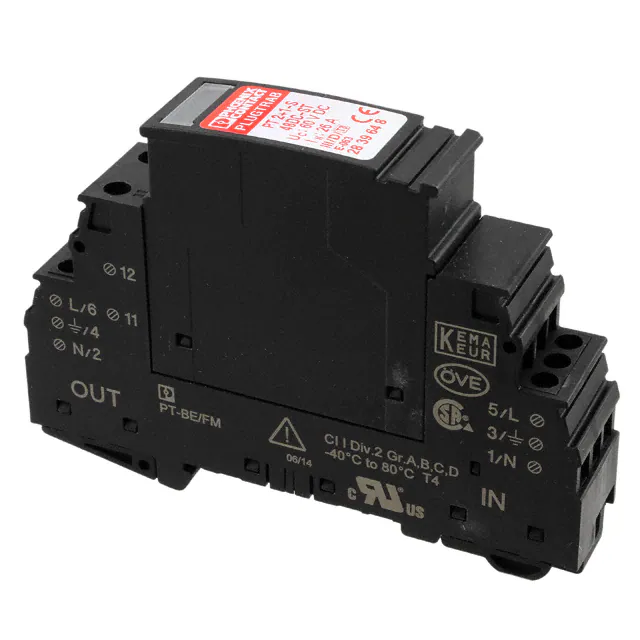

2817958SPD TYPE 3 60VDC MCOV 1 POLE |
5,638 |
|
Datasheet |
- | Bulk | Active | Type 3 | Base + Module | 1 | 60VDC | 500 A | - | 200 A | - | 120 V | -40°C ~ 80°C | - | DIN Rail | EAC |
|
2730520000SPD 150V MCOV 2 POLE |
1 |
|
Datasheet |
VPU | Box | Active | Surge Protection Module | Base + Module | 2 | 150V | 20 kA | 50 kA | 200 kA | 1 kV | 1.25 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | cULus, VDE |
|

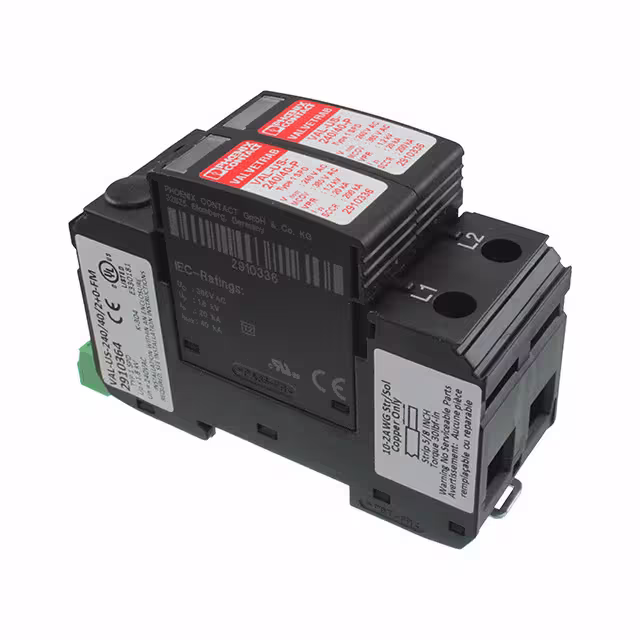

2910364SPD TYPE 2 385VAC MCOV 1 POLE |
1 |
|
Datasheet |
VAL-US | Bulk | Active | Type 2 | Base + Module | 1 | 385VAC | 20 kA | 40 kA | 25 kA | 2.5 kV | 2 kV | -40°C ~ 80°C | - | DIN Rail | cUL, UL |
|

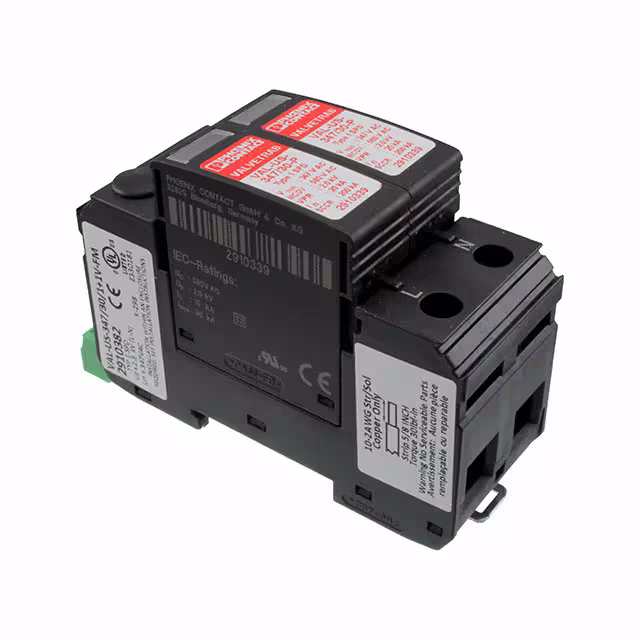

2910382SPD TYPE 2 580VAC MCOV 1 POLE |
1 |
|
Datasheet |
VAL-US | Bulk | Active | Type 2 | Base + Module | 1 | 580VAC | 15 kA | 30 kA | 25 kA | 4 kV | 2.5 kV | -40°C ~ 80°C | - | DIN Rail | cUL, UL |
|
|
HAW562-AAASPD 1 POLE |
1 |
|
Datasheet |
- | Box | Active | - | Base + Module | 1 | - | - | - | - | - | - | - | - | Chassis Mount | - |
|
2839240SPD 19VAC/27VDC MCOV 1 POLE |
1 |
|
Datasheet |
- | Bulk | Active | - | Module Only | 1 | 19VAC, 27VDC | 365 A | 20 kA | - | - | 1 kV | -40°C ~ 85°C | - | Base Mount | cUL, EAC, UL |
|
2804429SPD TYPE 2 275VAC MCOV 2 POLE |
1 |
|
Datasheet |
- | Bulk | Active | Type 2 | Module Only | 2 | 275VAC | 20 kA | 40 kA | 25 kA | - | 1.6 kV | -40°C ~ 80°C | - | DIN Rail | CB, CCA, CSA, cUL, cULus, EAC, KEMA-KEUR, OVE, UL |
|
2907874SPD TYPE 2 150VDC MCOV 1 POLE |
1 |
|
Datasheet |
VAL | Bulk | Active | Type 2 | Base + Module | 1 | 150VDC | 20 kA | 40 kA | 6 kA | 1.5 kV | 1.8 kV | -40°C ~ 80°C | - | DIN Rail | cUL, EAC, UL |
|
|
2730780000SPD 750VAC MCOV 3 POLE |
1 |
|
Datasheet |
VPU | Box | Active | Surge Protection Module | Base + Module | 3 | 750VAC | 20 kA | 35 kA | 200 kA | 5 kV | 3.4 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | cULus, VDE |
|
|
2730600000SPD 350VAC MCOV 3 POLE |
1 |
|
Datasheet |
VPU | Box | Active | Surge Protection Module | Base + Module | 3 | 350VAC | 20 kA | 50 kA | 200 kA | 2 kV | 1.75 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | cULus, VDE |
|

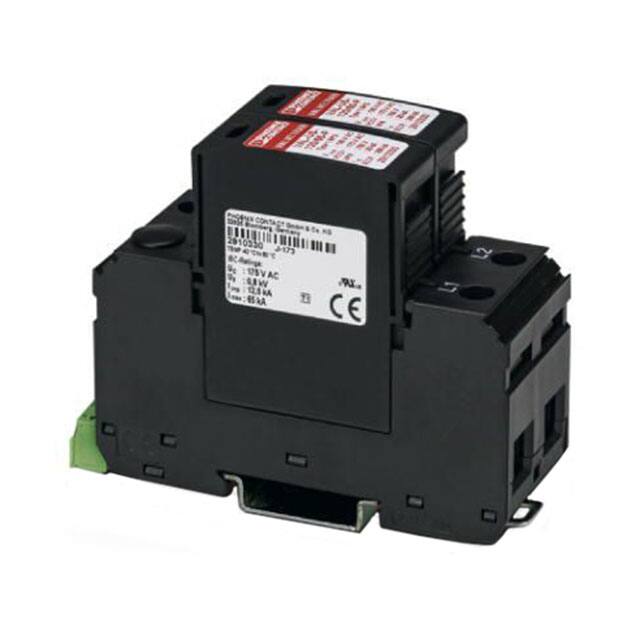

2910357SPD TYPE 1/TYPE 2 175VAC MCOV |
4,355 |
|
Datasheet |
VAL-US | Bulk | Active | Type 1, Type 2 | Base + Module | 1 | 175VAC | 20 kA | 25 kA | 25 kA | 1.2 kV | 800 V | -40°C ~ 80°C | - | DIN Rail | cUL, UL |
|
2730610000SPD 350VAC MCOV 4 POLE |
1 |
|
Datasheet |
VPU | Box | Active | Surge Protection Module | Base + Module | 4 | 350VAC | 40 kA | 50 kA | 200 kA | 2 kV | 1.75 kV | -40°C ~ 85°C | - | DIN Rail | cULus, VDE |
|
2910383SPD TYPE 1 580VAC MCOV 1 POLE |
1 |
|
Datasheet |
VAL-US | Bulk | Active | Type 1 | Base + Module | 1 | 580VAC | 15 kA | 30 kA | 25 kA | 4 kV | 2.5 kV | -40°C ~ 80°C | - | DIN Rail | cUL, UL |
|
2910391SPD TYPE 2 750VAC MCOV 1 POLE |
1 |
|
Datasheet |
VAL-US | Bulk | Active | Type 2 | Base + Module | 1 | 750VAC | 15 kA | 30 kA | 25 kA | 4 kV | 2.9 kV | -40°C ~ 80°C | - | DIN Rail | cUL, UL |
Surge Protection Devices (SPDs) Electronic Components
Explore Surge Protection Devices (SPDs) electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
