Surge Protection Devices (SPDs)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Form | Number of Poles | Voltage - Continuous Operating (Max) (MCOV) | Current - Discharge (Nom) (8/20µS) | Current - Discharge (Max) (8/20µS) | Operating Temperature | Voltage - Protection Rating (VPR) | Voltage - Protection Level (VP) (2416) | Operating Temperature | Features | Mounting Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

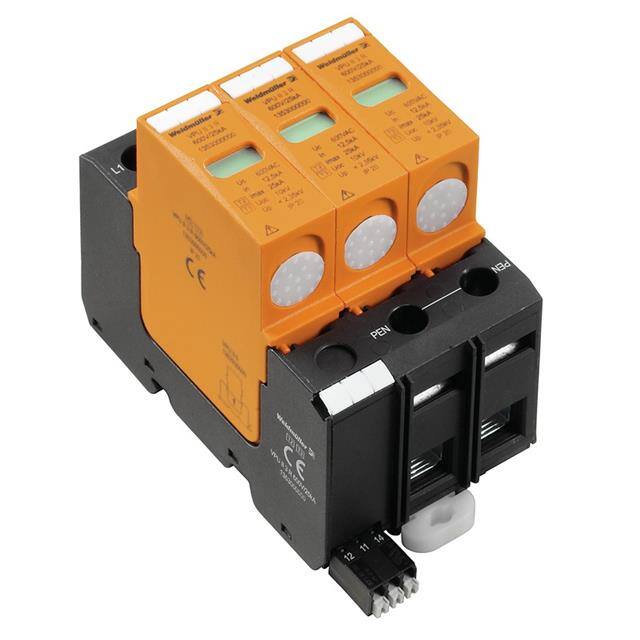

1353000000SPD TYPE 2/TYPE 3 600VAC MCOV |
86 |
|
- |
VPU | Bulk | Obsolete | Type 2, Type 3 | Base + Module | 3 | 600VAC | 12.5 kA | 25 kA | 25 kA | - | 2.35 kV | -40°C ~ 70°C | - | DIN Rail | - |
|
RDS1B-24VSPD 170V MCOV 1 POLE |
10 |
|
Datasheet |
- | Box | Active | - | Module Only | 1 | 170V | - | - | - | - | - | -40°C ~ 85°C | - | DIN Rail | - |
|
SP250A3-6SPD 320V MCOV 3 POLE |
10 |
|
Datasheet |
- | Box | Active | - | Module Only | 3 | 320V | - | - | - | - | - | -40°C ~ 85°C | - | DIN Rail | cURus |
|
|
SP250A3-4SPD 320V MCOV 3 POLE |
10 |
|
Datasheet |
- | Box | Active | - | Module Only | 3 | 320V | - | - | - | - | - | -40°C ~ 85°C | - | DIN Rail | cURus |
|
|
SP55A3-18SPD 85V MCOV 3 POLE |
10 |
|
Datasheet |
- | Box | Active | - | Module Only | 3 | 85V | - | - | - | - | - | -40°C ~ 85°C | - | DIN Rail | cURus |
|
|
SP130A3-24SPD 175V MCOV 3 POLE |
10 |
|
Datasheet |
- | Box | Active | - | Module Only | 3 | 175V | - | - | - | - | - | -40°C ~ 85°C | - | DIN Rail | cURus |
|
2736210000SPD TYP 2/TYP 3 75VAC MCOV 1POLE |
74 |
|
Datasheet |
- | Bulk | Active | Type 2, Type 3 | Base + Module | 1 | 75VAC | 20 kA | 50 kA | 100 kA | 330 V | 800 V | -40°C ~ 85°C | - | DIN Rail | CE, cULus, VDE |
|
1064210000SPD 75VAC/106VDC MCOV 1 POLE |
55 |
|
Datasheet |
VSSC | Bulk | Active | - | Module Only | 1 | 75VAC, 106VDC | 2.5 kA | 5 kA | - | - | 780 V | -40°C ~ 70°C | - | DIN Rail | CE, OVE, UL |
|
1064250000SPD 75VAC/106VDC MCOV 1 POLE |
40 |
|
Datasheet |
VSSC | Bulk | Active | - | Module Only | 1 | 75VAC, 106VDC | 2.5 kA | 10 kA | - | - | 780 V | -40°C ~ 70°C | - | DIN Rail | CE, EAC, OVE, UL |
|
|
1064290000SPD 75VAC/106VDC MCOV 1 POLE |
40 |
|
Datasheet |
VSSC | Bulk | Active | - | Module Only | 1 | 75VAC, 106VDC | 2.5 kA | 5 kA | - | - | 1.51 kV | -40°C ~ 70°C | - | DIN Rail | CE, OVE, UL |
|
|
2659840000SPD TYPE 2/TYPE 3 300VAC MCOV |
13 |
|
Datasheet |
- | Retail Package | Active | Type 2, Type 3 | Base + Module | 1 | 300VAC | 25 kA | 50 kA | 150 kA | - | 1.3 kV | -40°C ~ 85°C | - | Surface Mount | cURus |
|
1064380000SPD 15VDC MCOV 1 POLE |
20 |
|
Datasheet |
VSSC | Bulk | Active | - | Module Only | 1 | 15VDC | 2.5 kA | 10 kA | - | - | 100 V | -40°C ~ 70°C | - | DIN Rail | CE, OVE, UL |
|
2025110000SPD TYPE 1 510VAC MCOV 1 POLE |
8 |
|
- |
VPU | Bulk | Obsolete | Type 1 | Base + Module | 1 | 510VAC | 20 kA | - | 200 kA | - | - | -40°C ~ 85°C | - | DIN Rail | - |
|
1064330000SPD 75VAC/106VDC MCOV 1 POLE |
29 |
|
Datasheet |
VSSC | Bulk | Active | - | Module Only | 1 | 75VAC, 106VDC | 2.5 kA | 5 kA | - | - | 1.55 kV | -40°C ~ 70°C | - | DIN Rail | CE, OVE, UL |
|
|
1064320000SPD 60VAC/85VDC MCOV 1 POLE |
12 |
|
Datasheet |
VSSC | Bulk | Active | - | Module Only | 1 | 60VAC, 85VDC | 2.5 kA | 5 kA | - | - | 1.55 kV | -40°C ~ 70°C | - | DIN Rail | CE, OVE, UL |
|
8924420000SPD 6.4VDC MCOV 1 POLE |
17 |
|
Datasheet |
VSPC | Bulk | Active | - | Module Only | 1 | 6.4VDC | 2.5 kA | 10 kA | - | - | 800 V | -40°C ~ 70°C | - | Base Mount | CE, UL |
|
|
8924210000SPD 6.4VDC MCOV 1 POLE |
44 |
|
Datasheet |
VSPC | Bulk | Active | - | Module Only | 1 | 6.4VDC | 2.5 kA | 10 kA | - | - | 200 V | -40°C ~ 70°C | - | Base Mount | CE, UL |
|
|
SP130A2T-4SPD 175V MCOV 3 POLE |
10 |
|
Datasheet |
- | Box | Active | - | Module Only | 3 | 175V | - | - | - | - | - | -40°C ~ 85°C | - | DIN Rail | cURus |
|
|
SP130A2T-6SPD 175V MCOV 3 POLE |
10 |
|
Datasheet |
- | Box | Active | - | Module Only | 3 | 175V | - | - | - | - | - | -40°C ~ 85°C | - | DIN Rail | cURus |
|
|
SP45D2T-4SPD 45V MCOV 3 POLE |
10 |
|
Datasheet |
- | Box | Active | - | Module Only | 3 | 45V | - | - | - | - | - | -40°C ~ 85°C | - | DIN Rail | cURus |
