Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
55046-03SWITCH TOGGLE DPDT |
0 |
|
- |
- | Bulk | Obsolete | Panel Mount | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
59024-100-BXSWITCH TOGGLE SPST 25A 12V |
0 |
|
- |
59024 | Box | Obsolete | Panel Mount | SPST | On-Off | 25A (DC) | - | 12 V | Paddle | 25.40mm | Non-Illuminated | - | - | - | - | 15/32-32 | - | - | - |
|
|
55094SWITCH TOGGLE |
0 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
54101-01SWITCH TOGGLE SPST 25A 12V |
0 |
|
Datasheet |
54100 | Bulk | Obsolete | Panel Mount | SPST | Off-Mom | 25A (DC) | - | 12 V | Paddle | - | Non-Illuminated | - | - | Screw Terminal | - | 15/32-32 | - | - | -40°C ~ 105°C |
|
TB1-2A-AC-1VAC DPST OFF-ON, TABS, 15/32 |
0 |
|
Datasheet |
TB1 | Bulk | Active | Panel Mount | DPST | On-Off | 10A (AC) | 250 V | - | Standard Round | 16.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | 15/32-32 | - | - | - |
|
TB1-2D-AC-6VAC DPDT ON-ON, SCREW, 15/32 |
0 |
|
Datasheet |
TB1 | Bulk | Active | Panel Mount | DPDT | On-On | 10A (AC) | 250 V | - | Standard Round | 16.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | 15/32-32 | - | - | - |
|
TB1-2G-AC-1VAC DPDT (ON)-OFF-(ON), 15/32 |
0 |
|
Datasheet |
TB1 | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 10A (AC) | 250 V | - | Standard Round | 16.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | 15/32-32 | - | - | - |
|
TB1-2G-AC-6VAC DPDT (ON)-OFF-(ON), 15/32 |
0 |
|
Datasheet |
TB1 | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 10A (AC) | 250 V | - | Standard Round | 16.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | 15/32-32 | - | - | - |
|
TA2-1B-AC-5SWITCH TOGGLE SPST 12A 250V |
0 |
|
Datasheet |
TA2 | Bulk | Active | Panel Mount | SPST | Off-Mom | 12A (AC) | 250 V | - | Standard Round | 16.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.20mm Dia | 15/32-32 | - | - | - |
|
TB1-2F-AC-5VAC DPDT ON-OFF-ON, SOLD, 15/32 |
0 |
|
Datasheet |
TB1 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 10A (AC) | 250 V | - | Standard Round | 16.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.20mm Dia | 15/32-32 | - | - | - |
|
TA2-1A-AC-1-OSWITCH TOGGLE SPST 12A 250V |
0 |
|
Datasheet |
TA2 | Bulk | Active | Panel Mount | SPST | On-Off | 12A (AC) | 250 V | - | Standard Round | 16.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | 15/32-32 | IP55 - Dust Protected, Water Resistant | - | - |
|
TA2-1A-AC-6VAC SPST OFF-ON, SCREW, 15/32 |
0 |
|
Datasheet |
TA2 | Bulk | Active | Panel Mount | SPST | On-Off | 12A (AC) | 250 V | - | Standard Round | 16.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | 15/32-32 | - | - | 0°C ~ 65°C |
|
TB1-2F-AC-1VAC DPDT ON-OFF-ON, TABS, 15/32 |
0 |
|
Datasheet |
TB1 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 10A (AC) | 250 V | - | Standard Round | 16.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | 15/32-32 | - | - | - |
|
TA2-1G-AC-6VAC SPDT (ON)-OFF-(ON), 15/32 |
0 |
|
Datasheet |
TA2 | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 12A (AC) | 250 V | - | Standard Round | 16.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | 15/32-32 | - | - | - |
|
TA2-1A-AC-6-OVAC SPST OFF-ON, 15/32 - IP55 |
0 |
|
Datasheet |
TA2 | Bulk | Active | Panel Mount | SPST | On-Off | 12A (AC) | 250 V | - | Standard Round | 16.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | 15/32-32 | IP55 - Dust Protected, Water Resistant | - | - |
|
TA2-1A-AC-1VAC SPST OFF-ON, TABS, 15/32 |
0 |
|
Datasheet |
TA2 | Bulk | Active | Panel Mount | SPST | On-Off | 12A (AC) | 250 V | - | Standard Round | 16.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | 15/32-32 | - | - | 0°C ~ 65°C |
|
TA2-1D-AC-6VAC SPDT ON-ON, SCREW, 15/32 |
0 |
|
Datasheet |
TA2 | Bulk | Active | Panel Mount | SPDT | On-On | 12A (AC) | 250 V | - | Standard Round | 16.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | 15/32-32 | - | - | - |
|

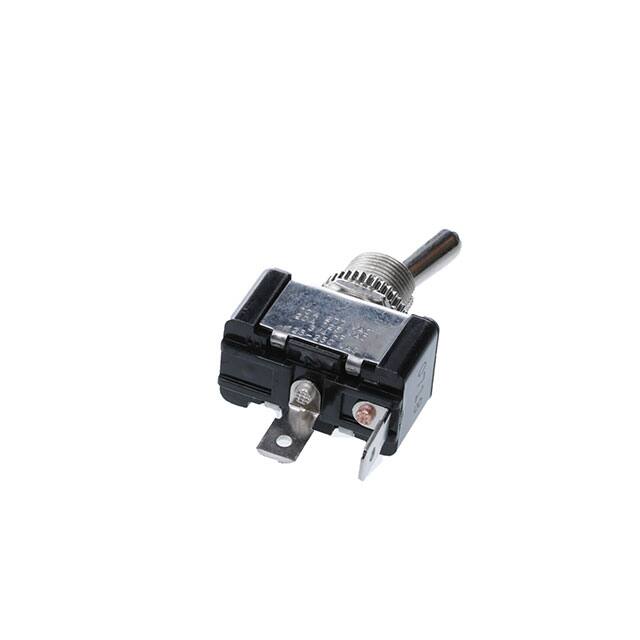

TA2-1G-AC-1SWITCH TOGGLE SPDT 12A 250V |
0 |
|
Datasheet |
TA2 | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 12A (AC) | 250 V | - | Standard Round | 16.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | 15/32-32 | - | - | - |
|
TB1-2B-AC-1VAC DPST OFF-(ON), TABS, 15/32 |
0 |
|
Datasheet |
TB1 | Bulk | Active | Panel Mount | DPST | Off-Mom | 10A (AC) | 250 V | - | Standard Round | 16.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | 15/32-32 | - | - | - |
|
TA2-1F-AC-1VAC SPDT ON-OFF-ON, TABS, 15/32 |
0 |
|
Datasheet |
TA2 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 12A (AC) | 250 V | - | Standard Round | 16.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | 15/32-32 | - | - | - |
Toggle Switches Electronic Components
Explore Toggle Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
