Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

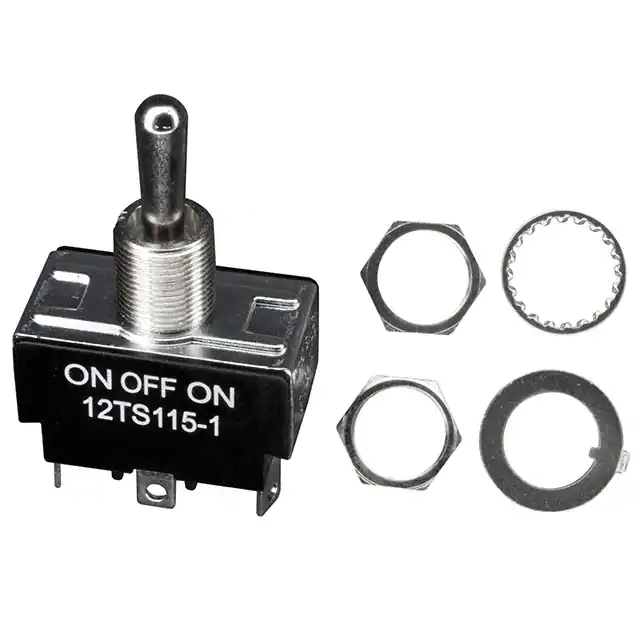

12TS115-1SWITCH TOGGLE DPDT 20A 125V |
0 |
|
Datasheet |
TS | Bulk | Obsolete | Panel Mount | DPDT | On-Off-On | 20A (AC) | 125 V | - | Standard Round | 16.51mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.40mm Dia | 15/32-32 | - | - | -54°C ~ 71°C |
|
12TS115-3SWITCH TOGGLE DPDT 20A 125V |
0 |
|
Datasheet |
TS | Bulk | Obsolete | Panel Mount | DPDT | On-On | 20A (AC) | 125 V | - | Standard Round | 16.51mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.40mm Dia | 15/32-32 | - | - | -54°C ~ 71°C |
|

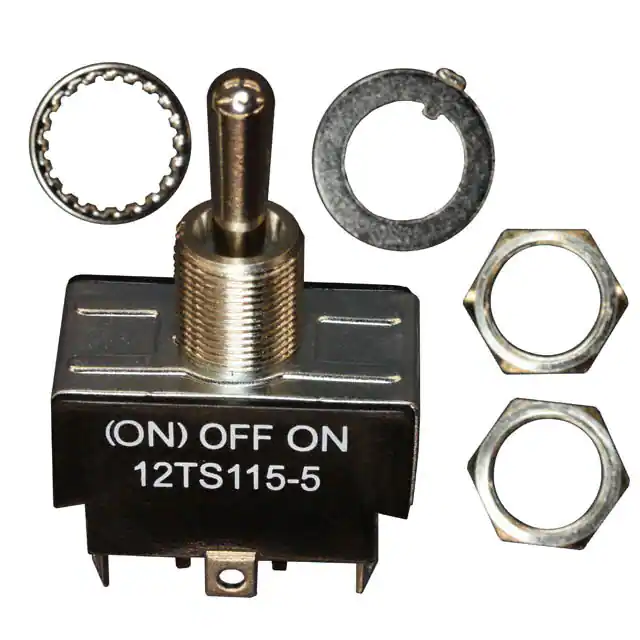

12TS115-5SWITCH TOGGLE DPDT 20A 125V |
0 |
|
Datasheet |
TS | Bulk | Obsolete | Panel Mount | DPDT | On-Off-Mom | 20A (AC) | 125 V | - | Standard Round | 16.51mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.40mm Dia | 15/32-32 | - | - | -54°C ~ 71°C |
|
M2028QS1G01SWITCH TOGGLE DPDT 0.4VA 28V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 14.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2122TEG01SWITCH TOGGLE DPDT 0.4VA 28V |
0 |
|
Datasheet |
M2100 | Bulk | Obsolete | Panel Mount | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 14.70mm | Illuminated | LED, Yellow | 2.1 VDC | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -10°C ~ 55°C |
|
|
M2011SS1W01-CCSWITCH TOGGLE SPST 6A 125V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPST | On-Off | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round with Cap | 13.10mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Red Cap | -30°C ~ 85°C |
|
|
M2012SS1W03-CFSWITCH TOGGLE SPDT 6A 125V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round with Cap | 13.10mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Green Cap | -30°C ~ 85°C |
|
|
M2023SS1W03-BBSWITCH TOGGLE DPDT 6A 125V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round with Cap | 13.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | White Cap | -30°C ~ 85°C |
|

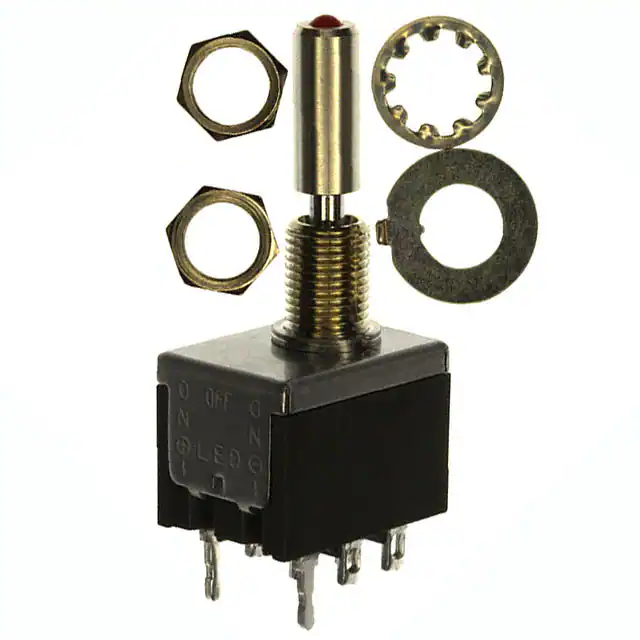

M2123TCW01SWITCH TOGGLE DPDT 6A 125V |
0 |
|
Datasheet |
M2100 | Bulk | Obsolete | Panel Mount | DPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 14.70mm | Illuminated | LED, Red | 2.2 VDC | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -10°C ~ 55°C |
|
12TS15-4SWITCH TOGGLE DPST-NC 20A 125V |
0 |
|
Datasheet |
TS | Bulk | Obsolete | Panel Mount | DPST-NC | On-Mom | 20A (AC) | 125 V | - | Standard Round | 16.51mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | - | - | -54°C ~ 71°C |
|

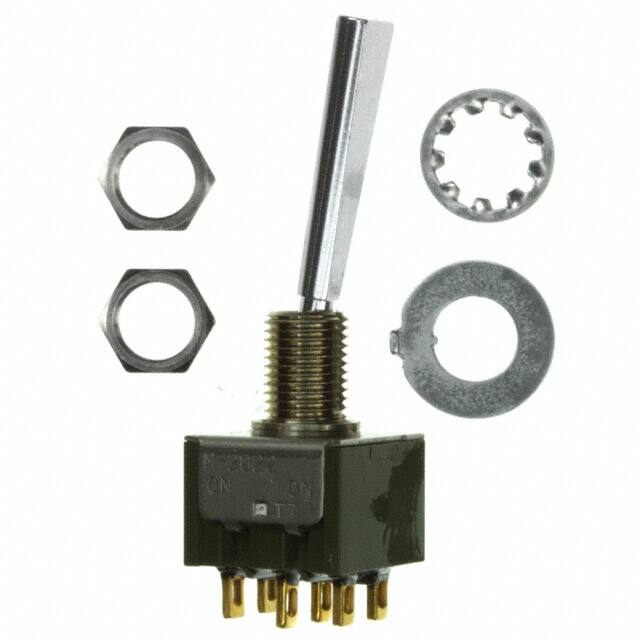

M2022E4S1G01SWITCH TOGGLE DPDT 0.4VA 28V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Flatted | 21.30mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

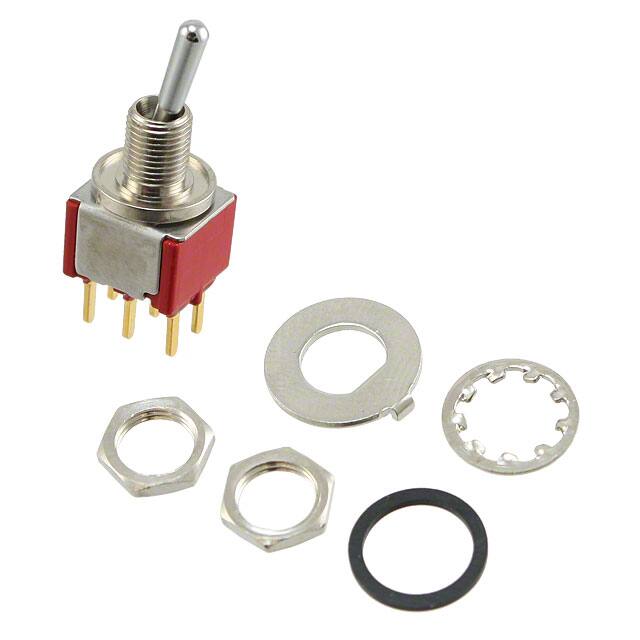

M8373110232SWITCH TOGGLE DPDT 5A 115V |
0 |
|
Datasheet |
M83731 | Tray | Obsolete | Panel Mount | DPDT | On-On | 5A (AC/DC) | 115 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -25°C ~ 71°C |
|
M83731/10-312SWITCH TOGGLE DPDT 5A 115V |
0 |
|
Datasheet |
M83731 | Tray | Obsolete | Panel Mount | DPDT | On-Off-Mom | 5A (AC/DC) | 115 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -25°C ~ 71°C |
|

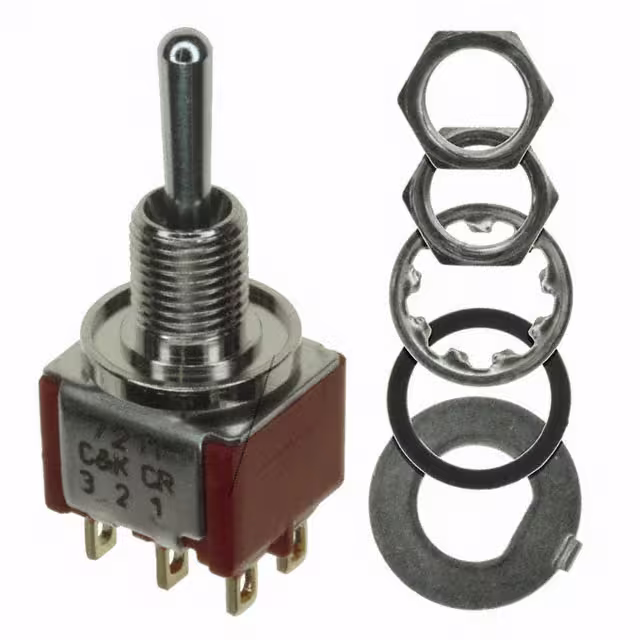

M83731/10-321SWITCH TOGGLE SP3T 5A 115V |
0 |
|
Datasheet |
M83731 | Tray | Obsolete | Panel Mount | SP3T | On-On-On | 5A (AC/DC) | 115 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -25°C ~ 71°C |
|
M83731/10-351SWITCH TOGGLE SP3T 5A 115V |
0 |
|
Datasheet |
M83731 | Tray | Obsolete | Panel Mount | SP3T | Mom-On-Mom | 5A (AC/DC) | 115 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -25°C ~ 71°C |
|

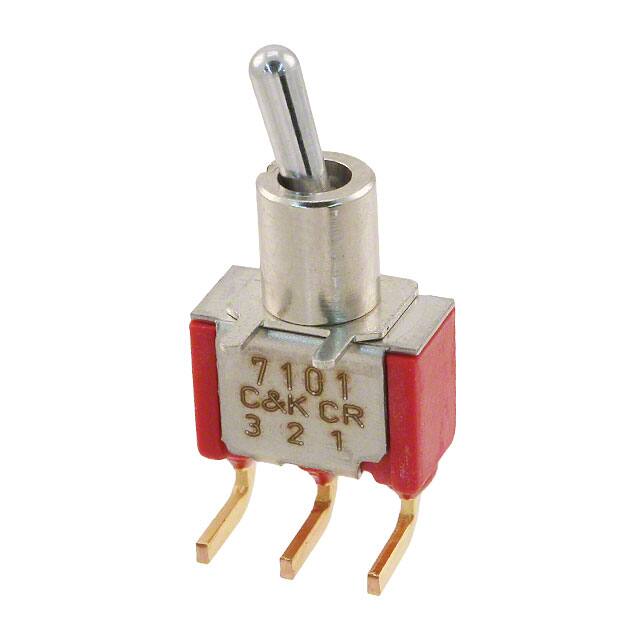

M83731/15-231SWITCH TOGGLE SPDT 5A 115V |
0 |
|
Datasheet |
M83731 | Tray | Obsolete | Through Hole, Right Angle | SPDT | On-On | 5A (AC/DC) | 115 V | 28 V | Standard Round | 6.90mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -25°C ~ 71°C |
|
M83731/15-261SWITCH TOGGLE SPDT 5A 115V |
0 |
|
Datasheet |
M83731 | Tray | Obsolete | Through Hole, Right Angle | SPDT | On-Mom | 5A (AC/DC) | 115 V | 28 V | Standard Round | 6.90mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -25°C ~ 71°C |
|
M837319211SWITCH TOGGLE SPDT 5A 115V |
0 |
|
Datasheet |
M83731 | Tray | Obsolete | Panel Mount | SPDT | On-Off-On | 5A (AC/DC) | 115 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -25°C ~ 71°C |
|

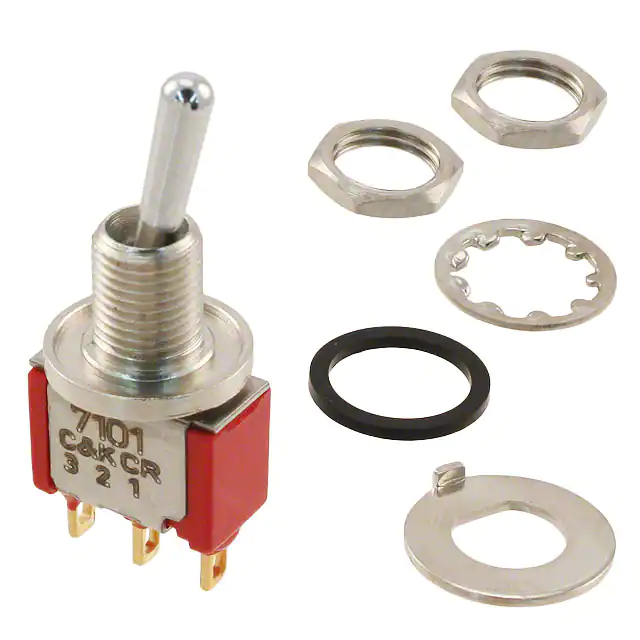

M837319231SWITCH TOGGLE SPDT 5A 115V |
0 |
|
Datasheet |
M83731 | Tray | Obsolete | Panel Mount | SPDT | On-On | 5A (AC/DC) | 115 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -25°C ~ 71°C |
|

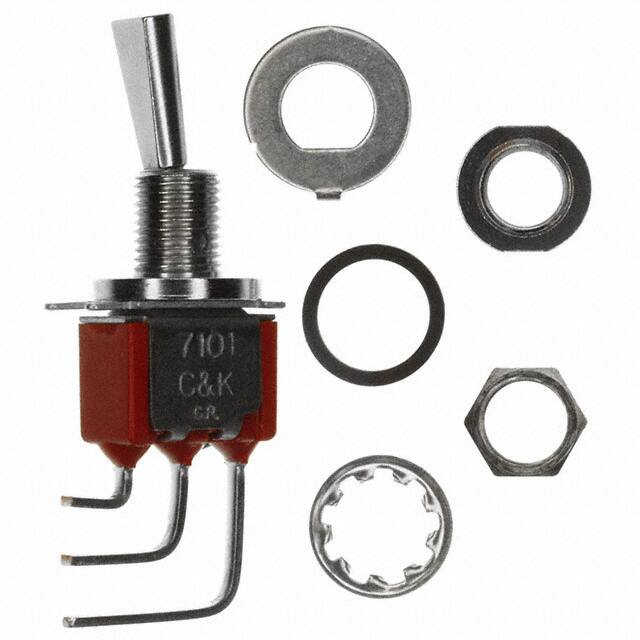

7101P3CWAV2MESWITCH TOGGLE SPDT 5A 120V |
0 |
|
Datasheet |
7000 | Tray | Obsolete | Panel Mount, Right Angle, Vertical | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
