Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CLS-TC11A12190YSWITCH TOGGLE SPST 20A 12V |
0 |
|
Datasheet |
CLS | Bulk | Obsolete | Panel Mount, Snap-In | SPST | On-Off | 20A (DC) | - | 12 V | Flatted | - | Illuminated | LED, Yellow | 12 VDC | Quick Connect - 0.187" (4.7mm) | Circular - 20.20mm Dia | - | - | - | - |
|
CLS-TC11A12190RSWITCH TOGGLE SPST 20A 12V |
0 |
|
Datasheet |
CLS | Bulk | Obsolete | Panel Mount, Snap-In | SPST | On-Off | 20A (DC) | - | 12 V | Flatted | - | Illuminated | LED, Red | 12 VDC | Quick Connect - 0.187" (4.7mm) | Circular - 20.20mm Dia | - | - | - | - |
|
CLS-TS11A12250YSWITCH TOGGLE SPST 25A 12V |
0 |
|
Datasheet |
CLS | Bulk | Obsolete | Panel Mount, Snap-In | SPST | On-Off | 25A (DC) | - | 12 V | Flatted | 17.00mm | Illuminated | LED, Yellow | 12 VDC | Quick Connect - 0.250" (6.3mm) | Circular - 24.00mm Dia | - | - | - | - |
|
CLS-TS11A12250RSWITCH TOGGLE SPST 25A 12V |
0 |
|
Datasheet |
CLS | Bulk | Obsolete | Panel Mount, Snap-In | SPST | On-Off | 25A (DC) | - | 12 V | Flatted | 17.00mm | Illuminated | LED, Red | 12 VDC | Quick Connect - 0.250" (6.3mm) | Circular - 24.00mm Dia | - | - | - | - |
|
CLS-TS11A12250GSWITCH TOGGLE SPST 25A 12V |
0 |
|
Datasheet |
CLS | Bulk | Obsolete | Panel Mount, Snap-In | SPST | On-Off | 25A (DC) | - | 12 V | Flatted | 17.00mm | Illuminated | LED, Green | 12 VDC | Quick Connect - 0.250" (6.3mm) | Circular - 24.00mm Dia | - | - | - | - |
|
CLS-TS11A12250BSWITCH TOGGLE SPST 25A 12V |
0 |
|
Datasheet |
CLS | Bulk | Obsolete | Panel Mount, Snap-In | SPST | On-Off | 25A (DC) | - | 12 V | Flatted | 17.00mm | Illuminated | LED, Blue | 12 VDC | Quick Connect - 0.250" (6.3mm) | Circular - 24.00mm Dia | - | - | - | - |
|
CLS-TC11A12250YSWITCH TOGGLE SPST 20A 12V |
0 |
|
Datasheet |
CLS | Bulk | Obsolete | Panel Mount | SPST | On-Off | 20A (DC) | - | 12 V | Standard Round | 20.00mm | Illuminated | LED, Yellow | 12 VDC | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | M12 x 0.75 | - | - | - |
|
CLS-TC11A12250RSWITCH TOGGLE SPST 20A 12V |
0 |
|
Datasheet |
CLS | Bulk | Obsolete | Panel Mount | SPST | On-Off | 20A (DC) | - | 12 V | Standard Round | 20.00mm | Illuminated | LED, Red | 12 VDC | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | M12 x 0.75 | - | - | - |
|
CLS-TC11A12250GSWITCH TOGGLE SPST 20A 12V |
0 |
|
Datasheet |
CLS | Bulk | Obsolete | Panel Mount | SPST | On-Off | 20A (DC) | - | 12 V | Standard Round | 20.00mm | Illuminated | LED, Green | 12 VDC | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | M12 x 0.75 | - | - | - |
|
CLS-TC11A12250BSWITCH TOGGLE SPST 20A 12V |
0 |
|
Datasheet |
CLS | Bulk | Obsolete | Panel Mount | SPST | On-Off | 20A (DC) | - | 12 V | Standard Round | 20.00mm | Illuminated | LED, Blue | 12 VDC | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | M12 x 0.75 | - | - | - |
|

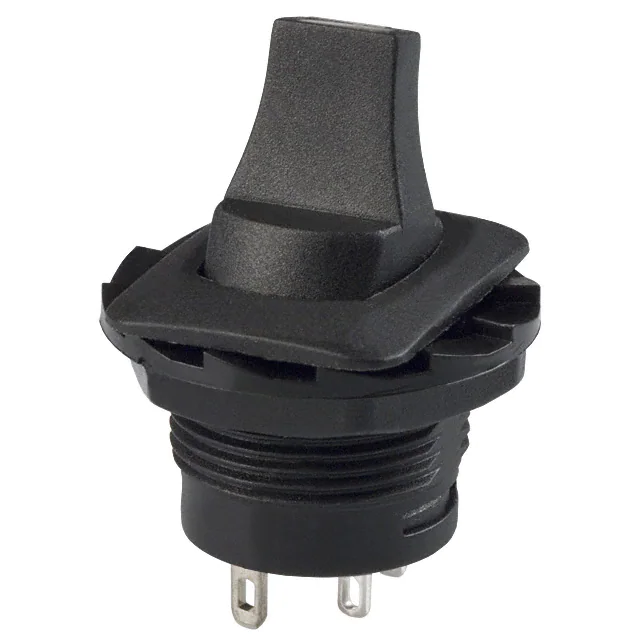

CLS-TO11A125S00YSWITCH TOGGLE SPST 10A 125V |
0 |
|
Datasheet |
CLS | Bulk | Obsolete | Panel Mount | SPST | On-Off | 10A (AC) | 125 V | - | Flatted | 13.00mm | Illuminated | LED, Yellow | 12 VDC | Solder Lug | Circular - 18.00mm Dia | M18 x 1 | - | - | - |
|
CLS-TO11A125S00RSWITCH TOGGLE SPST 10A 125V |
0 |
|
Datasheet |
CLS | Bulk | Obsolete | Panel Mount | SPST | On-Off | 10A (AC) | 125 V | - | Flatted | 13.00mm | Illuminated | LED, Red | 12 VDC | Solder Lug | Circular - 18.00mm Dia | M18 x 1 | - | - | - |
|
CLS-TO11A125S00GSWITCH TOGGLE SPST 10A 125V |
0 |
|
Datasheet |
CLS | Bulk | Obsolete | Panel Mount | SPST | On-Off | 10A (AC) | 125 V | - | Flatted | 13.00mm | Illuminated | LED, Green | 12 VDC | Solder Lug | Circular - 18.00mm Dia | M18 x 1 | - | - | - |
|
CLS-TC11A12251YSWITCH TOGGLE SPST 30A 12V |
0 |
|
Datasheet |
CLS | Bulk | Obsolete | Panel Mount | SPST | On-Off | 30A (DC) | - | 12 V | Flatted | - | Illuminated | LED, Yellow | 12 VDC | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | M12 x 0.75 | - | - | - |
|
CLS-TC11A12251RSWITCH TOGGLE SPST 30A 12V |
0 |
|
Datasheet |
CLS | Bulk | Obsolete | Panel Mount | SPST | On-Off | 30A (DC) | - | 12 V | Flatted | - | Illuminated | LED, Red | 12 VDC | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | M12 x 0.75 | - | - | - |
|
|
CLS-TC11A12251GSWITCH TOGGLE SPST 30A 12V |
0 |
|
Datasheet |
CLS | Bulk | Obsolete | Panel Mount | SPST | On-Off | 30A (DC) | - | 12 V | Flatted | - | Illuminated | LED, Green | 12 VDC | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | M12 x 0.75 | - | - | - |
|
|
CLS-TC11A12251BSWITCH TOGGLE SPST 30A 12V |
0 |
|
Datasheet |
CLS | Bulk | Obsolete | Panel Mount | SPST | On-Off | 30A (DC) | - | 12 V | Flatted | - | Illuminated | LED, Blue | 12 VDC | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | M12 x 0.75 | - | - | - |
|
ET01S1F1V31BESWITCH TOGGLE SPDT 0.4VA 20V |
0 |
|
Datasheet |
ET | Bulk | Obsolete | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 13.97mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | ESD Conductive Bushing | -30°C ~ 85°C |
|
MTA206NPCSWITCH TOGGLE DPDT 6A 125V |
0 |
|
Datasheet |
MTA Green | Bulk | Obsolete | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 28 V | Standard Round | 10.49mm | Non-Illuminated | - | - | PC Pin | Circular - 6.40mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
M2015S2A2W13SWITCH TOGGLE SPDT 6A 125V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
