Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
22AT21-TSWITCH TOGGLE 8PDT 5A 250V |
0 |
|
- |
AT | Bulk | Active | Panel Mount | 8PDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Standard Round | 19.76mm | Non-Illuminated | - | - | Solder Turret | Circular - 12.40mm Dia | 15/32-32 | - | - | - |
|
|
64AT203-1MSWITCH TOGGLE 4PDT 1A 28V |
0 |
|
Datasheet |
AT | Bulk | Active | Panel Mount | 4PDT | On-Off-On | 1A (DC) | - | 28 V | Locking Lever | 26.67mm | Non-Illuminated | - | - | Solder Turret | Circular - 12.40mm Dia | 15/32-32 | - | - | - |
|
|
68AT34-1SWITCH TOGGLE 8PDT 1A 30V |
0 |
|
Datasheet |
AT | Bulk | Active | Panel Mount | 8PDT | On-Off-On | 1A (DC) | - | 30 V | Standard Round | 17.27mm | Non-Illuminated | - | - | Quick Connect - 0.058" (Round) | Circular - 12.40mm Dia | 15/32-32 | - | - | - |
|
|
3TL32-3-3DSWITCH TOGGLE 3PDT 15A 125V |
0 |
|
Datasheet |
TL | Bulk | Obsolete | Panel Mount | 3PDT | On-On | 15A (AC) | 125 V | - | Locking Lever | 38.86mm | Illuminated | Incandescent, Red | 28 VAC | Wire Leads | - | 3/4-20 | Environment Sealed | - | -65°C ~ 71°C |
|
|
26ET105-TSWITCH TOGGLE DPDT 4A 28V |
0 |
|
Datasheet |
ET | Bulk | Obsolete | Panel Mount | DPDT | On-Mom | 4A (DC) | - | 28 V | Paddle | 17.53mm | Non-Illuminated | - | - | Solder Turret | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | Magnetic Hold | -65°C ~ 71°C |
|
|
66AT300-1SWITCH TOGGLE 6PDT 7A 115V |
0 |
|
Datasheet |
AT | Bulk | Active | Panel Mount | 6PDT | On-Off-On | 7A (AC/DC) | 115 V | 28 V | Standard Round | 17.27mm | Non-Illuminated | - | - | Solder Turret | Circular - 12.40mm Dia | 15/32-32 | - | - | -55°C ~ 85°C |
|
|
66AT300-1MSWITCH TOGGLE 6PDT 7A 115V |
0 |
|
Datasheet |
AT | Bulk | Active | Panel Mount | 6PDT | On-Off-On | 7A (AC/DC) | 115 V | 28 V | Locking Lever | 26.67mm | Non-Illuminated | - | - | Solder Turret | Circular - 12.40mm Dia | 15/32-32 | - | - | -55°C ~ 85°C |
|
|
22AT2-TSWITCH TOGGLE 8PDT 5A 250V |
0 |
|
- |
AT | Bulk | Active | Panel Mount | 8PDT | On-On | 5A (AC/DC) | 250 V | 30 V | Standard Round | 19.76mm | Non-Illuminated | - | - | Solder Turret | Circular - 12.40mm Dia | 15/32-32 | - | - | - |
|
|
66AT300-3SWITCH TOGGLE 6PDT 7A 115V |
0 |
|
Datasheet |
AT | Bulk | Active | Panel Mount | 6PDT | On-On | 7A (AC/DC) | 115 V | 28 V | Standard Round | 17.27mm | Non-Illuminated | - | - | Solder Turret | Circular - 12.40mm Dia | 15/32-32 | - | - | -55°C ~ 85°C |
|
|
66AT300-3DSWITCH TOGGLE 6PDT 7A 115V |
0 |
|
Datasheet |
AT | Bulk | Active | Panel Mount | 6PDT | On-On | 7A (AC/DC) | 115 V | 28 V | Locking Lever | 26.67mm | Non-Illuminated | - | - | Solder Turret | Circular - 12.40mm Dia | 15/32-32 | - | - | -55°C ~ 85°C |
|

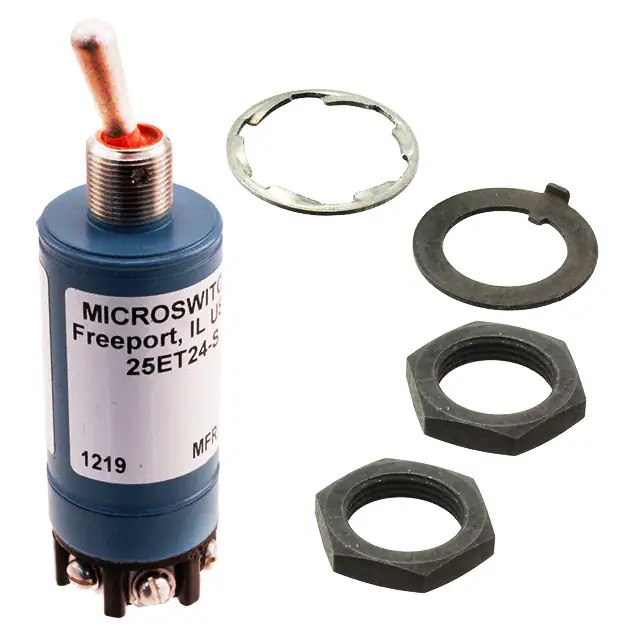

25ET24-SSWITCH TOGGLE SPDT 4A 28V |
0 |
|
Datasheet |
ET | Bulk | Active | Panel Mount | SPDT | On-Mom | 4A (DC) | - | 28 V | Standard Round | 17.53mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | Magnetic Hold | -65°C ~ 71°C |
|
|
64AT303-3SWITCH TOGGLE 4PDT 7A 115V |
0 |
|
Datasheet |
AT | Bulk | Active | Panel Mount | 4PDT | On-On | 7A (AC/DC) | 115 V | 28 V | Standard Round | 17.27mm | Non-Illuminated | - | - | Solder Turret | Circular - 12.40mm Dia | 15/32-32 | - | - | - |
|
|
68AT303-1ASWITCH TOGGLE 8PDT 7A 115V |
0 |
|
Datasheet |
AT | Bulk | Active | Panel Mount | 8PDT | On-Off-On | 7A (AC/DC) | 115 V | 28 V | Locking Lever | 26.67mm | Non-Illuminated | - | - | Solder Turret | Circular - 12.40mm Dia | 15/32-32 | - | - | - |
|
|
68AT22-3SWITCH TOGGLE 8PDT 7A 115V |
0 |
|
Datasheet |
AT | Bulk | Active | Panel Mount | 8PDT | On-On | 7A (AC/DC) | 115 V | 28 V | Standard Round | 17.27mm | Non-Illuminated | - | - | Quick Connect - 0.058" (Round) | Circular - 12.40mm Dia | 15/32-32 | - | - | -55°C ~ 85°C |
|
|
25ET122-TSWITCH TOGGLE SPDT 4A 28V |
0 |
|
Datasheet |
ET | Bulk | Obsolete | Panel Mount | SPDT | On-Mom | 4A (DC) | - | 28 V | Paddle | 17.53mm | Non-Illuminated | - | - | Solder Turret | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | Magnetic Hold | -65°C ~ 71°C |
|
|
15AT17SWITCH TOGGLE 4PDT 15A 125V |
0 |
|
- |
AT | Bulk | Active | Panel Mount | 4PDT | On-On | 15A (AC) | 125 V | - | Standard Round | 22.35mm | Non-Illuminated | - | - | Screw Terminal | - | - | - | - | - |
|
|
62AT811-3SWITCH TOGGLE DPDT |
0 |
|
Datasheet |
AT | Bulk | Active | Panel Mount | DPDT | On-On | - | - | - | Standard Round | - | Non-Illuminated | - | - | - | - | - | - | - | - |
|
|
62AT811-3GSWITCH TOGGLE DPDT |
0 |
|
Datasheet |
AT | Bulk | Active | Panel Mount | DPDT | On-On | - | - | - | Locking Lever | - | Non-Illuminated | - | - | - | - | - | - | - | - |
|
|
62AT811-82SWITCH TOGGLE DPDT |
0 |
|
Datasheet |
AT | Bulk | Active | Panel Mount | DPDT | On-Mom | - | - | - | Standard Round | - | Non-Illuminated | - | - | - | - | - | - | - | - |
|
|
64AT811-1ESWITCH TOGGLE 4PDT |
0 |
|
Datasheet |
AT | Bulk | Active | Panel Mount | 4PDT | On-Off-On | - | - | - | Locking Lever | - | Non-Illuminated | - | - | - | - | - | - | - | - |
