Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
112TW26-3SWITCH TOGGLE DPDT 2A 115V |
0 |
|
Datasheet |
TW | Bulk | Obsolete | Panel Mount | DPDT | On-On | 2A (AC) | 115 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | IWTS | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
102TL2263-7SWITCH TOGGLE DPDT 6A 230V |
0 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 6A (AC), 7.5A (DC) | 230 V | 28 V | - | - | Non-Illuminated | - | - | IWTS | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | Black Anodized | -65°C ~ 71°C |
|
|
102TL2164-70SWITCH TOGGLE DPDT 7.5A 125V |
0 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | DPDT | Mom-On-Mom | 7.5A (AC/DC) | 125 V | 28 V | Flatted | 16.51mm | Non-Illuminated | - | - | IWTS | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
104TL2-8SWITCH TOGGLE 4PDT 7.5A 115V |
0 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | 4PDT | On-Mom | 7.5A (AC/DC) | 115 V | 30 V | Standard Round | 17.27mm | Non-Illuminated | - | - | IWTS | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
62AT34-3SWITCH TOGGLE DPDT 1A 30V |
0 |
|
Datasheet |
AT | Bulk | Active | Panel Mount | DPDT | On-On | 1A (DC) | - | 30 V | Standard Round | 17.27mm | Non-Illuminated | - | - | Quick Connect - 0.058" (Round) | Circular - 12.40mm Dia | 15/32-32 | - | - | - |
|
|
13AT239-T2-LSWITCH TOGGLE DPDT 5A 250V |
0 |
|
Datasheet |
AT | Bulk | Obsolete | Panel Mount | DPDT | Mom-Off-Mom | 5A (AC/DC) | 250 V | 30 V | Locking Lever | 30.00mm | Non-Illuminated | - | - | Solder Turret | Circular - 12.40mm Dia | 15/32-32 | - | - | - |
|
|
104TL2-3FSWITCH TOGGLE 4PDT 7.5A 115V |
0 |
|
Datasheet |
TL | Bulk | Obsolete | Panel Mount | 4PDT | On-On | 7.5A (AC/DC) | 115 V | 30 V | Locking Lever | 26.67mm | Non-Illuminated | - | - | IWTS | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
112TW86-1ESWITCH TOGGLE DPDT 2A 115V |
0 |
|
Datasheet |
TW | Bulk | Active | Panel Mount | DPDT | On-Off-On | 2A (AC) | 115 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | IWTS | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
13AT10-SSWITCH TOGGLE 4PDT 5A 250V |
0 |
|
Datasheet |
AT | Bulk | Active | Panel Mount | 4PDT | On-Off-Mom | 5A (AC/DC) | 250 V | 30 V | Standard Round | 17.53mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | - | - | - |
|
|
13AT475-T2SWITCH TOGGLE 3PDT 5A 115V |
0 |
|
Datasheet |
AT | Bulk | Obsolete | Panel Mount | 3PDT | On-Off-On | 5A (AC/DC) | 115 V | 28 V | Flatted | 16.26mm | Non-Illuminated | - | - | Solder Turret | Circular - 12.40mm Dia | 15/32-32 | - | - | - |
|
|
62AT22-82SWITCH TOGGLE DPDT 7A 115V |
0 |
|
Datasheet |
AT | Bulk | Active | Panel Mount | DPDT | On-Mom | 7A (AC/DC) | 115 V | 28 V | Standard Round | 17.27mm | Non-Illuminated | - | - | Quick Connect - 0.058" (Round) | Circular - 12.40mm Dia | 15/32-32 | - | - | -55°C ~ 85°C |
|
|
23AT118-T2SWITCH TOGGLE DPDT 5A 250V |
0 |
|
Datasheet |
AT | Bulk | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 250 V | 30 V | Standard Round | 17.53mm | Non-Illuminated | - | - | Solder Turret | Circular - 12.40mm Dia | 15/32-32 | - | - | - |
|
|
13AT1-ESWITCH TOGGLE DPDT 5A 250V |
0 |
|
Datasheet |
AT | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 5A (AC/DC) | 250 V | 30 V | Locking Lever | 30.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.40mm Dia | 15/32-32 | - | - | - |
|
|
13AT219-5-C02SWITCH TOGGLE DPDT 1A 115V |
0 |
|
Datasheet |
AT | Bulk | Active | Panel Mount | DPDT | On-Off-Mom | 1A (AC/DC) | 115 V | 28 V | Flatted | 19.81mm | Non-Illuminated | - | - | Quick Connect - 0.058" (Round) | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | Black Actuator | - |
|
|
62AT22-3DSWITCH TOGGLE DPDT 7A 115V |
0 |
|
Datasheet |
AT | Bulk | Active | Panel Mount | DPDT | On-On | 7A (AC/DC) | 115 V | 28 V | Locking Lever | 30.00mm | Non-Illuminated | - | - | Quick Connect - 0.058" (Round) | Circular - 12.40mm Dia | 15/32-32 | - | - | -55°C ~ 85°C |
|
|
23AT1-DSWITCH TOGGLE DPDT 5A 125V |
0 |
|
Datasheet |
AT | Bulk | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Locking Lever | 30.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.40mm Dia | 15/32-32 | - | - | - |
|

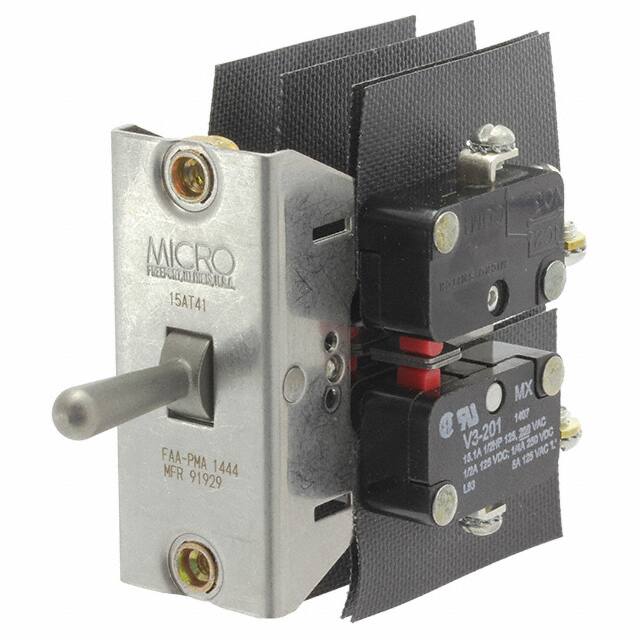

15AT41SWITCH TOGGLE 6PDT 15A 125V |
0 |
|
Datasheet |
AT | Bulk | Obsolete | Panel Mount | 6PDT | On-Off-On | 15A (AC) | 125 V | - | Standard Round | 22.35mm | Non-Illuminated | - | - | Screw Terminal | - | - | - | - | - |
|
|
31AT417-T2SWITCH TOGGLE SP3T 5A 250V |
0 |
|
Datasheet |
AT | Bulk | Active | Panel Mount | SP3T | On-On-On | 5A (AC/DC) | 250 V | 30 V | Flatted | 16.26mm | Non-Illuminated | - | - | Solder Turret | Circular - 12.40mm Dia | 15/32-32 | - | Jumper needed to achieve triple throw | - |
|
|
32AT11-T2SWITCH TOGGLE DPDT 1A 30V |
0 |
|
Datasheet |
AT | Bulk | Active | Panel Mount | DPDT | On-On | 1A (DC) | - | 30 V | Standard Round | 17.53mm | Non-Illuminated | - | - | Solder Turret | Circular - 12.40mm Dia | 15/32-32 | - | - | - |
|
|
32AT2SWITCH TOGGLE 3PDT 5A 250V |
0 |
|
Datasheet |
AT | Bulk | Active | Panel Mount | 3PDT | On-On | 5A (AC/DC) | 250 V | 30 V | Standard Round | 17.53mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.40mm Dia | 15/32-32 | - | - | - |
