Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
5636ADGK0382VTOGGLE SWITCH 5000 MINIATURE |
0 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|
|
12146AG038TOGGLE SWITCH 12000 HIGH SPEC |
0 |
|
- |
12000 | Bulk | Active | Panel Mount | DP3T | On-On | 4A (DC) | - | 30 V | Standard Round | 17.30mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.00mm Dia | 15/32-32 | - | - | -40°C ~ 85°C |
|
|
664103LMK2V/2TOGGLE SWITCH 6000 MIL GRADE |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
4TL1-10MSWITCH TOGGLE 4PDT 15A 125V |
0 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | 4PDT | On-On-On | 15A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
4TL11-76SWITCH TOGGLE 4PDT 10A 125V |
0 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | 4PDT | Mom-On-Mom | 10A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
4TL11-10SWITCH TOGGLE 4PDT 15A 125V |
0 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | 4PDT | On-On-On | 15A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
4TL1-10PSWITCH TOGGLE 4PDT 15A 125V |
0 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | 4PDT | On-On-On | 15A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|

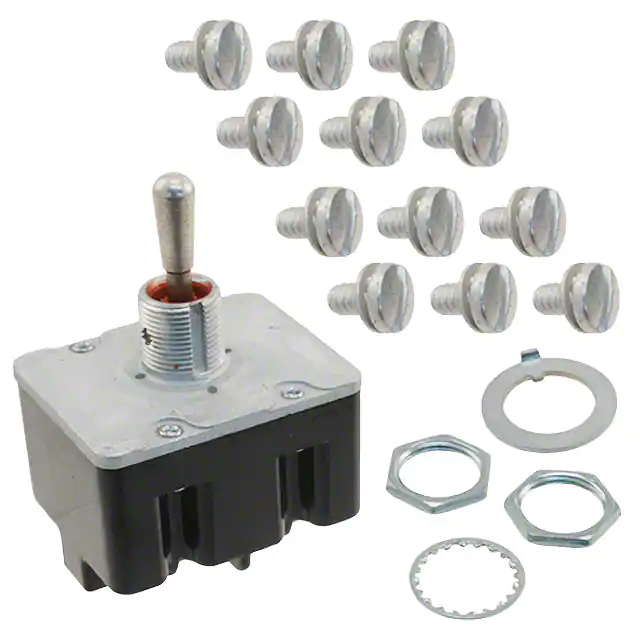

4TL1-72ESWITCH TOGGLE 4PDT 10A 125V |
0 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | 4PDT | Mom-On-Mom | 10A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
2TL133-10SWITCH TOGGLE SP3T 15A 125V |
0 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | SP3T | On-On-On | 15A (AC) | 125 V | - | Bar | 17.78mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | Jumper needed to achieve triple throw | -65°C ~ 71°C |
|
|
4TL1-72SWITCH TOGGLE 4PDT 10A 125V |
0 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | 4PDT | Mom-On-Mom | 10A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
12144AD2G3VTOGGLE SWITCH 12000 HIGH SPEC |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
12144AD23VX545TOGGLE SWITCH 12000 HIGH SPEC |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
3546021G002TOGGLE SWITCH 3500 IP67 SEALED |
0 |
|
Datasheet |
3500 | Bulk | Active | Panel Mount | SPST | On-On | 15A (DC) | - | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | 15/32-32 | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | -40°C ~ 85°C |
|
|
12147AD2GK1VTOGGLE SWITCH 12000 HIGH SPEC |
0 |
|
- |
12000 | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 4A (DC) | - | 30 V | Locking Lever | 19.38mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.00mm Dia | 15/32-32 | - | - | -40°C ~ 85°C |
|
|
11166ASWITCH TOGGLE 4PDT 4A 125V |
0 |
|
Datasheet |
11000 | Bulk | Active | Panel Mount | 4PDT | On-On | 4A (AC/DC) | 125 V | 30 V | Standard Round | 11.30mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
12246AD2GK2VTOGGLE SWITCH 12000 HIGH SPEC |
0 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
12246AD2K1VX545TOGGLE SWITCH 12000 HIGH SPEC |
0 |
|
- |
12000 | Bulk | Active | Panel Mount | DP3T | On-On | 4A (DC) | - | 30 V | Locking Lever | 19.38mm | Non-Illuminated | - | - | PC Pin | Circular - 12.00mm Dia | 15/32-32 | - | - | -40°C ~ 85°C |
|
|
12169ATOGGLE SWITCH 12000 HIGH SPEC |
0 |
|
Datasheet |
12000 | Bulk | Active | Panel Mount | 4PDT | On-Off-On | 4A (DC) | - | 30 V | Standard Round | 17.30mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.00mm Dia | 15/32-32 | - | - | -40°C ~ 85°C |
|
|
12TW1-1ESWITCH TOGGLE DPDT 5A 125V |
0 |
|
Datasheet |
TW | Bulk | Obsolete | Panel Mount | DPDT | On-Off-On | 5A (AC) | 125 V | - | Locking Lever | 29.46mm | Non-Illuminated | - | - | Solder Turret | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
3531006BD02TOGGLE SWITCH 3500 IP67 SEALED |
0 |
|
Datasheet |
3500 | Bulk | Active | Panel Mount | SPST | On-Off | 15A (DC) | - | 28 V | Standard Round | 25.40mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | 15/32-32 | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | -40°C ~ 85°C |
