Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A423P41D91CGSWITCH TOGGLE 4PDT 6A 125V |
0 |
|
Datasheet |
A | Bulk | Active | Through Hole | 4PDT | On-On | 6A (AC/DC) | 125 V | 28 V | Flatted | 6.35mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
1-1520230-0SWITCH TOGGLE DPST 20A 250V |
0 |
|
Datasheet |
- | Bulk | Active | Panel Mount | DPST | On-Off | 20A (AC) | 250 V | - | Standard Round | 20.27mm | Non-Illuminated | - | - | Screw Terminal | - | 15/32-32 | - | - | - |
|
|
1520230-9SWITCH TOGGLE 20A 250V |
0 |
|
Datasheet |
- | Bulk | Active | Panel Mount | - | - | 20A (AC) | 250 V | - | Standard Round | 20.60mm | Non-Illuminated | - | - | Screw Terminal | - | 15/32-32 | - | - | - |
|
|
A434T1TWZQSWITCH TOGGLE 4PDT 6A 125V |
0 |
|
Datasheet |
A | Bulk | Active | Panel Mount | 4PDT | On-Mom | 6A (AC/DC) | 125 V | 28 V | Standard Round | 17.45mm | Non-Illuminated | - | - | Solder Lug | - | 15/32-32 | Splash Proof | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
5647MAKTOGGLE SWITCH 5000 MINIATURE |
0 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 15/32-32 | - | - | -40°C ~ 85°C |
|
101TL2-1SWITCH TOGGLE SPDT 7.5A 115V |
0 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | SPDT | On-Off-On | 7.5A (AC/DC) | 115 V | 30 V | Standard Round | 17.27mm | Non-Illuminated | - | - | IWTS | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
5666MADTOGGLE SWITCH 5000 MINIATURE |
0 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | 4PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 15/32-32 | - | - | -40°C ~ 85°C |
|
|
5652AGKBTOGGLE SWITCH 5000 MINIATURE |
0 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | 3PDT | On-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|
|
2-1520228-3SWITCH TOGGLE DPST 20A 125V |
0 |
|
Datasheet |
- | Bulk | Active | Panel Mount | DPST | On-Off | 20A (AC/DC) | 125 V | 125 V | Standard Round | 19.81mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | 15/32-32 | - | - | - |
|
|
A433P32YZQSWITCH TOGGLE DP3T 6A 125V |
0 |
|
Datasheet |
A | Bulk | Active | Panel Mount | DP3T | On-On-Mom | 6A (AC/DC) | 125 V | 28 V | Flatted | 11.38mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 90°C |
|
|
1TL48-3SWITCH TOGGLE SPDT 15A 125V |
0 |
|
Datasheet |
TL | Bulk | Obsolete | Panel Mount | SPDT | On-On | 15A (AC) | 125 V | - | Standard Round | 22.22mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | White Actuator | -65°C ~ 71°C |
|
|
LW1A11Z1165100SWITCH TOGGLE 8A 14V |
0 |
|
- |
LW | Bulk | Active | Panel Mount, Snap-In | - | - | 8A (DC) | - | 14 V | Flatted | 27.48mm | Illuminated | LED, Green | - | Quick Connect - 0.187" (4.7mm) | Rectangular - 44.17mm x 22.00mm | - | - | - | -25°C ~ 85°C |
|
|
6421A03LMSWITCH TOGGLE SPST 10A 125V |
0 |
|
Datasheet |
6000 | Bulk | Active | Panel Mount | SPST | On-Off | 10A (AC), 6.5A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | 15/32-32 | - | Matte Black Finish | -40°C ~ 85°C |
|
2TW1-1SWITCH TOGGLE DPDT 5A 125V |
0 |
|
Datasheet |
TW | Bulk | Obsolete | Panel Mount | DPDT | On-Off-On | 5A (AC) | 125 V | - | Standard Round | 10.67mm | Non-Illuminated | - | - | Solder Turret | Circular - 6.60mm Dia | 1/4-40 | Environment Sealed | - | -65°C ~ 71°C |
|

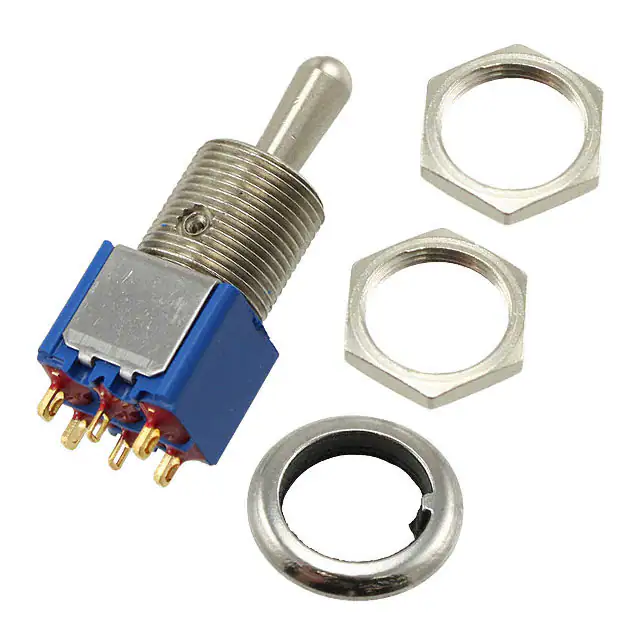

5648MCDKB27SWITCH TOGGLE DPDT 0.4VA 20V |
0 |
|
Datasheet |
5000M | Tray | Active | Panel Mount | DPDT | On-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 11.70mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | 15/32-32 | - | Front Panel Sealing | -40°C ~ 85°C |
|
|
12TL1-50MSWITCH TOGGLE DPDT 10A 125V |
0 |
|
Datasheet |
TL | Bulk | Obsolete | Panel Mount | DPDT | On-On-Mom | 10A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Solder Turret | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
2TL256-3SWITCH TOGGLE DPDT 15A 125V |
0 |
|
Datasheet |
TL | Bulk | Obsolete | Panel Mount | DPDT | On-On | 15A (AC), 20A (DC) | 125 V | 28 V | Standard Round | 17.27mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
2TL133-3SWITCH TOGGLE DPDT 15A 125V |
0 |
|
Datasheet |
TL | Bulk | Obsolete | Panel Mount | DPDT | On-On | 15A (AC) | 125 V | - | Bar | 17.78mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
A421K12KZGSWITCH TOGGLE 4PDT 6A 125V |
0 |
|
Datasheet |
A | Bulk | Active | Panel Mount | 4PDT | On-Off-On | 6A (AC/DC) | 125 V | 28 V | Locking Lever | 15.47mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
12TW19-70-A002SWITCH TOGGLE DPDT 5A 125V |
0 |
|
Datasheet |
TW | Bulk | Obsolete | Panel Mount | DPDT | Mom-On-Mom | 5A (AC) | 125 V | - | Flatted | 25.40mm | Non-Illuminated | - | - | Solder Turret | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | Black Actuator | -65°C ~ 71°C |
