Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A327K12KZQSWITCH TOGGLE 3PDT 6A 125V |
0 |
|
Datasheet |
A | Bulk | Active | Panel Mount | 3PDT | Mom-Off-Mom | 6A (AC/DC) | 125 V | 28 V | Locking Lever | 15.47mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
5269ADBTOGGLE SWITCH 5000 MINIATURE |
0 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | 4PDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|
|
644H3VSWITCH TOGGLE SP3T 10A 250V |
0 |
|
Datasheet |
600H | Bulk | Active | Panel Mount | SP3T | On-On-On | 10A (AC) | 250 V | - | Locking Lever | 20.40mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | 15/32-32 | - | Jumper needed to achieve triple throw | -20°C ~ 55°C |
|
|
HM25M-73SWITCH TOGGLE 3PDT 15A 125V |
0 |
|
Datasheet |
H | Bulk | Active | Panel Mount | 3PDT | Mom-Off-Mom | 15A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
HL26A-73SWITCH TOGGLE 3PDT 6A 125V |
0 |
|
Datasheet |
H | Bulk | Active | Panel Mount | 3PDT | On-Mom | 6A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
HM25L-73SWITCH TOGGLE 3PDT 15A 125V |
0 |
|
Datasheet |
H | Bulk | Active | Panel Mount | 3PDT | Mom-Off-Mom | 15A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
HM25B-73SWITCH TOGGLE 3PDT 15A 125V |
0 |
|
Datasheet |
H | Bulk | Active | Panel Mount | 3PDT | On-Off-Mom | 15A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
HM25A-73SWITCH TOGGLE 3PDT 15A 125V |
0 |
|
Datasheet |
H | Bulk | Active | Panel Mount | 3PDT | On-Off-Mom | 15A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
HL25A-73SWITCH TOGGLE 3PDT 15A 125V |
0 |
|
Datasheet |
H | Bulk | Active | Panel Mount | 3PDT | On-Mom | 15A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
11136AD2GTOGGLE SWITCH 11000 HIGH SPEC |
0 |
|
Datasheet |
11000 | Bulk | Active | Panel Mount | SPDT | On-On | 4A (DC) | - | 30 V | Standard Round | 11.30mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|
|
1520138-1SWITCH TOGGLE DPST 20A 125V |
0 |
|
- |
- | Bulk | Active | - | DPST | On-Off | 20A (AC) | 125 V | - | Standard Round | 16.99mm | - | - | - | - | - | - | - | - | - |
|
|
5256WADB16ULTOGGLE SWITCH 5000 MINIATURE |
0 |
|
Datasheet |
5000 | Bulk | Active | Through Hole, Right Angle, Vertical | 3PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 13.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -40°C ~ 85°C |
|

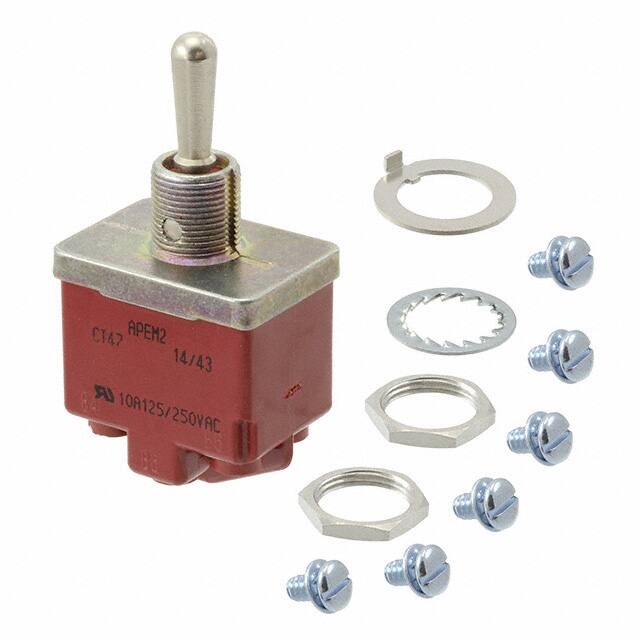

CT47001N020SWITCH TOGGLE DPDT 10A 125V |
0 |
|
Datasheet |
CT | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 10A (AC), 15A (DC) | 125 V | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | Sealed - Fully | -40°C ~ 85°C |
|
M83731/10-212SWITCH TOGGLE DPDT 5A 115V |
0 |
|
Datasheet |
M83731 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 5A (AC/DC) | 115 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -25°C ~ 71°C |
|
|
5256WCDB16SWITCH TOGGLE 3PDT 0.4VA 20V |
0 |
|
Datasheet |
5000 | Bulk | Active | Through Hole, Right Angle | 3PDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 8.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | Unthreaded | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
2NT1-70SWITCH TOGGLE DPDT 10A 125V |
0 |
|
Datasheet |
NT | Bulk | Active | Panel Mount | DPDT | Mom-On-Mom | 10A (AC) | 125 V | - | Standard Round | 17.02mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | IP67/IP68 - Dust Tight, Waterproof | Sealed | -40°C ~ 71°C |
|
|
2TL119-7-A02SWITCH TOGGLE DPDT 10A 125V |
0 |
|
Datasheet |
TL | Bulk | Obsolete | Panel Mount | DPDT | Mom-Off-Mom | 10A (AC) | 125 V | - | Flatted | 29.13mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | Black Actuator | -65°C ~ 71°C |
|
|
1TL11-82SWITCH TOGGLE SPDT 10A 125V |
0 |
|
Datasheet |
TL | Bulk | Obsolete | Panel Mount | SPDT | On-Mom | 10A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
5636ADG2VTOGGLE SWITCH 5000 MINIATURE |
0 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|
|
TT43N2TSWITCH TOGGLE 4PDT 3A 125V |
0 |
|
Datasheet |
TT | Bulk | Obsolete | Panel Mount | 4PDT | On-On | 3A (AC/DC) | 125 V | 28 V | Standard Round | 7.52mm | Non-Illuminated | - | - | Solder Lug | Circular - 4.83mm Dia | 10-48 | - | - | -30°C ~ 85°C |
