Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IK250-73SWITCH TOGGLE 4PST 15A 125V |
0 |
|
- |
I | Bulk | Active | Panel Mount | 4PST | On-Off | 15A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
IK251-73SWITCH TOGGLE 4PST 15A 125V |
0 |
|
- |
I | Bulk | Active | Panel Mount | 4PST | On-Off | 15A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
7403TZGESWITCH TOGGLE 4PDT 0.4VA 20V |
0 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | 4PDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 17.45mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.91mm Dia | - | - | - | -30°C ~ 85°C |
|
|
TL22SDAG015D-AT401PFULLY ILLUMINATED TOGGLE |
2 |
|
- |
TL | Bulk | Obsolete | Panel Mount | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Flatted | 11.00mm | Illuminated | LED, Amber | 2.1 VDC | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | IP65 - Dust Tight, Water Resistant | - | -10°C ~ 55°C |
|
|
A121K12KZGSWITCH TOGGLE SPDT 6A 125V |
0 |
|
Datasheet |
A | Bulk | Active | Panel Mount | SPDT | On-Off-On | 6A (AC/DC) | 125 V | 28 V | Locking Lever | 15.47mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A121P32Y5ZQSWITCH TOGGLE SPDT 6A 125V |
0 |
|
Datasheet |
A | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC/DC) | 125 V | 28 V | Flatted | 11.38mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | Satin Chrome Actuator | -30°C ~ 90°C |
|
|
A131P32Y5ZQSWITCH TOGGLE SPDT 6A 125V |
0 |
|
Datasheet |
A | Bulk | Active | Panel Mount | SPDT | On-Off-Mom | 6A (AC/DC) | 125 V | 28 V | Flatted | 11.38mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | Satin Chrome Actuator | -30°C ~ 90°C |
|
|
A221S1YZGSWITCH TOGGLE DPDT 6A 125V |
0 |
|
Datasheet |
A | Bulk | Active | Panel Mount | DPDT | On-Off-On | 6A (AC/DC) | 125 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A226M1D9AQSWITCH TOGGLE DPDT 6A 125V |
0 |
|
Datasheet |
A | Bulk | Active | Through Hole, Right Angle | DPDT | On-Mom | 6A (AC/DC) | 125 V | 28 V | Standard Round | 5.08mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A232L11YZQSWITCH TOGGLE SP3T 6A 125V |
0 |
|
Datasheet |
A | Bulk | Active | Panel Mount | SP3T | On-On-On | 6A (AC/DC) | 125 V | 28 V | Standard Round | 16.26mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 90°C |
|
|
A232P41DCQSWITCH TOGGLE SP3T 6A 125V |
0 |
|
Datasheet |
A | Bulk | Active | Panel Mount | SP3T | On-On-On | 6A (AC/DC) | 125 V | 28 V | Flatted | 6.35mm | Non-Illuminated | - | - | PC Pin | - | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 90°C |
|
|
A232S1CWZG-M8SWITCH TOGGLE SP3T 6A 125V |
0 |
|
Datasheet |
A | Bulk | Active | Panel Mount | SP3T | On-On-On | 6A (AC/DC) | 125 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | Splash Proof | Jumper needed to achieve triple throw | -30°C ~ 90°C |
|
|
A235T1TCQSWITCH TOGGLE SP3T 6A 125V |
0 |
|
Datasheet |
A | Bulk | Active | Panel Mount | SP3T | Mom-On-Mom | 6A (AC/DC) | 125 V | 28 V | Standard Round | 17.45mm | Non-Illuminated | - | - | PC Pin | - | 15/32-32 | - | Jumper needed to achieve triple throw | -30°C ~ 90°C |
|
|
WT223S1D1V30GSWITCH TOGGLE DPDT 6A 125V |
0 |
|
Datasheet |
WT | Bulk | Active | Through Hole | DPDT | On-On | 6A (AC/DC) | 125 V | 28 V | Standard Round | 12.90mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -30°C ~ 85°C |
|
1TL1-31SWITCH TOGGLE SPDT 15A 125V |
0 |
|
Datasheet |
TL | Bulk | Active | Panel Mount | SPDT | On-On | 15A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
1NT91-7SWITCH TOGGLE SPDT 10A 125V |
0 |
|
Datasheet |
NT | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 10A (AC) | 125 V | - | Standard Round | 17.02mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.40mm Dia | 15/32-32 | IP67/IP68 - Dust Tight, Waterproof | Sealed | -40°C ~ 71°C |
|

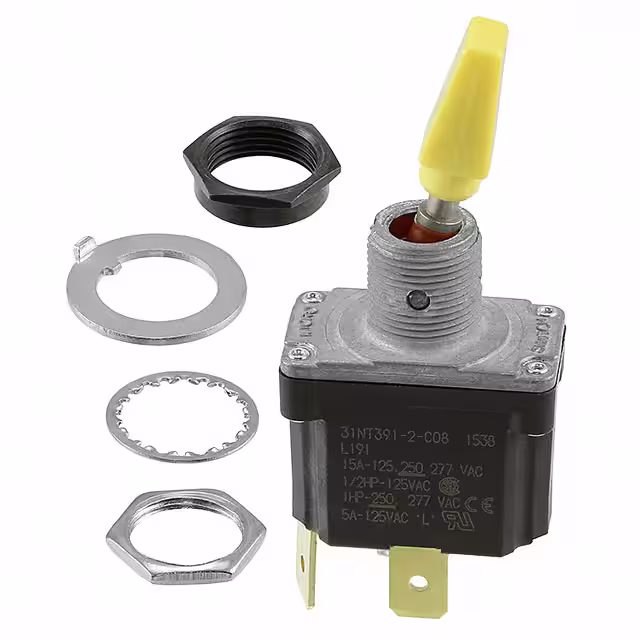

31NT391-2-C08SWITCH TOGGLE SPST 15A 125V |
0 |
|
Datasheet |
NT | Bulk | Active | Panel Mount | SPST | On-Off | 15A (AC) | 125 V | - | Flatted | 22.35mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.40mm Dia | 15/32-32 | IP67/IP68 - Dust Tight, Waterproof | Yellow Actuator | -40°C ~ 71°C |
|
|
STA251-53SWITCH TOGGLE DPST 15A 125V |
0 |
|
- |
ST | Bulk | Active | Panel Mount | DPST | On-Off | 15A (AC) | 125 V | - | Standard Round | 14.25mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | - | IP68 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
5249WWAB16X445TOGGLE SWITCH 5000 MINIATURE |
0 |
|
Datasheet |
5000 | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 13.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -40°C ~ 85°C |
|
|
STA2E1-73SWITCH TOGGLE DPST 16A 24V |
0 |
|
- |
ST | Bulk | Active | Panel Mount | DPST | On-Off | 16A (DC) | - | 24 V | Standard Round | 17.45mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | - | IP68 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
