Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
LA1T-3C6SWITCH TOGGLE DPDT 5A 30V |
0 |
|
- |
L6 | Bulk | Active | Panel Mount | DPDT | On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 13.20mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 16.20mm Dia | Unthreaded | IP65 - Dust Tight, Water Resistant | - | -25°C ~ 55°C |
|
|
5256CDB16TOGGLE SWITCH 5000 MINIATURE |
0 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | 3PDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|

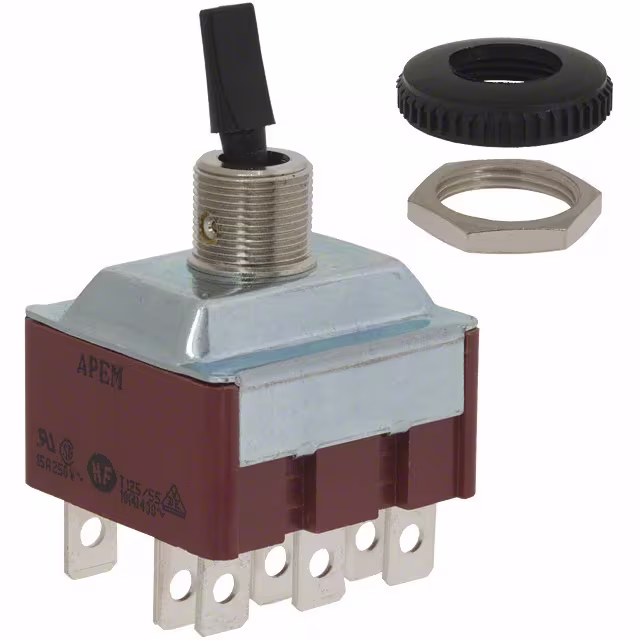

656NH/2SWITCH TOGGLE 3PDT 15A 250V |
0 |
|
Datasheet |
600NH | Bulk | Active | Panel Mount | 3PDT | On-On | 15A (AC) | 250 V | - | Flatted | 13.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | M12 x 0.75 | - | - | -20°C ~ 55°C |
|
632NT91-1SWITCH TOGGLE DPDT 15A 125V |
0 |
|
Datasheet |
NT | Bulk | Active | Panel Mount | DPDT | On-Off-On | 15A (AC) | 125 V | - | Standard Round | 17.02mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.40mm Dia | 15/32-32 | IP67/IP68 - Dust Tight, Waterproof | Sealed | -40°C ~ 71°C |
|
|
LT-2511-620-012SWITCH TOGGLE DPST 15A 125V |
0 |
|
- |
LT | Bulk | Active | Panel Mount | DPST | On-Off | 15A (AC/DC) | 125 V | 28 V | Standard Round | 18.16mm | Illuminated | Incandescent, Amber | 12 VAC/DC | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
LT-2511-601-012SWITCH TOGGLE DPST 15A 125V |
0 |
|
- |
LT | Bulk | Active | Panel Mount | DPST | On-Off | 15A (AC/DC) | 125 V | 28 V | Standard Round | 18.16mm | Illuminated | Incandescent, Red | 12 VAC/DC | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
LT-2511-630-012SWITCH TOGGLE DPST 15A 125V |
0 |
|
- |
LT | Bulk | Active | Panel Mount | DPST | On-Off | 15A (AC/DC) | 125 V | 28 V | Standard Round | 18.16mm | Illuminated | Incandescent, Green | 12 VAC/DC | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
LT-2510-640-012SWITCH TOGGLE DPST 15A 125V |
0 |
|
- |
LT | Bulk | Active | Panel Mount | DPST | On-Off | 15A (AC/DC) | 125 V | 28 V | Standard Round | 18.16mm | Illuminated | Incandescent, Blue | 12 VAC/DC | Solder Lug | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
LT-2511-610-012SWITCH TOGGLE DPST 15A 125V |
0 |
|
- |
LT | Bulk | Active | Panel Mount | DPST | On-Off | 15A (AC/DC) | 125 V | 28 V | Standard Round | 18.16mm | Illuminated | Incandescent, Red | 12 VAC/DC | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
LT-2511-613-012SWITCH TOGGLE DPST 15A 125V |
0 |
|
- |
LT | Bulk | Active | Panel Mount | DPST | On-Off | 15A (AC/DC) | 125 V | 28 V | Standard Round | 18.16mm | Illuminated | Incandescent, Green/Red | 12 VAC/DC | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
LT-2511-604-012SWITCH TOGGLE DPST 15A 125V |
0 |
|
- |
LT | Bulk | Active | Panel Mount | DPST | On-Off | 15A (AC/DC) | 125 V | 28 V | Standard Round | 18.16mm | Illuminated | - | 12 VAC/DC | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
LT-2511-640-012SWITCH TOGGLE DPST 15A 125V |
0 |
|
- |
LT | Bulk | Active | Panel Mount | DPST | On-Off | 15A (AC/DC) | 125 V | 28 V | Standard Round | 18.16mm | Illuminated | Incandescent, Blue | 12 VAC/DC | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
LT-2511-550-012SWITCH TOGGLE DPST 15A 125V |
0 |
|
- |
LT | Bulk | Active | Panel Mount | DPST | On-Off | 15A (AC/DC) | 125 V | 28 V | Standard Round | 18.16mm | Illuminated | Incandescent, Clear | 12 VAC/DC | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
LT-2511-603-012SWITCH TOGGLE DPST 15A 125V |
0 |
|
- |
LT | Bulk | Active | Panel Mount | DPST | On-Off | 15A (AC/DC) | 125 V | 28 V | Standard Round | 18.16mm | Illuminated | Incandescent, Green | 12 VAC/DC | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
LT-2511-644-012SWITCH TOGGLE DPST 15A 125V |
0 |
|
- |
LT | Bulk | Active | Panel Mount | DPST | On-Off | 15A (AC/DC) | 125 V | 28 V | Standard Round | 18.16mm | Illuminated | Incandescent, Blue | 12 VAC/DC | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
5656ABULCSASWITCH TOGGLE 3PDT 6A 125V |
0 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | 3PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
5659ABULCSASWITCH TOGGLE 3PDT 6A 125V |
0 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | 3PDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
SWW249CD7SWITCH TOGGLE DPDT 0.4VA 20V |
0 |
|
Datasheet |
S | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 7.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Sealed | -20°C ~ 85°C |
|
|
SWW246CD7SWITCH TOGGLE DPDT 0.4VA 20V |
0 |
|
Datasheet |
S | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 7.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Sealed | -20°C ~ 85°C |
|
7401K2ZBESWITCH TOGGLE 4PDT 0.4VA 20V |
0 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | 4PDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Locking Lever | 17.88mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
