Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7203K12CQESWITCH TOGGLE DPDT 5A 120V |
0 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Locking Lever | 18.59mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7303K2ZBESWITCH TOGGLE 3PDT 0.4VA 20V |
0 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | 3PDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Locking Lever | 17.88mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
LT-1514-131-012SWITCH TOGGLE SPST 15A 125V |
0 |
|
Datasheet |
LT | Bulk | Active | Panel Mount | SPST | On-Off | 15A (AC/DC) | 125 V | 28 V | Paddle | 15.87mm | Illuminated | Incandescent, Green/Red | 12 VAC/DC | Screw Terminal | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
LT-1514-130-024SWITCH TOGGLE SPST 15A 125V |
0 |
|
Datasheet |
LT | Bulk | Active | Panel Mount | SPST | On-Off | 15A (AC/DC) | 125 V | 28 V | Paddle | 15.87mm | Illuminated | Incandescent, Green | 24 VAC/DC | Screw Terminal | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
6GC5M-D-4B-BSWITCH TOGGLE SPDT 15A 125V |
0 |
|
- |
G | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 15A (AC) | 125 V | - | Paddle | 17.45mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
LT-1514-110-012SWITCH TOGGLE SPST 15A 125V |
0 |
|
Datasheet |
LT | Bulk | Active | Panel Mount | SPST | On-Off | 15A (AC/DC) | 125 V | 28 V | Paddle | 15.87mm | Illuminated | Incandescent, Red | 12 VAC/DC | Screw Terminal | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
LT-1514-130-012SWITCH TOGGLE SPST 15A 125V |
0 |
|
Datasheet |
LT | Bulk | Active | Panel Mount | SPST | On-Off | 15A (AC/DC) | 125 V | 28 V | Paddle | 15.87mm | Illuminated | Incandescent, Green | 12 VAC/DC | Screw Terminal | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
LT-1514-151-024SWITCH TOGGLE SPST 15A 125V |
0 |
|
Datasheet |
LT | Bulk | Active | Panel Mount | SPST | On-Off | 15A (AC/DC) | 125 V | 28 V | Paddle | 15.87mm | Illuminated | Incandescent, Clear/Red | 24 VAC/DC | Screw Terminal | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
LT-1514-110-024SWITCH TOGGLE SPST 15A 125V |
0 |
|
Datasheet |
LT | Bulk | Active | Panel Mount | SPST | On-Off | 15A (AC/DC) | 125 V | 28 V | Paddle | 15.87mm | Illuminated | Incandescent, Red | 24 VAC/DC | Screw Terminal | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
6GC5B-D-4B-BSWITCH TOGGLE SPDT 15A 125V |
0 |
|
- |
G | Bulk | Active | Panel Mount | SPDT | On-Off-Mom | 15A (AC) | 125 V | - | Paddle | 17.45mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
SW236A7SWITCH TOGGLE SPDT 5A 125V |
0 |
|
Datasheet |
S | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 5A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 7.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Sealed | -20°C ~ 85°C |
|
|
5247WWCDB16X445SWITCH TOGGLE DPDT 0.4VA 20V |
0 |
|
Datasheet |
5000 | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 8.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | Unthreaded | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
5248WWCDB16X445SWITCH TOGGLE DPDT 0.4VA 20V |
0 |
|
Datasheet |
5000 | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 8.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | Unthreaded | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
7211P3HZBESWITCH TOGGLE SP3T 0.4VA 20V |
0 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SP3T | On-On-On | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
MN12B2B1W01-AT401SSWITCH TOGGLE |
0 |
|
- |
M | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
MN23SS1G03SWITCH TOGGLE |
0 |
|
- |
M | Bulk | Active | Panel Mount | DPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
MN12B2B1W03-AT401SSWITCH TOGGLE |
0 |
|
- |
M | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | PC Pin | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
2GL64-63SWITCH TOGGLE DPDT 6A 125V |
0 |
|
- |
G | Bulk | Active | Panel Mount | DPDT | On-On | 6A (AC) | 125 V | - | Standard Round | 14.28mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|

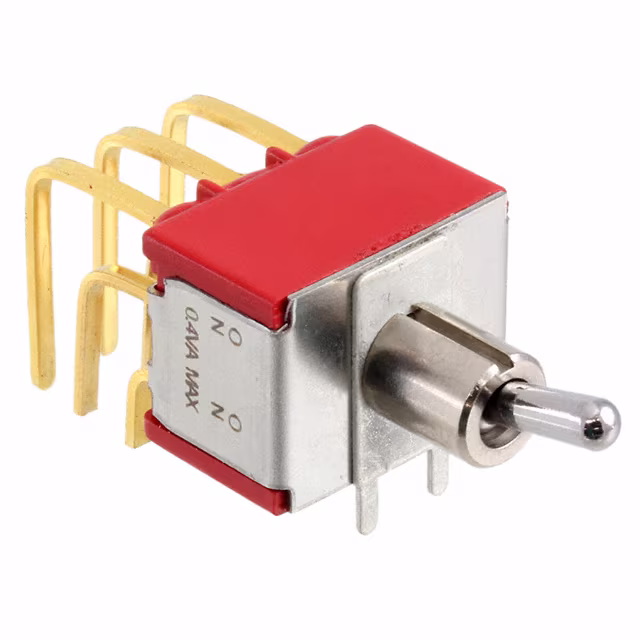

7301MD9AV2BESWITCH TOGGLE 3PDT 0.4VA 20V |
0 |
|
Datasheet |
7000 | Bulk | Active | Through Hole, Right Angle, Vertical | 3PDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
B13JJHCFSWITCH TOGGLE SPDT 0.4VA 28V |
0 |
|
Datasheet |
B | Bulk | Active | Through Hole, Right Angle | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.30mm | Illuminated | LED, Green/Red | 1.95, 3.3 VDC | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -25°C ~ 55°C |
Toggle Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Toggle Switches?
This category includes related Toggle Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Toggle Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Toggle Switches and other electronic components.
