Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7101P1YCBESWITCH TOGGLE SPDT 0.4VA 20V |
0 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 21.33mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
MN12SD8G01SWITCH TOGGLE |
0 |
|
- |
M | Bulk | Active | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | M6 x 0.75 | IP67 - Dust Tight, Waterproof | - | -30°C ~ 85°C |
|
|
MN15SD8G01SWITCH TOGGLE |
0 |
|
- |
M | Bulk | Active | Panel Mount | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | M6 x 0.75 | IP67 - Dust Tight, Waterproof | - | -30°C ~ 85°C |
|
|
7101P3DV61QESWITCH TOGGLE SPDT 5A 120V |
0 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 13.21mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
TL48Y000050TOGGLE SWITCH SMT TL PCB MOUNT |
0 |
|
- |
TL | Bulk | Active | Through Hole | DPDT | On-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -30°C ~ 85°C |
|
7203SH3ZBESWITCH TOGGLE DPDT 0.4VA 20V |
0 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.16mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2GC56-D-2B-BSWITCH TOGGLE SPDT 15A 125V |
0 |
|
- |
G | Bulk | Active | Panel Mount | SPDT | On-Off-On | 15A (AC) | 125 V | - | - | 17.45mm | Non-Illuminated | - | - | PC Pin | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
2GC56-73SWITCH TOGGLE SPDT 15A 125V |
0 |
|
- |
G | Bulk | Active | Panel Mount | SPDT | On-Off-On | 15A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | PC Pin | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
5632AB9X681TOGGLE SWITCH 5000 MINIATURE |
0 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | SPDT | On-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|
|
M2022LL4W01/USWITCH TOGGLE DPDT 6A 125V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | M6 x 0.75 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

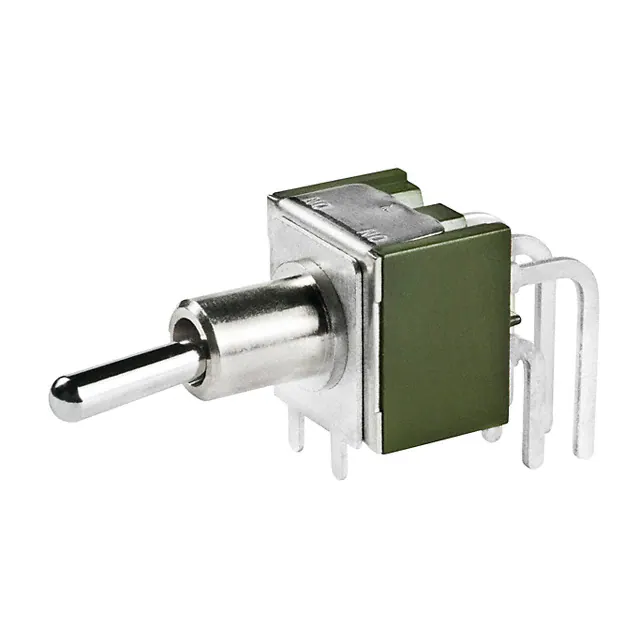

M2022SS2W30SWITCH TOGGLE DPDT 6A 125V |
0 |
|
Datasheet |
M | Tray | Obsolete | Through Hole, Right Angle | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7103T1CWZBESWITCH TOGGLE SPDT 0.4VA 20V |
0 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 12.37mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.91mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7101K12ZGETOGGLE SWITCHES |
0 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Locking Lever | 18.59mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
2GC50-NBL3SWITCH TOGGLE SPDT 15A 125V |
0 |
|
- |
G | Bulk | Active | Panel Mount | SPDT | On-Off-On | 15A (AC) | 125 V | - | Paddle | 17.45mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
2GB51-NBL3SWITCH TOGGLE SPDT 15A 125V |
0 |
|
- |
G | Bulk | Active | Panel Mount | SPDT | On-On | 15A (AC) | 125 V | - | Paddle | 17.45mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
2GA725-D-3B-BSWITCH TOGGLE SPST 20A 125V |
0 |
|
- |
G | Bulk | Active | Panel Mount | SPST | On-Off | 20A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Wire Leads | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
2GA725-D-1B-BSWITCH TOGGLE SPST 20A 125V |
0 |
|
- |
G | Bulk | Active | Panel Mount | SPST | On-Off | 20A (AC) | 125 V | - | - | 17.45mm | Non-Illuminated | - | - | Wire Leads | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
|
7201MYCBESWITCH TOGGLE DPDT 0.4VA 20V |
0 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.08mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2FA63-62/TABS/2 HEXSWITCH TOGGLE SPST 6A 125V |
0 |
|
- |
F | Bulk | Active | Panel Mount | SPST | On-Off | 6A (AC) | 125 V | - | - | - | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | -17.8°C ~ 65.6°C |
|
|
3-1571920-9SWITCH TOGGLE 4PDT 6A 125V |
0 |
|
Datasheet |
MTA Green | Bulk | Obsolete | Panel Mount | 4PDT | On-On | 6A (AC), 4A (DC) | 125 V | 28 V | Standard Round | 10.49mm | Non-Illuminated | - | - | PC Pin | Circular - 6.40mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
Toggle Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Toggle Switches?
This category includes related Toggle Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Toggle Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Toggle Switches and other electronic components.
