Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2011KS1W01SWITCH TOGGLE SPST 6A 125V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPST | On-Off | 6A (AC), 4A (DC) | 125 V | 30 V | Lever for Cap | - | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2012SS4W03SWITCH TOGGLE SPDT 6A 125V |
0 |
|
- |
M | Bulk | Obsolete | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | M6 x 0.75 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34CMDP12B3M6QESWITCH TOGGLE DPDT 3A 125V |
0 |
|
Datasheet |
34C | Bulk | Obsolete | Panel Mount, Right Angle | DPDT | On-On | 3A (AC/DC) | 125 V | 28 V | Standard Round | 5.33mm | Non-Illuminated | - | - | PC Pin | Circular - 4.95mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP6T7B13M3RESWITCH TOGGLE DP3T 0.4VA 20V |
0 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | SP3T | On-On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 12.98mm | Non-Illuminated | - | - | Quick Connect - 0.062" (1.5mm) | Circular - 11.91mm Dia | 15/32-32 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
2S1-MSP2-T2-B2-M2RESWITCH TOGGLE SPDT 0.4VA 20V |
0 |
|
- |
2S | Bulk | Active | Through Hole | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.99mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | - | -30°C ~ 85°C |
|
|
200AWMSP4T2A1M7QESWITCH TOGGLE SPDT 3A 120V |
0 |
|
Datasheet |
200A | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | Mom-Off-Mom | 3A (AC/DC) | 120 V | 28 V | Standard Round | 6.10mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP1K1B25M1QEHSWITCH TOGGLE DPDT 5A 120V |
0 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Locking Lever | 14.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34ASP11B1M1RTSWITCH TOGGLE SPDT 0.4VA 20V |
0 |
|
Datasheet |
34A | Bulk | Active | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
1003P3T1B1M2REHSWITCH TOGGLE 3PDT 0.4VA 20V |
0 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | 3PDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
1003P2T1B1M2REHSWITCH TOGGLE 3PDT 0.4VA 20V |
0 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | 3PDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
200AWMDP1T2A1M6RESWITCH TOGGLE DPDT 0.4VA 20V |
0 |
|
Datasheet |
200A | Bulk | Active | Through Hole, Right Angle | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.10mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2023S2A1G30SWITCH TOGGLE DPDT 0.4VA 28V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle | DPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2023S2A2G30SWITCH TOGGLE DPDT 0.4VA 28V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle | DPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP6T6B11M1RESWITCH TOGGLE DP3T 0.4VA 20V |
0 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | SP3T | On-On-On | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 12.29mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
A15JBSWITCH TOGGLE SPDT 0.4VA 28V |
0 |
|
Datasheet |
A | Bulk | Active | Through Hole | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|

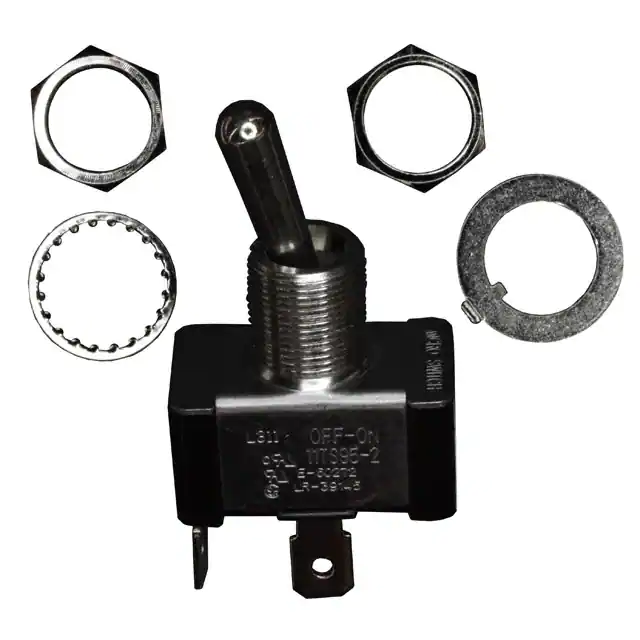

11TS95-2SWITCH TOGGLE SPST 20A 125V |
0 |
|
Datasheet |
TS | Bulk | Obsolete | Panel Mount | SPST | On-Off | 20A (AC) | 125 V | - | Standard Round | 16.51mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.40mm Dia | 15/32-32 | - | - | -54°C ~ 71°C |
|
|
M2028ES1W03SWITCH TOGGLE DPDT 6A 125V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Flatted | 11.40mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2SS-MSP1-T2-B4-M2PESWITCH TOGGLE SPDT 3A 125V |
0 |
|
- |
2S | Bulk | Active | Through Hole | SPDT | On-On | 3A (AC) | 125 V | 28 V | Standard Round | 3.55mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | - | -30°C ~ 85°C |
|
|
2M1-SP1-T8-B0-M2GESWITCH TOGGLE SPDT 5A 125V |
0 |
|
- |
2M | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 125 V | 28 V | Anti-Rotation | 17.50mm | Non-Illuminated | - | - | PC Pin | Circular - 11.91mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP6T2B4M6RESWITCH TOGGLE SP3T 0.4VA 20V |
0 |
|
Datasheet |
100 | Bulk | Active | Through Hole, Right Angle | SP3T | On-On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.08mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
Toggle Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Toggle Switches?
This category includes related Toggle Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Toggle Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Toggle Switches and other electronic components.
