Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATE1DGRA1SWITCH TOGGLE SPDT 0.4VA 20V |
0 |
|
Datasheet |
ATE | Bulk | Obsolete | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
|
1571925-4SWITCH TOGGLE SPDT 6A 125V |
0 |
|
- |
MTF Green | Bulk | Obsolete | Panel Mount | SPDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 28 V | Flatted | 12.32mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.40mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
|
100AWDP3T1B4M7QESWITCH TOGGLE DPDT 5A 120V |
0 |
|
Datasheet |
100A | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200MDP3T4B6VS2QESWITCH TOGGLE DPDT 3A 120V |
0 |
|
Datasheet |
200 | Tray | Active | Through Hole | DPDT | On-Off-On | 3A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2-1825139-2SWITCH TOGGLE DPDT 0.4VA 20V |
0 |
|
Datasheet |
Gemini A | Bulk | Active | Panel Mount | DPDT | On-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
5236CDBFSWITCH TOGGLE SPDT 0.4VA 20V |
0 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
100DP3T1B1M6RESWITCH TOGGLE DPDT 0.4VA 20V |
0 |
|
Datasheet |
100 | Bulk | Active | Panel Mount, Right Angle | DPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP1T9B1M7RESWITCH TOGGLE DPDT 0.4VA 20V |
0 |
|
Datasheet |
100 | Bulk | Active | Panel Mount, Right Angle, Vertical | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 21.34mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100SP1K1B25M1RESWITCH TOGGLE SPDT 0.4VA 20V |
0 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Locking Lever | 14.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34CMSP12B1M2QTSWITCH TOGGLE SPDT 3A 125V |
0 |
|
Datasheet |
34C | Bulk | Active | Panel Mount | SPDT | On-On | 3A (AC/DC) | 125 V | 28 V | Standard Round | 5.33mm | Non-Illuminated | - | - | PC Pin | Circular - 4.95mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34ASP27T7M2QTSWITCH TOGGLE SPDT 5A 125V |
0 |
|
Datasheet |
34A | Bulk | Active | Panel Mount | SPDT | On-Mom | 5A (AC/DC) | 125 V | 28 V | Standard Round | 12.37mm | Non-Illuminated | - | - | PC Pin | Circular - 11.91mm Dia | 15/32-32 | - | - | -30°C ~ 85°C |
|

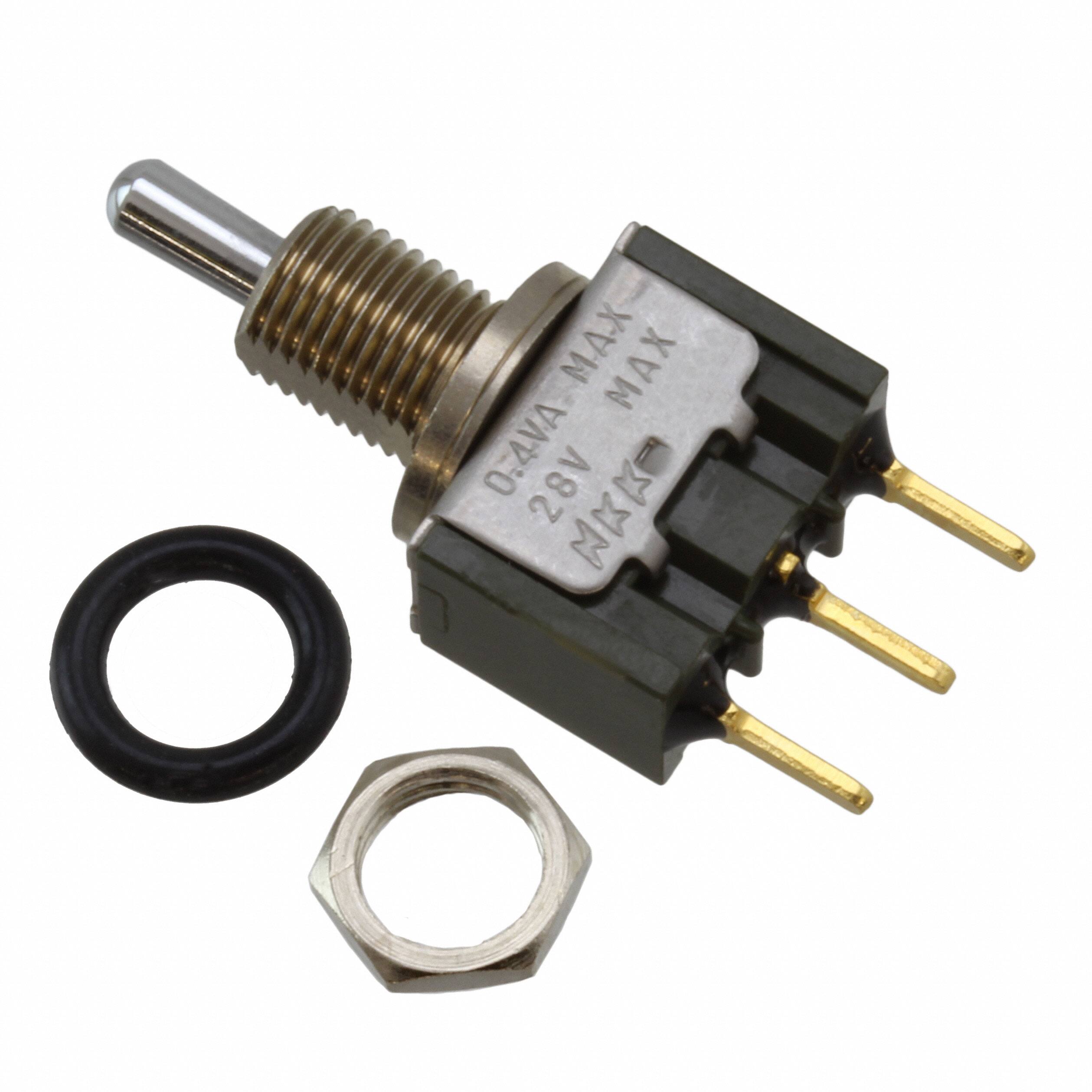

M2018S3D3G03SWITCH TOGGLE SPDT 0.4VA 28V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP1K1B25M2QESWITCH TOGGLE DPDT 5A 120V |
0 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Locking Lever | 14.40mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP4T6B11VS5REHSWITCH TOGGLE DPDT 0.4VA 20V |
0 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 12.30mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP1T6B12M7RESWITCH TOGGLE DPDT 0.4VA 20V |
0 |
|
Datasheet |
100 | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 12.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200RDP3T1B1M2RSWITCH TOGGLE DPDT 0.4VA 48V |
0 |
|
Datasheet |
200R | Bulk | Active | Through Hole | DPDT | On-Off-On | 0.4VA (AC/DC) | 48 V | 48 V | Standard Round | 6.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | - | -30°C ~ 85°C |
|
|
100AWDP4T1B4M6QESWITCH TOGGLE DPDT 5A 120V |
0 |
|
Datasheet |
100A | Bulk | Active | Through Hole, Right Angle | DPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
AE205SD1CQSWITCH TOGGLE DPDT 5A 120V |
0 |
|
Datasheet |
Gemini AE | Bulk | Obsolete | Through Hole | DPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -20°C ~ 85°C |
|
|
200MSP2T1B6M7RESWITCH TOGGLE SPDT 0.4VA 20V |
0 |
|
Datasheet |
200 | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 9.40mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP6T6B15M3QEHSWITCH TOGGLE DP3T 5A 120V |
0 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | SP3T | On-On-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 12.29mm | Non-Illuminated | - | - | Quick Connect - 0.062" (1.5mm) | Circular - 6.35mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
Toggle Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Toggle Switches?
This category includes related Toggle Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Toggle Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Toggle Switches and other electronic components.
