Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
100DP1T1B4VS2QESWITCH TOGGLE DPDT 5A 120V |
0 |
|
Datasheet |
100 | Bulk | Active | Through Hole | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100SP4T6B11M2REHSWITCH TOGGLE SPDT 0.4VA 20V |
0 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 12.29mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP1T6B11M53REHSWITCH TOGGLE DPDT 0.4VA 20V |
0 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 12.30mm | Non-Illuminated | - | - | Wire Wrap | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP1T6B11M51QESWITCH TOGGLE DPDT 5A 120V |
0 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 12.30mm | Non-Illuminated | - | - | Wire Wrap | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP1T3B3M7RESWITCH TOGGLE DPDT 0.4VA 20V |
0 |
|
Datasheet |
100 | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 13.97mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

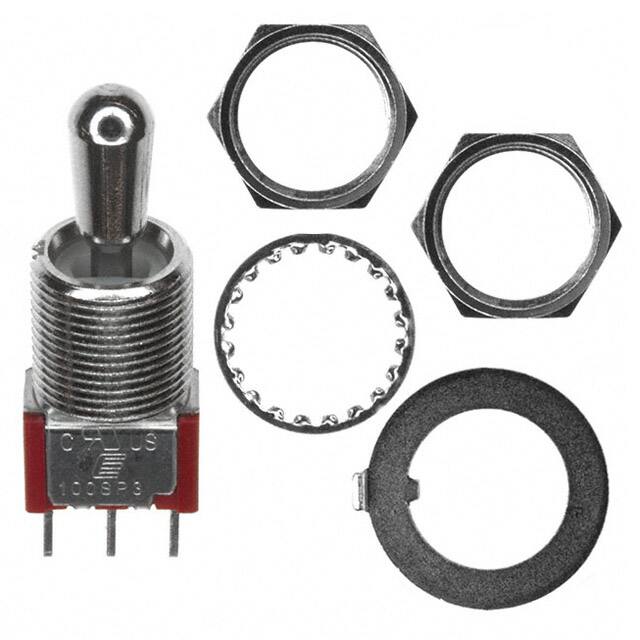

100SP3T7B13M2QEHSWITCH TOGGLE SPDT 5A 120V |
0 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 13.00mm | Non-Illuminated | - | - | PC Pin | Circular - 11.91mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100DP2T7B13M3REHSWITCH TOGGLE DPDT 0.4VA 20V |
0 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | DPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 13.00mm | Non-Illuminated | - | - | Quick Connect - 0.062" (1.5mm) | Circular - 11.91mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP3T1B1M6REHSWITCH TOGGLE DPDT 0.4VA 20V |
0 |
|
Datasheet |
100 | Bulk | Active | Panel Mount, Right Angle | DPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP1T6B11M6QEHSWITCH TOGGLE DPDT 5A 120V |
0 |
|
Datasheet |
100 | Bulk | Active | Panel Mount, Right Angle | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 12.30mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
200MSP3T2B2M6RESWITCH TOGGLE SPDT 0.4VA 20V |
0 |
|
Datasheet |
200 | Bulk | Active | Through Hole, Right Angle | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.33mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100AWSP3T2B1M2RESWITCH TOGGLE SPDT 0.4VA 20V |
0 |
|
Datasheet |
100A | Bulk | Active | Panel Mount | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.08mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
GTS447N301HRSWITCH TOGGLE SPST-NO 16A 277V |
0 |
|
Datasheet |
GTS447 | Bulk | Active | Panel Mount | SPST-NO | Off-Mom | 16A (AC) | 277 V | - | Flatted | 17.00mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | 15/32-32 | IP56 - Dust Protected, Water Resistant | - | 0°C ~ 85°C |
|
|
100DP1T1B2M6QESWITCH TOGGLE DPDT 5A 120V |
0 |
|
Datasheet |
100 | Bulk | Active | Through Hole, Right Angle | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP1T1B4M6QESWITCH TOGGLE DPDT 5A 120V |
0 |
|
Datasheet |
100 | Bulk | Active | Through Hole, Right Angle | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100SP5T1B2VS2QESWITCH TOGGLE SPDT 5A 120V |
0 |
|
Datasheet |
100 | Bulk | Active | Through Hole | SPDT | On-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP1T1B3VS5RESWITCH TOGGLE DPDT 0.4VA 20V |
0 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 12.19mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP1T6B15M2QESWITCH TOGGLE DPDT 5A 120V |
0 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 12.29mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100SP3T6B11M53RESWITCH TOGGLE SPDT 0.4VA 20V |
0 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 12.29mm | Non-Illuminated | - | - | Wire Wrap | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100SP3T5B4M7RESWITCH TOGGLE SPDT 0.4VA 20V |
0 |
|
Datasheet |
100 | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 21.34mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200MDP1T1B5M51CESWITCH TOGGLE DPDT 3A 120V |
0 |
|
Datasheet |
200 | Bulk | Active | Panel Mount | DPDT | On-On | 3A (AC) | 120 V | 28 V | Standard Round | 9.40mm | Non-Illuminated | - | - | Wire Wrap | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
Toggle Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Toggle Switches?
This category includes related Toggle Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Toggle Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Toggle Switches and other electronic components.
