Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
100SP5T2B4M6RESWITCH TOGGLE SPDT 0.4VA 20V |
14 |
|
Datasheet |
100 | Bulk | Active | Through Hole, Right Angle | SPDT | On-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.08mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100DP1T6B11M1REHSWITCH TOGGLE DPDT 0.4VA 20V |
0 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 12.30mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100DP1T2B4VS2RESWITCH TOGGLE DPDT 0.4VA 20V |
0 |
|
Datasheet |
100 | Bulk | Active | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.08mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
2M1-DP1-T1-B3-M2QESWITCH TOGGLE DPDT 5A 125V |
25 |
|
Datasheet |
2M | Bulk | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 125 V | 28 V | Standard Round | 10.40mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

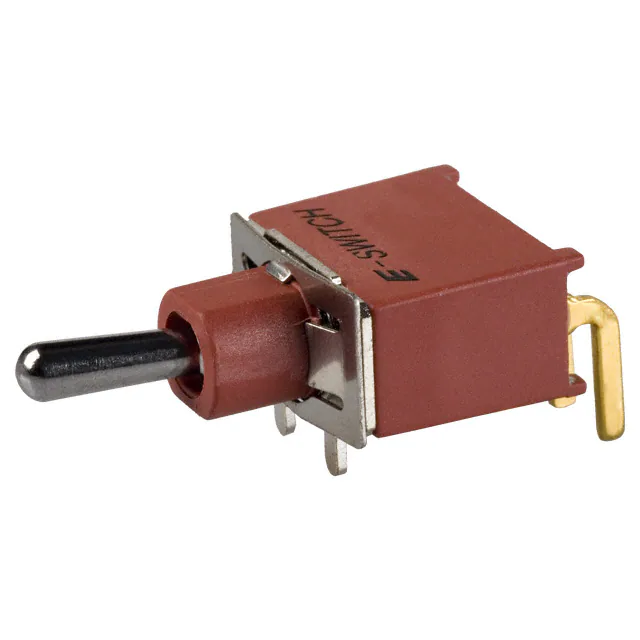

100AWSP1T2B4M6RESWITCH TOGGLE SPDT 0.4VA 20V |
0 |
|
Datasheet |
100A | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7205BSWITCH TOGGLE SPST 20A 125V |
7 |
|
Datasheet |
7200 | Bulk | Active | Panel Mount | SPST | On-Off | 20A (AC) | 125 V | - | Standard Round | 14.27mm | Non-Illuminated | - | - | Screw Terminal | - | 15/32-32 | - | - | -10°C ~ 65°C |
|
CF-TA-1DB4-A12SWITCH TOGGLE SPDT 50MA 48V |
20 |
|
Datasheet |
CF-TA | Bulk | Active | Surface Mount, Right Angle | SPDT | On-On | 50mA (AC/DC) | 48 V | 48 V | Standard Round | 6.00mm | Non-Illuminated | - | - | Gull Wing | - | Unthreaded | - | - | -40°C ~ 85°C |
|
B13JHSWITCH TOGGLE SPDT 0.4VA 28V |
10 |
|
Datasheet |
B | Bulk | Active | Through Hole, Right Angle | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
8G1022-ZSWITCH TOGGLE SPDT 6A 125V |
20 |
|
Datasheet |
8G | Bulk | Active | Through Hole | SPDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 6.80mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable | -30°C ~ 85°C |
|
8F1011-ZSWITCH TOGGLE SPDT 6A 125V |
25 |
|
Datasheet |
8F | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | Splash Proof | - | -30°C ~ 85°C |
|
A13AV1SWITCH TOGGLE SPDT 0.4VA 28V |
9 |
|
Datasheet |
A | Tray | Active | Through Hole, Right Angle, Vertical | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|
8G1024-ZSWITCH TOGGLE SPDT 6A 125V |
0 |
|
Datasheet |
8G | Bulk | Active | Through Hole, Right Angle | SPDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 6.80mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable | -25°C ~ 80°C |
|
7152CSWITCH TOGGLE SPDT 6A 125V |
24 |
|
Datasheet |
7100 | Bulk | Active | Panel Mount | SPDT | On-Off-Mom | 6A (AC) | 125 V | - | Standard Round | 14.27mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | - | 15/32-32 | - | - | -10°C ~ 65°C |
|
34ASP11B1M6RTSWITCH TOGGLE SPDT 0.4VA 20V |
0 |
|
Datasheet |
34A | Bulk | Active | Panel Mount, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
7101BSWITCH TOGGLE SPDT 6A 125V |
0 |
|
Datasheet |
7100 | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC) | 125 V | - | Standard Round | 14.27mm | Non-Illuminated | - | - | Screw Terminal | - | 15/32-32 | - | - | -10°C ~ 65°C |
|
B18KHSWITCH TOGGLE SPDT 0.4VA 28V |
1 |
|
Datasheet |
B | Bulk | Active | Through Hole, Right Angle | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Lever for Cap | 5.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
G18AVSWITCH TOGGLE SPDT 0.4VA 28V |
0 |
|
Datasheet |
G | Tray | Active | Through Hole, Right Angle, Vertical | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 3.80mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -25°C ~ 85°C |
|

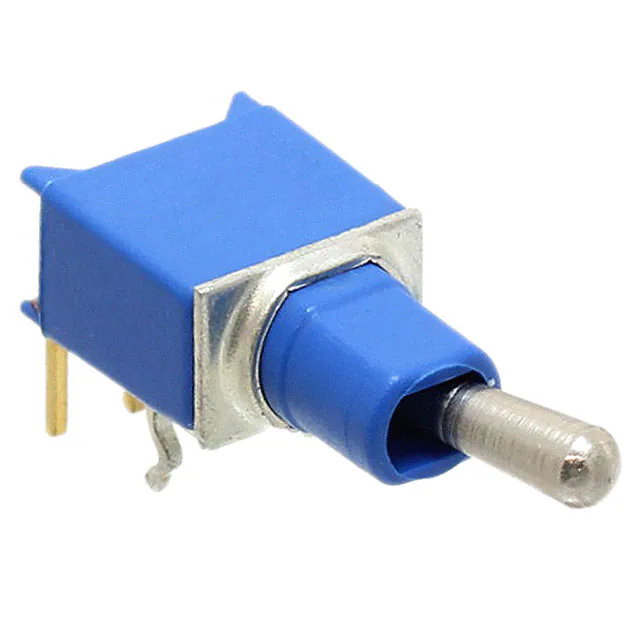

TL36W000050SWITCH TOGGLE SPDT 0.4VA 20V |
0 |
|
Datasheet |
TL | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
T101S1TZQESWITCH TOGGLE SPDT 3A 120V |
16 |
|
Datasheet |
T | Bulk | Active | Panel Mount | SPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
2M1-DP3-T1-B1-M2QESWITCH TOGGLE DPDT 5A 125V |
23 |
|
Datasheet |
2M | Bulk | Active | Panel Mount | DPDT | On-Off-On | 5A (AC/DC) | 125 V | 28 V | Standard Round | 10.40mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
Toggle Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Toggle Switches?
This category includes related Toggle Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Toggle Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Toggle Switches and other electronic components.
