Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M2042BB3W01SWITCH TOGGLE 4PDT 6A 125V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 4PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 11.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2012B2B3G01/CULSWITCH TOGGLE SPDT 0.4VA 28V |
24 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2022B2B1W06-AT4181BUSHING MOUNT MINIATURE TOGGLE |
7 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Wire Wrap | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
7208TPZ3QESWITCH TOGGLE DPDT 5A 120V |
0 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DPDT | On-Mom | 5A (AC/DC) | 120 V | 28 V | Anti-Rotation | 17.45mm | Non-Illuminated | - | - | Quick Connect - 0.062" (1.5mm) | Circular - 11.91mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
T203SHZQESWITCH TOGGLE DPDT 2A 120V |
49 |
|
Datasheet |
T | Bulk | Obsolete | Panel Mount | DPDT | On-Off-On | 2A (AC/DC) | 120 V | 28 V | Standard Round | 9.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 4.95mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
MTE306D04SWITCH TOGGLE |
44 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
12TS115-8SWITCH TOGGLE DPDT 20A 125V |
0 |
|
Datasheet |
TS | Bulk | Obsolete | Panel Mount | DPDT | On-Mom | 20A (AC) | 125 V | - | Standard Round | 16.51mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.40mm Dia | 15/32-32 | - | - | -54°C ~ 71°C |
|
|
M2025BB1W01-AT402SSWITCH TOGGLE DPDT 6A 125V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 11.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
M2019B2B1A02/UC-AT401HSWITCH TOGGLE SPDT 6A 125V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | On-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.062" (1.5mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
M2019B2B1A02-AT401SSWITCH TOGGLE SPDT 6A 125V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | On-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.062" (1.5mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
M2019B2B1A02-AT401HSWITCH TOGGLE SPDT 6A 125V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | On-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.062" (1.5mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
M2019B2B1A02/UC-AT401SSWITCH TOGGLE SPDT 6A 125V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | On-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.062" (1.5mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
S41/CSWITCH TOGGLE 4PST 20A 125V |
0 |
|
Datasheet |
S | Bulk | Obsolete | Panel Mount | 4PST | On-Off | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
7201L2DAV2BESWITCH TOGGLE DPDT 0.4VA 20V |
13 |
|
Datasheet |
7000 | Tray | Active | Panel Mount, Right Angle, Vertical | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 15.75mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2042SS1G45SWITCH TOGGLE 4PDT 0.4VA 28V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Right Angle, Vertical | 4PDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7215P3YAV2BESWITCH TOGGLE SP3T 0.4VA 20V |
55 |
|
Datasheet |
7000 | Tray | Active | Panel Mount, Right Angle, Vertical | SP3T | Mom-On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
M2043SD3W01SWITCH TOGGLE 4PDT 6A 125V |
23 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 4PDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2026B2B1G01SWITCH TOGGLE SP3T 0.4VA 28V |
35 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SP3T | Mom-On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
M2028WBG01SWITCH TOGGLE DPDT 0.4VA 28V |
9 |
|
Datasheet |
M | Tray | Obsolete | Panel Mount | DPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 20.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | Waterproof Boot | -30°C ~ 85°C |
|

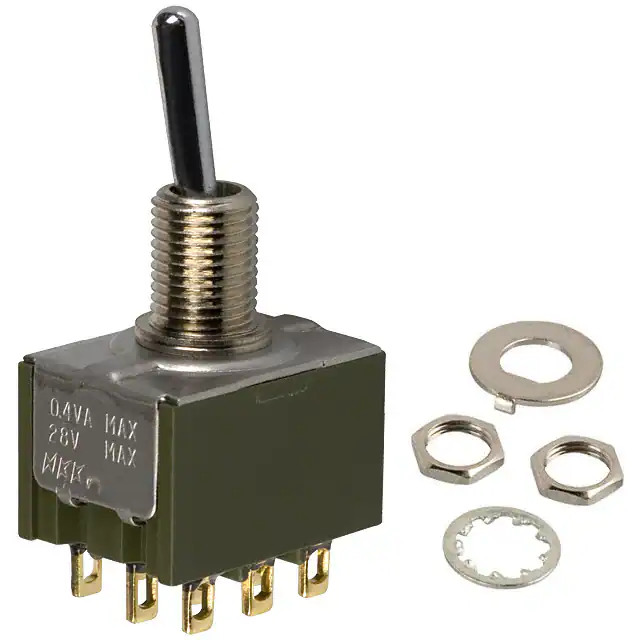

M2032SS1G01SWITCH TOGGLE 3PDT 0.4VA 28V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 3PDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
