Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B12JJVDSWITCH TOGGLE SPDT 0.4VA 28V |
0 |
|
Datasheet |
B | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.30mm | Illuminated | LED, Amber | 2 VDC | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -25°C ~ 55°C |
|
B12JJHCSWITCH TOGGLE SPDT 0.4VA 28V |
0 |
|
Datasheet |
B | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.30mm | Illuminated | LED, Red | 1.95 VDC | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -25°C ~ 55°C |
|
|
B12JJHDSWITCH TOGGLE SPDT 0.4VA 28V |
0 |
|
Datasheet |
B | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.30mm | Illuminated | LED, Amber | 2 VDC | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -25°C ~ 55°C |
|
|
M2033SD3W01SWITCH TOGGLE 3PDT 6A 125V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 3PDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2033ES1W01SWITCH TOGGLE 3PDT 6A 125V |
15 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 3PDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Flatted | 11.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
S302T/USWITCH TOGGLE SPDT 15A 125V |
0 |
|
Datasheet |
S300 | Bulk | Active | Panel Mount | SPDT | On-On | 15A (AC), 20A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
S331/CSWITCH TOGGLE DPST 25A 125V |
0 |
|
Datasheet |
S300 | Bulk | Obsolete | Panel Mount | DPST | On-Off | 25A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
A24JWSWITCH TOGGLE SP3T 0.4VA 28V |
0 |
|
Datasheet |
A | Tube | Active | Through Hole | SP3T | On-On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.30mm | Non-Illuminated | - | - | Wire Wrap | - | Unthreaded, Square | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
A24AWSWITCH TOGGLE SP3T 0.4VA 28V |
0 |
|
Datasheet |
A | Bulk | Active | Through Hole | SP3T | On-On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.00mm | Non-Illuminated | - | - | Wire Wrap | - | Unthreaded, Square | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
M2042SS4W01SWITCH TOGGLE 4PDT 6A 125V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 4PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | M6 x 0.75 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

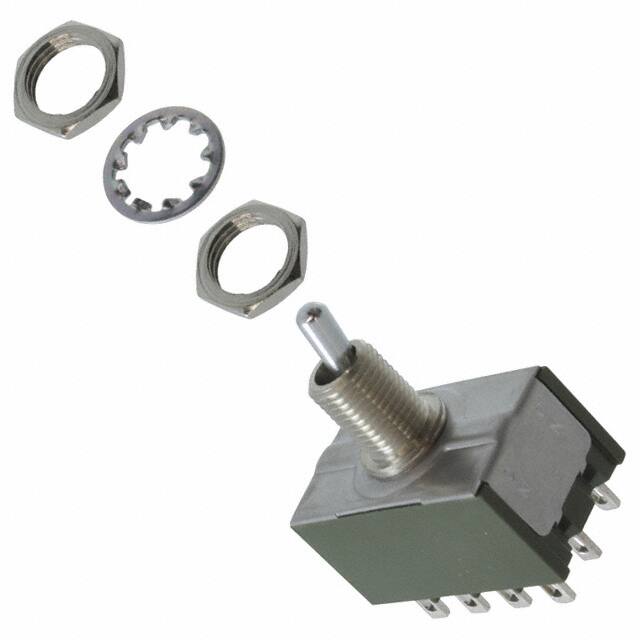

M2042S2D1W01/UCSWITCH TOGGLE 4PDT 6A 125V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 4PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 5.08mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2042S2S1W01SWITCH TOGGLE 4PDT 6A 125V |
0 |
|
- |
M | Bulk | Obsolete | Panel Mount | 4PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 5.08mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2012S2A2A30/USWITCH TOGGLE SPDT 6A 125V |
0 |
|
Datasheet |
M | Tray | Obsolete | Through Hole, Right Angle | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2012S2A2A30/CULSWITCH TOGGLE SPDT 6A 125V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2015K1S1W01-FSWITCH TOGGLE SPDT 6A 125V |
7 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SPDT | On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Snap On Paddle | 9.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Green Cap | -30°C ~ 85°C |
|

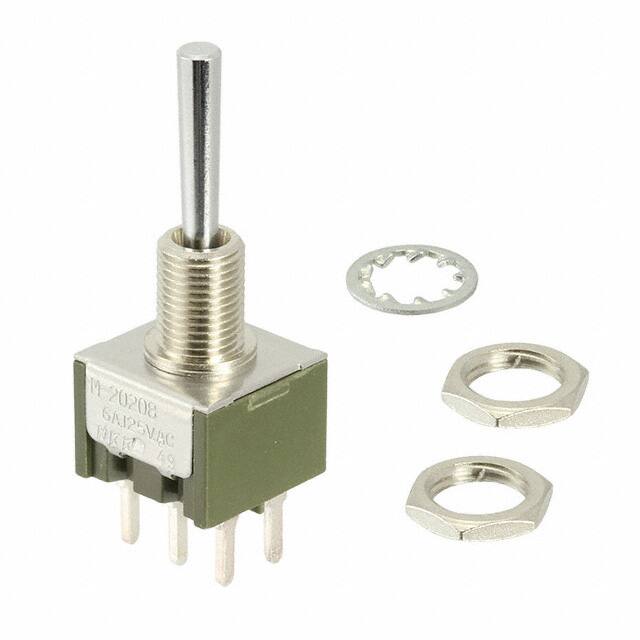

M2026QD1W03SWITCH TOGGLE SP3T 6A 125V |
88 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | SP3T | Mom-On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 14.00mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
34BWDP11B4V3RTSWITCH TOGGLE DPDT 0.4VA 20V |
0 |
|
Datasheet |
34B | Bulk | Active | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 12.60mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7101P3HWQESWITCH TOGGLE SPDT 5A 120V |
33 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | Wire Wrap | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
34ADP49B1M3QTSWITCH TOGGLE DPDT 5A 125V |
0 |
|
Datasheet |
34A | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 5A (AC/DC) | 125 V | 28 V | Standard Round | 21.34mm | Non-Illuminated | - | - | Quick Connect - 0.062" (1.5mm) | Circular - 6.35mm Dia | 1/4-40 | - | Black Actuator | -30°C ~ 85°C |
|
|
M2013SS1G30SWITCH TOGGLE SPDT 0.4VA 28V |
6 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
