Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
55016-06-BPSWITCH TOGGLE SPDT 15A 24V |
18 |
|
- |
- | Bulk | Active | Panel Mount | SPDT | On-Off-On | 15A (DC) | - | 24 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | - | 15/32-32 | - | - | - |
|
|
ETW115D12SWITCH TOGGLE SPDT 15A 127VAC |
50 |
|
Datasheet |
ETW | Box | Active | Panel Mount | SPDT | On-On | 15A (AC) | 127 V | - | Standard Round | 16.40mm | Non-Illuminated | - | - | Solder Lug | - | M12 x 1 | IP67 - Dust Tight, Waterproof | - | -10°C ~ 70°C |
|
|
A223S1YZQSWITCH TOGGLE DPDT 6A 125V |
16 |
|
Datasheet |
A | Bulk | Active | Panel Mount | DPDT | On-On | 6A (AC/DC) | 125 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|

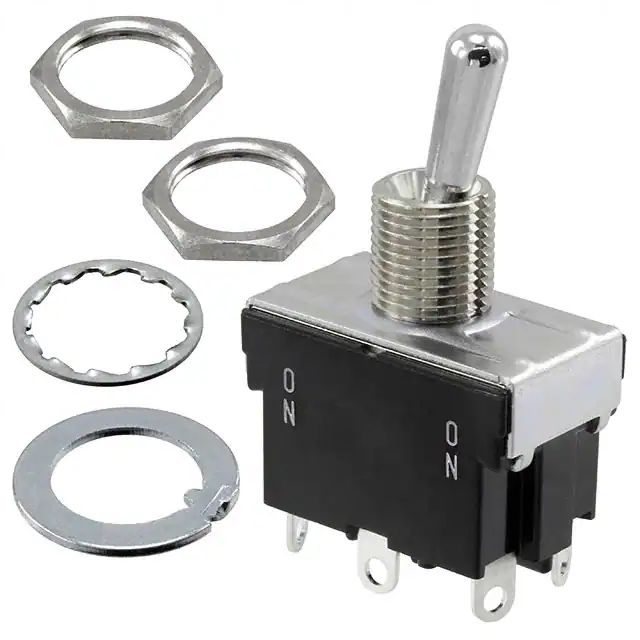

ET225P12-ZSWITCH TOGGLE DPDT 25A 125V |
55 |
|
Datasheet |
ET | Bulk | Active | Panel Mount | DPDT | On-Off-On | 25A (AC) | 125 V | - | Standard Round | 17.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | - |
|
55088SWITCH TOGGLE SPDT 15A 24V |
74 |
|
Datasheet |
- | Bulk | Active | Panel Mount | SPDT | Mom-Off-On | 15A (DC) | - | 24 V | Standard Round | 17.46mm | Non-Illuminated | - | - | Screw Terminal | Circular - 11.90mm Dia | 15/32-32 | - | - | - |
|
|
MN32BB1W01SWITCH TOGGLE |
15 |
|
Datasheet |
M | Bulk | Active | Panel Mount | 3PDT | On-On | 4A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 11.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
MN22LL3W01-CSWITCH TOGGLE |
27 |
|
Datasheet |
M | Bulk | Active | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | - | -30°C ~ 85°C |
|
|
MN32SS4W03SWITCH TOGGLE |
6 |
|
Datasheet |
M | Bulk | Active | Panel Mount | 3PDT | On-On | 4A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | M6 x 0.75 | - | - | -30°C ~ 85°C |
|
|
2GK721-D-3B-B/272-06747SWITCH TOGGLE DPST 20A 125V |
10 |
|
- |
G | Bulk | Active | Panel Mount | DPST | On-Off | 20A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|
B13JJVCFSWITCH TOGGLE SPDT 0.4VA 28V |
30 |
|
Datasheet |
B | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.30mm | Illuminated | LED, Green/Red | 1.95, 3.3 VDC | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -25°C ~ 55°C |
|
|
MN28B2B1W03SWITCH TOGGLE |
83 |
|
Datasheet |
M | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 4A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | PC Pin | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
ETW115E12SWITCH TOGGLE SPDT 15A 127VAC |
50 |
|
Datasheet |
ETW | Box | Active | Panel Mount | SPDT | On-Off-On | 15A (AC) | 127 V | - | Standard Round | 16.40mm | Non-Illuminated | - | - | Solder Lug | - | M12 x 1 | IP67 - Dust Tight, Waterproof | - | -10°C ~ 70°C |
|
|
MN24SS1G03SWITCH TOGGLE |
66 |
|
Datasheet |
M | Bulk | Active | Panel Mount | SP3T | On-On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
MN12LL2G30SWITCH TOGGLE |
26 |
|
Datasheet |
M | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -30°C ~ 85°C |
|
|
MN32SS2W30SWITCH TOGGLE |
73 |
|
Datasheet |
M | Bulk | Active | Through Hole, Right Angle | 3PDT | On-On | 4A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -30°C ~ 85°C |
|
55055-01SWITCH TOGGLE SPST 15A 24V |
68 |
|
Datasheet |
- | Bulk | Active | Panel Mount | SPST | On-Off | 15A (DC) | - | 24 V | Standard Round | 38.48mm | Non-Illuminated | - | - | Screw Terminal | Circular - 11.90mm Dia | 15/32-32 | - | - | - |
|
|
MN42SS1W03SWITCH TOGGLE |
65 |
|
Datasheet |
M | Bulk | Active | Panel Mount | 4PDT | On-On | 4A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
ETW115G12SWITCH TOGGLE SPDT 15A 127VAC |
50 |
|
Datasheet |
ETW | Box | Active | Panel Mount | SPDT | Mom-Off-Mom | 15A (AC) | 127 V | - | Standard Round | 16.40mm | Non-Illuminated | - | - | Solder Lug | - | M12 x 1 | IP67 - Dust Tight, Waterproof | - | -10°C ~ 70°C |
|
ATLE44D-6M3-ZSWITCH TOGGLE 4PDT 50MA 48V |
38 |
|
Datasheet |
ATLE4 | Tray | Active | Through Hole, Right Angle | 4PDT | On-On | 50mA (AC/DC) | 48 V | 48 V | Locking Lever | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -20°C ~ 85°C |
|
|
MTA206RSWITCH TOGGLE DPDT 6A 125V |
100 |
|
Datasheet |
MTA Green | Bulk | Active | Panel Mount | DPDT | On-Mom | 6A (AC), 4A (DC) | 125 V | 28 V | Standard Round | 10.49mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
Toggle Switches Electronic Components
Explore Toggle Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
