Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
639NH/2SWITCH TOGGLE SPDT 10A 250V |
71 |
|
Datasheet |
600NH | Bulk | Active | Panel Mount | SPDT | On-Off-On | 10A (AC) | 250 V | - | Flatted | 13.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | M12 x 0.75 | - | - | -20°C ~ 55°C |
|
5647AB9SWITCH TOGGLE DPDT 6A 125V |
15 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Flatted | 11.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | - | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|

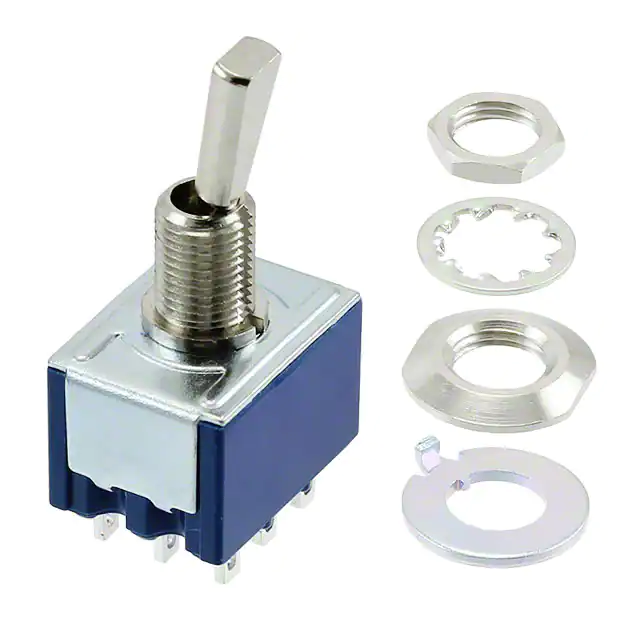

8C3011-ZSWITCH TOGGLE 3PDT 6A 125V |
48 |
|
Datasheet |
8C | Bulk | Active | Panel Mount | 3PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Flat Anti-Rotation | 11.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Sealed - Flux Protection | -30°C ~ 85°C |
|

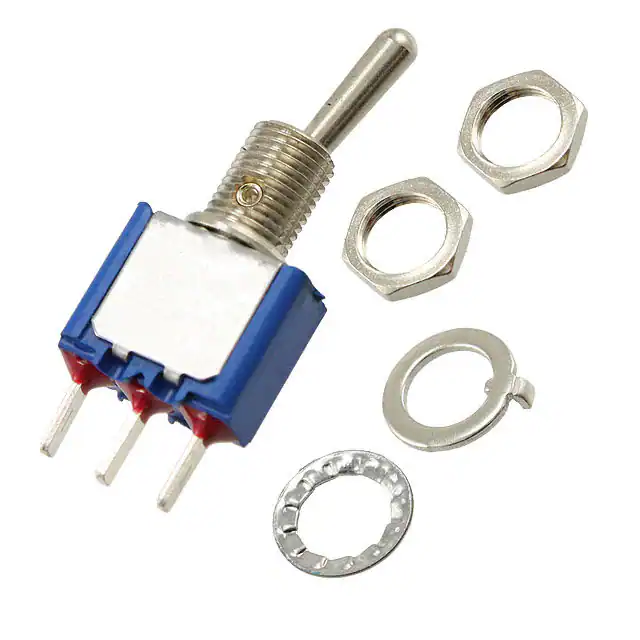

5236ZABULCSASWITCH TOGGLE SPDT 6A 125V |
74 |
|
Datasheet |
5000 | Tray | Active | Panel Mount | SPDT | On-On | 6A (AC) | 125 V | - | Standard Round | 10.50mm | Non-Illuminated | - | - | Quick Connect - 0.062" (1.5mm) | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
A28KB-BHSWITCH TOGGLE DPDT 0.4VA 28V |
7 |
|
Datasheet |
A | Bulk | Active | Through Hole | DPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Snap On Paddle | 14.20mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Gray Actuator | -30°C ~ 85°C |
|
7101P4DZQESWITCH TOGGLE SPDT 5A 120V |
32 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 8.13mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7201SDCQESWITCH TOGGLE DPDT 5A 120V |
12 |
|
Datasheet |
7000 | Tray | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 12.45mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
55013SWITCH TOGGLE SPST 10A 12V |
64 |
|
Datasheet |
- | Bulk | Active | Panel Mount | SPST | On-Off | 10A (DC) | - | 12 V | Standard Round | 17.46mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 11.90mm Dia | 15/32-32 | - | - | - |
|
S302FSWITCH TOGGLE SPDT 15A 125V |
33 |
|
Datasheet |
S300 | Bulk | Active | Panel Mount | SPDT | On-On | 15A (AC), 20A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
ET215P12-ZSWITCH TOGGLE DPDT 15A 125V |
20 |
|
Datasheet |
ET | Bulk | Active | Panel Mount | DPDT | On-Off-On | 15A (AC) | 125 V | - | Standard Round | 17.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | - |
|
ET115G12-ZSWITCH TOGGLE SPDT 15A 125V |
76 |
|
Datasheet |
ET | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 15A (AC) | 125 V | - | Standard Round | 17.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | - |
|
T102LHZQESWITCH TOGGLE SPST 2A 120V |
15 |
|
Datasheet |
T | Tray | Active | Panel Mount | SPST | On-Off | 2A (AC/DC) | 120 V | 28 V | Standard Round | 7.37mm | Non-Illuminated | - | - | Solder Lug | Circular - 4.95mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
B22A1PSWITCH TOGGLE DPDT 0.4VA 28V |
24 |
|
Datasheet |
B | Tray | Active | Panel Mount | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 8.00mm | Non-Illuminated | - | - | PC Pin | Circular - 6.00mm Dia | M6 x 0.75 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

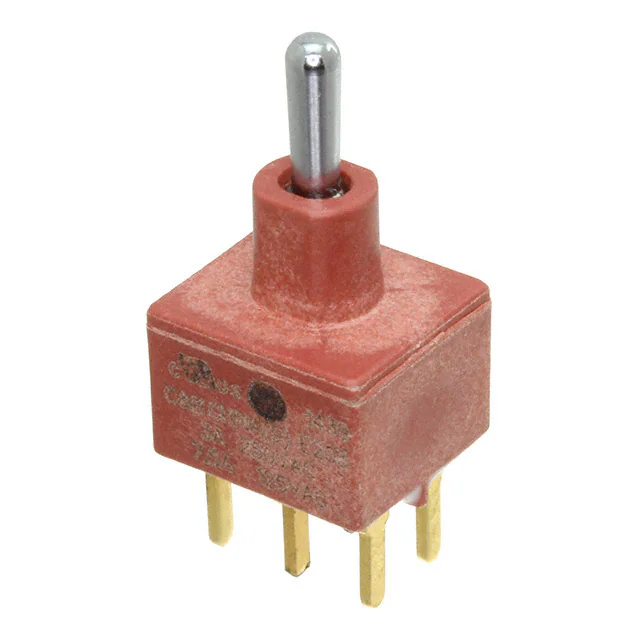

E203MD1CQESWITCH TOGGLE DPDT 7.5A 125V |
80 |
|
Datasheet |
E | Bulk | Active | Through Hole | DPDT | On-Off-On | 7.5A (AC/DC) | 125 V | 28 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
5647ABSWITCH TOGGLE DPDT 6A 125V |
23 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
5648ABSWITCH TOGGLE DPDT 6A 125V |
11 |
|
Datasheet |
5000 | Bulk | Active | Panel Mount | DPDT | On-Off-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|

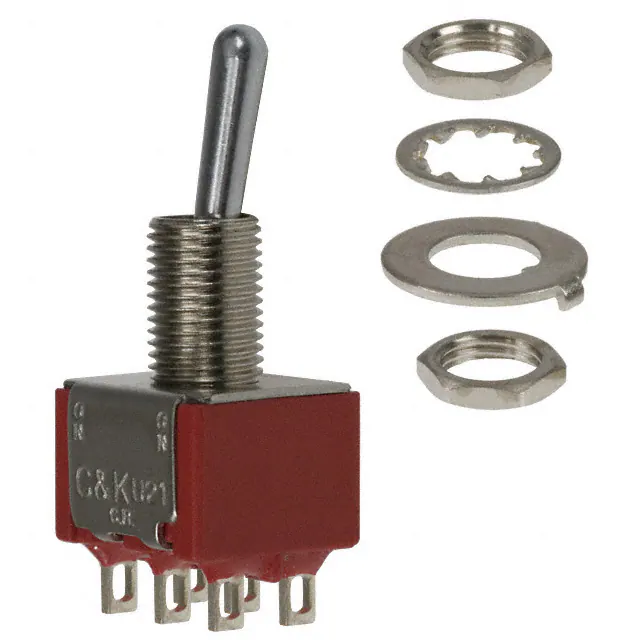

U21SYZQESWITCH TOGGLE DPDT 5A 120V |
94 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.67mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
ET225K12-ZSWITCH TOGGLE DPST 25A 125V |
10 |
|
Datasheet |
ET | Bulk | Active | Panel Mount | DPST | On-Off | 25A (AC) | 125 V | - | Standard Round | 17.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | - |
|
7101SYZGISWITCH TOGGLE SPDT 5A 120V |
34 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.67mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Potted | -30°C ~ 85°C |
.jpg)
|
S309SWITCH TOGGLE SPDT 15A 125V |
58 |
|
Datasheet |
S300 | Bulk | Active | Panel Mount | SPDT | On-Off-Mom | 15A (AC), 20A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
Toggle Switches Electronic Components
Explore Toggle Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
