SCRs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Voltage - Off State | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Voltage - On State (Vtm) (Max) | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Current - Hold (Ih) (Max) | Current - Off State (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | SCR Type | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VS-180RKI40PBFSCR 400V 285A TO209AB |
3,326 |
|
Datasheet |
- | TO-209AB, TO-93-4, Stud | Bulk | Active | 400 V | 2.5 V | 150 mA | 1.35 V | 180 A | 285 A | 600 mA | 30 mA | 3500A, 3660A | Standard Recovery | -40°C ~ 125°C | - | - | Chassis, Stud Mount | TO-209AB (TO-93) |
|
|
VS-181RKI40PBFSCR 400V 285A TO209AB |
8,919 |
|
Datasheet |
- | TO-209AB, TO-93-4, Stud | Bulk | Active | 400 V | 2.5 V | 150 mA | 1.35 V | 180 A | 285 A | 600 mA | 30 mA | 3500A, 3660A | Standard Recovery | -40°C ~ 125°C | - | - | Chassis, Stud Mount | TO-209AB (TO-93) |
|
|
JAN2N2324ASSCR 100V TO39 |
8,616 |
|
Datasheet |
- | TO-205AD, TO-39-3 Metal Can | Bulk | Obsolete | 100 V | 600 mV | 20 µA | - | 220 mA | - | 2 mA | - | - | Sensitive Gate | -65°C ~ 125°C | Military | MIL-PRF-19500/276 | Through Hole | TO-39 (TO-205AD) |
|
VS-ST180C04C0SCR 400V 660A A-PUK |
6,324 |
|
Datasheet |
- | TO-200AB, A-PUK | Bulk | Last Time Buy | 400 V | 3 V | 150 mA | 1.96 V | 350 A | 660 A | 600 mA | 30 mA | 5000A, 5230A | Standard Recovery | -40°C ~ 125°C | - | - | Clamp On | TO-200AB, A-PUK |
|
|
VS-ST180C04C1SCR 400V 660A A-PUK |
3,772 |
|
Datasheet |
- | TO-200AB, A-PUK | Bulk | Last Time Buy | 400 V | 3 V | 150 mA | 1.96 V | 350 A | 660 A | 600 mA | 30 mA | 4200A, 4400A | Standard Recovery | -40°C ~ 125°C | - | - | Clamp On | TO-200AB, A-PUK |
|

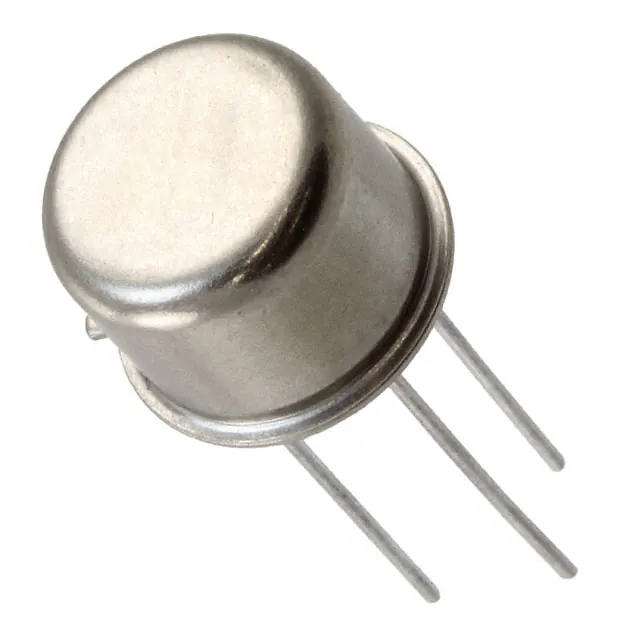

2N2323SSCR 50V TO5 |
5,891 |
|
Datasheet |
- | TO-205AA, TO-5-3 Metal Can | Bulk | Obsolete | 50 V | 800 mV | 200 µA | - | 220 mA | - | 2 mA | - | - | Sensitive Gate | -65°C ~ 125°C | - | - | Through Hole | TO-5 |
|
2N2329SCR 400V TO5 |
8,136 |
|
Datasheet |
- | TO-205AA, TO-5-3 Metal Can | Bulk | Obsolete | 400 V | 800 mV | 200 µA | - | 220 mA | - | 2 mA | - | - | Sensitive Gate | -65°C ~ 125°C | - | - | Through Hole | TO-5 |
|
|
2N2327ASCR |
5,009 |
|
- |
- | TO-205AD, TO-39-3 Metal Can | Bulk | Active | 250 V | 800 mV | 20 µA | 2.2 V | 1.6 A | - | 2 A | - | 15A @ 60Hz | Standard Recovery | - | - | - | Through Hole | TO-39 (TO-205AD) |
|
|
C350BSCR 200V 180A PRESS-PAK |
6,638 |
|
Datasheet |
- | TO-200AB, A-PUK | Bulk | Discontinued at Digi-Key | 200 V | 3 V | 150 mA | 2.6 V | 115 A | 180 A | - | 20 mA | 1480A, 1600A | Standard Recovery | -40°C ~ 125°C | - | - | Clamp On | Press-Pak (Pow-R-Disc) |
|
|
VS-ST230C08C0SCR 800V 780A A-PUK |
8,162 |
|
Datasheet |
- | TO-200AB, A-PUK | Bulk | Last Time Buy | 800 V | 3 V | 150 mA | 1.69 V | 410 A | 780 A | 600 mA | 30 mA | 5700A, 5970A | Standard Recovery | -40°C ~ 125°C | - | - | Clamp On | TO-200AB, A-PUK |
|
|
VS-ST230C08C1SCR 800V 780A A-PUK |
2,896 |
|
Datasheet |
- | TO-200AB, A-PUK | Bulk | Last Time Buy | 800 V | 3 V | 150 mA | 1.69 V | 410 A | 780 A | 600 mA | 30 mA | 4800A, 5000A | Standard Recovery | -40°C ~ 125°C | - | - | Clamp On | TO-200AB, A-PUK |
|
|
C350CSCR 300V 180A PRESS-PAK |
3,994 |
|
Datasheet |
- | TO-200AB, A-PUK | Bulk | Discontinued at Digi-Key | 300 V | 3 V | 150 mA | 2.6 V | 115 A | 180 A | - | 20 mA | 1480A, 1600A | Standard Recovery | -40°C ~ 125°C | - | - | Clamp On | Press-Pak (Pow-R-Disc) |
|
JANTX2N2323SCR 50V TO5-3 |
9,282 |
|
Datasheet |
- | TO-205AA, TO-5-3 Metal Can | Bulk | Obsolete | 50 V | 800 mV | 200 µA | - | 220 mA | - | 2 mA | - | - | Sensitive Gate | -65°C ~ 125°C | Military | MIL-PRF-19500/276 | Through Hole | TO-5-3 |
|
VS-ST180C08C0SCR 800V 660A A-PUK |
8,432 |
|
Datasheet |
- | TO-200AB, A-PUK | Bulk | Last Time Buy | 800 V | 3 V | 150 mA | 1.96 V | 350 A | 660 A | 600 mA | 30 mA | 5000A, 5230A | Standard Recovery | -40°C ~ 125°C | - | - | Clamp On | TO-200AB, A-PUK |
|
|
VS-181RKI80PBFSCR 800V 285A TO209AB |
4,311 |
|
Datasheet |
- | TO-209AB, TO-93-4, Stud | Bulk | Active | 800 V | 2.5 V | 150 mA | 1.35 V | 180 A | 285 A | 600 mA | 30 mA | 3500A, 3660A | Standard Recovery | -40°C ~ 125°C | - | - | Chassis, Stud Mount | TO-209AB (TO-93) |
|
|
C350DSCR 400V 180A PRESS-PAK |
2,261 |
|
Datasheet |
- | TO-200AB, A-PUK | Bulk | Discontinued at Digi-Key | 400 V | 3 V | 150 mA | 2.6 V | 115 A | 180 A | - | 20 mA | 1480A, 1600A | Standard Recovery | -40°C ~ 125°C | - | - | Clamp On | Press-Pak (Pow-R-Disc) |
|
|
VS-ST250C04C1SCR 400V 250A A-PUK |
4,372 |
|
Datasheet |
- | TO-200AB, A-PUK | Bulk | Last Time Buy | - | - | - | - | - | - | - | - | - | Standard Recovery | - | - | - | Clamp On | TO-200AB, A-PUK |
|
|
VS-ST250C04C3SCR A-PUK 400V 250A A-PUK |
5,080 |
|
Datasheet |
- | TO-200AB, A-PUK | Bulk | Last Time Buy | - | - | - | - | - | - | - | - | - | Standard Recovery | - | - | - | Clamp On | TO-200AB, A-PUK |
|
VS-110RKI120SCR 1.2KV 172A TO209AC |
2,282 |
|
Datasheet |
- | TO-209AC, TO-94-4, Stud | Bulk | Active | 1.2 kV | 2 V | 120 mA | 1.57 V | 110 A | 172 A | 200 mA | 20 mA | 2080A, 2180A | Standard Recovery | -40°C ~ 140°C | - | - | Chassis, Stud Mount | TO-209AC (TO-94) |
|
|
JANTX2N2323SSCR 50V TO39 |
2,171 |
|
Datasheet |
- | TO-205AD, TO-39-3 Metal Can | Bulk | Obsolete | 50 V | 800 mV | 200 µA | - | 220 mA | - | 2 mA | - | - | Sensitive Gate | -65°C ~ 125°C | Military | MIL-PRF-19500/276 | Through Hole | TO-39 (TO-205AD) |
