SCRs - Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Structure | Number of SCRs, Diodes | Voltage - Off State | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | Current - Hold (Ih) (Max) | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSTC40-12MOD THYRISTOR DIODE 40A SF1 |
6,122 |
|
- |
- | Module | Bulk | Obsolete | Series Connection - All SCRs | 2 SCRs | 1.2 kV | 40 A | - | 2.5 V | 150 mA | 1000A @ 50Hz | 250 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MSFC60-12MOD THYRISTOR DIODE DBLR 60A SF1 |
2,003 |
|
- |
- | Module | Bulk | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.2 kV | 60 A | - | 3 V | 150 mA | 1500A @ 50Hz | 250 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MSFC25-16MOD THYRISTOR DIODE DBLR 25A SF1 |
5,652 |
|
- |
- | Module | Bulk | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 25 A | - | 2.5 V | 150 mA | 550A @ 50Hz | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MSTC160-08MOD THYRISTOR DOUBLER 160A D1 |
4,249 |
|
- |
- | T2 | Bulk | Obsolete | Series Connection - All SCRs | 2 SCRs | 800 V | 160 A | - | 3 V | 150 mA | 5400A @ 50Hz | 400 mA | -40°C ~ 130°C (TJ) | - | - | Chassis Mount |
|
|
MSTC60-16MOD THYRISTOR DIODE 60A SF1 |
2,288 |
|
- |
- | Module | Bulk | Obsolete | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 60 A | - | 3 V | 150 mA | 1500A @ 50Hz | 250 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MCMA200PD1600SASCR MODULE 1.6KV 200A MODULE |
4,696 |
|
- |
- | Module | Bulk | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 200 A | 314 A | 2.5 V | 150 mA | 6000A, 6480A | 200 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
|

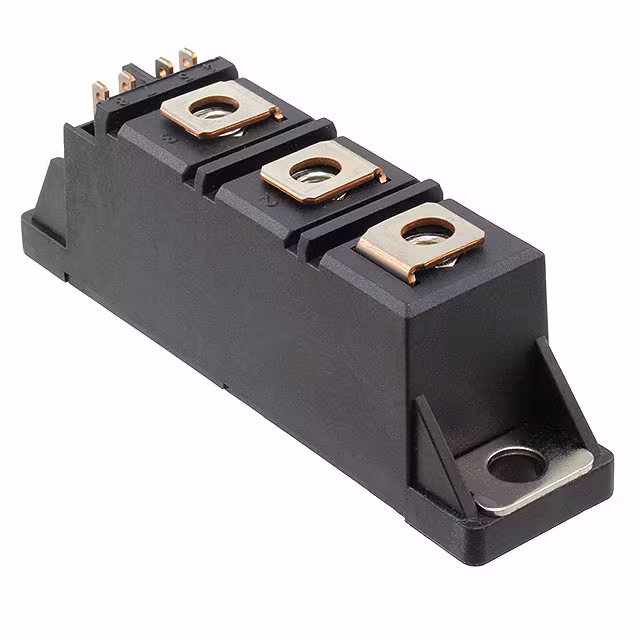

VS-VSKH430-16PBFMODULE DIODE 430A SMAGN-A-PAK |
6,616 |
|
Datasheet |
- | SUPER MAGN-A-PAK | Bulk | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 430 A | 675 A | - | - | 15700A, 16400A | 500 mA | -40°C ~ 150°C (TJ) | - | - | Chassis Mount |
|
VS-VSKL300-08PBFMODULE THYRISTOR 300A INT-A-PAK |
8,991 |
|
Datasheet |
- | INT-A-Pak | Bulk | Last Time Buy | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 800 V | 300 A | 116 A | 3 V | 200 mA | 6500A, 6900A | 600 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
|
VS-VSKT430-18PBFMODULE THY 430A SMAGN-A-PAK |
7,110 |
|
Datasheet |
- | SUPER MAGN-A-PAK | Bulk | Obsolete | Series Connection - All SCRs | 2 SCRs | 1.8 kV | 430 A | 675 A | - | - | 15700A, 16400A | 500 mA | -40°C ~ 150°C (TJ) | - | - | Chassis Mount |
|
|
T9S0083403DHTHYRISTOR PH CTRL 2850A PUCK |
6,574 |
|
Datasheet |
- | TO-200 Variation | Bulk | Obsolete | Single | 1 SCR | 800 V | 3900 A | 6126 A | 3 V | 200 mA | 33469A, 35500A | - | -20°C ~ 140°C (TJ) | - | - | Chassis Mount |
|
|
LDR30854SCR MODULE 800V 845A POW-R-BLOK |
9,544 |
|
Datasheet |
- | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | Series Connection - All SCRs | 2 SCRs | 800 V | 540 A | 845 A | 2.5 V | 250 mA | 18000A, 17000A | 300 mA | -40°C ~ 130°C (TJ) | - | - | Chassis Mount |
|
|
LDR31254SCR MODULE 1.2KV 845A POW-R-BLOK |
9,998 |
|
Datasheet |
- | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | Series Connection - All SCRs | 2 SCRs | 1.2 kV | 540 A | 845 A | 2.5 V | 250 mA | 18000A, 17000A | 300 mA | -40°C ~ 130°C (TJ) | - | - | Chassis Mount |
|
|
LDR31454SCR MODULE 1.4KV 845A POW-R-BLOK |
3,360 |
|
Datasheet |
- | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | Series Connection - All SCRs | 2 SCRs | 1.4 kV | 540 A | 845 A | 2.5 V | 250 mA | 18000A, 17000A | 300 mA | -40°C ~ 130°C (TJ) | - | - | Chassis Mount |
|
|
LDR31654SCR MODULE 1.6KV 845A POW-R-BLOK |
8,803 |
|
Datasheet |
- | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 540 A | 845 A | 2.5 V | 250 mA | 18000A, 17000A | 300 mA | -40°C ~ 130°C (TJ) | - | - | Chassis Mount |
|
|
LDR31854SCR MODULE 1.8KV 845A POW-R-BLOK |
7,938 |
|
Datasheet |
- | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | Series Connection - All SCRs | 2 SCRs | 1.8 kV | 540 A | 845 A | 2.5 V | 250 mA | 18000A, 17000A | 300 mA | -40°C ~ 130°C (TJ) | - | - | Chassis Mount |
|
TZ600N12KOFHPSA1SCR MODULE 1.2KV 1050A MODULE |
3,282 |
|
Datasheet |
- | Module | Bulk | Obsolete | Single | 1 SCR | 1.2 kV | 669 A | 1050 A | 2.2 V | 250 mA | 17A @ 50Hz | 300 mA | -40°C ~ 135°C | - | - | Chassis Mount |
|
|
TZ600N14KOFHPSA1SCR MODULE 1.6KV 1050A MODULE |
6,595 |
|
Datasheet |
- | Module | Bulk | Obsolete | Single | 1 SCR | 1.6 kV | 669 A | 1050 A | 2.2 V | 250 mA | 17A @ 50Hz | 300 mA | -40°C ~ 135°C | - | - | Chassis Mount |
|
|
TZ800N12KOFHPSA3SCR MODULE 1.2KV 1500A MODULE |
5,130 |
|
Datasheet |
- | Module | Tray | Obsolete | Single | 1 SCR | 1.2 kV | 819 A | 1500 A | 2 V | 250 mA | 35000A @ 50Hz | 500 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
|
TZ740N20KOFHPSA3SCR MODULE 2KV 1500A MODULE |
3,867 |
|
Datasheet |
- | Module | Bulk | Obsolete | Single | 1 SCR | 2 kV | 819 A | 1500 A | 2 V | 250 mA | 30000A @ 50Hz | 500 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
|
TZ630N24KOFHPSA1SCR MODULE 2.4KV 1500A MODULE |
9,946 |
|
Datasheet |
- | Module | Tray | Obsolete | Single | 1 SCR | 2.4 kV | 955 A | 1500 A | 2 V | 250 mA | 25.5A @ 50Hz | 500 mA | -40°C ~ 125°C | - | - | Chassis Mount |
SCRs - Modules Electronic Components
Frequently Asked Questions
Q1: What products are included in SCRs - Modules?
This category includes related SCRs - Modules subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for SCRs - Modules components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for SCRs - Modules and other electronic components.
