Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EVQ-11K05BSWITCH TACTILE SPST-NO 0.02A 15V |
0 |
|
Datasheet |
EVQ11 | Cut Tape (CT) | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Through Hole | 5.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 130gf | - | - | -20°C ~ 70°C |
|
|
EVQ-11V05BSWITCH TACTILE SPST-NO 0.02A 15V |
0 |
|
Datasheet |
EVQ11 | Cut Tape (CT) | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Through Hole | 5.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -20°C ~ 70°C |
|
EVQ-11K09KSWITCH TACTILE SPST-NO 0.02A 15V |
0 |
|
Datasheet |
EVQ11 | Cut Tape (CT) | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Through Hole | 9.50mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 130gf | - | - | -20°C ~ 70°C |
|
EVQ-11V07KSWITCH TACTILE SPST-NO 0.02A 15V |
0 |
|
Datasheet |
EVQ11 | Cut Tape (CT) | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Through Hole | 7.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -20°C ~ 70°C |
|

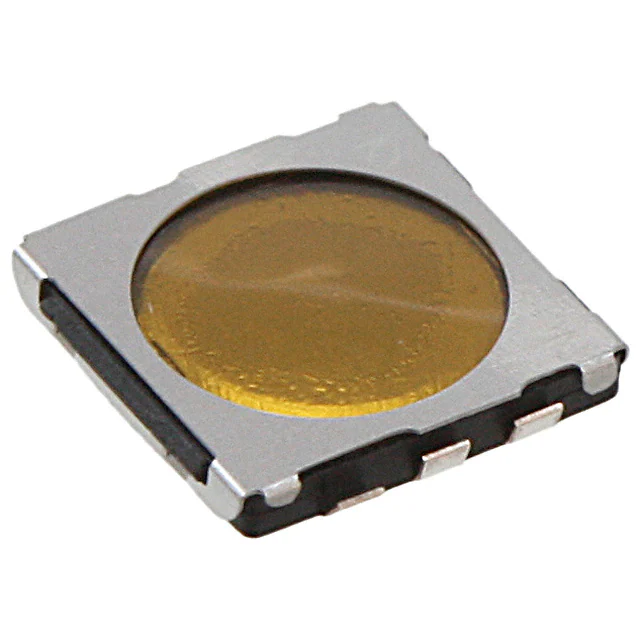

EVP-AHAG6ASWITCH TACT SPST-NO 0.02A 15V |
0 |
|
Datasheet |
EVPAH | Tape & Reel (TR) | Obsolete | SPST-NO x 2 | Off-Mom-Mom | 0.02A @ 15VDC | Flush | Surface Mount | 0.59mm | - | Top Actuated | J Lead | 4.10mm x 4.00mm | Non-Illuminated | - | - | 80/160gf | - | Grounding Pin | -20°C ~ 70°C |
|

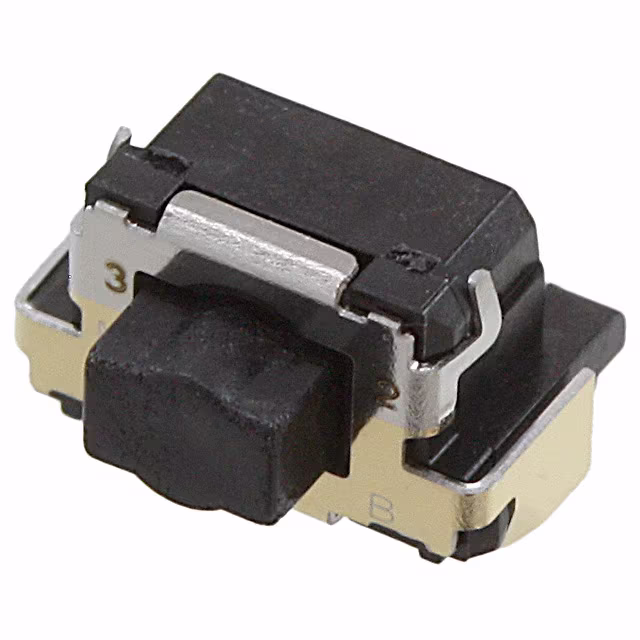

EVQ-Q0G03KSWITCH TACT SPST-NO 0.02A 15V |
0 |
|
Datasheet |
EVQQ0 | Tape & Reel (TR) | Obsolete | SPST-NO x 2 | Off-Mom-Mom | 0.02A @ 15VDC | Rectangular Button | Edge Mount, Right Angle | - | - | - | SMD (SMT) Tab | 6.20mm x 3.75mm | Non-Illuminated | - | - | 100/260gf | - | - | -20°C ~ 70°C |
|
320.02E11TAKBLKSWITCH TACT SPST-NO 0.025A 50V |
0 |
|
Datasheet |
320 | Tray | Active | SPST-NO | Off-Mom | 0.025A @ 50VDC | Rectangular Button | Through Hole | 14.90mm | - | Top Actuated | PC Pin | 12.40mm x 12.40mm | Non-Illuminated | - | - | 135gf | - | Black Cap | -20°C ~ 70°C |
|
|
320.02E11TAKGRYSWITCH TACT SPST-NO 0.025A 50V |
0 |
|
Datasheet |
320 | Tray | Obsolete | SPST-NO | Off-Mom | 0.025A @ 50VDC | Rectangular Button | Through Hole | 14.90mm | - | Top Actuated | PC Pin | 12.40mm x 12.40mm | Non-Illuminated | - | - | 135gf | - | Gray Cap | -20°C ~ 70°C |
|
|
320.03E11TAGBLKSWITCH TACT SPST-NO 0.025A 50V |
0 |
|
Datasheet |
320 | Tray | Obsolete | SPST-NO | Off-Mom | 0.025A @ 50VDC | Plunger for Cap | Through Hole | - | - | Top Actuated | PC Pin | 12.40mm x 12.40mm | Non-Illuminated | - | - | 135gf | - | - | -20°C ~ 70°C |
|
|
320.03E11TAKGRYSWITCH TACT SPST-NO 0.025A 50V |
0 |
|
Datasheet |
320 | Tray | Obsolete | SPST-NO | Off-Mom | 0.025A @ 50VDC | Rectangular Button | Through Hole | 20.20mm | - | Top Actuated | PC Pin | 12.40mm x 12.40mm | Non-Illuminated | - | - | 135gf | - | Gray Cap | -20°C ~ 70°C |
|
|
320.09E11BLUSWITCH TACT SPST-NO 0.025A 50V |
0 |
|
Datasheet |
320 | Tray | Active | SPST-NO | Off-Mom | 0.025A @ 50VDC | Round Button | Through Hole | 15.70mm | - | Top Actuated | PC Pin | 12.40mm x 12.40mm | Non-Illuminated | - | - | 135gf | - | Blue Cap | -20°C ~ 70°C |
|
|
320.09E11GRYSWITCH TACT SPST-NO 0.025A 50V |
0 |
|
Datasheet |
320 | Tray | Active | SPST-NO | Off-Mom | 0.025A @ 50VDC | Round Button | Through Hole | 15.70mm | - | Top Actuated | PC Pin | 12.40mm x 12.40mm | Non-Illuminated | - | - | 135gf | - | Gray Cap | -20°C ~ 70°C |
|
|
320.2E11GRYSWITCH TACT SPST-NO 0.025A 50V |
0 |
|
Datasheet |
320 | Tray | Obsolete | SPST-NO | Off-Mom | 0.025A @ 50VDC | Rectangular Button | Through Hole | 12.00mm | - | Top Actuated | PC Pin | 12.40mm x 12.40mm | Non-Illuminated | - | - | 135gf | - | Gray Cap | -20°C ~ 70°C |
|
|
GSR6.84F130QPSWITCH TACTILE SPST-NO 0.05A 50V |
0 |
|
Datasheet |
GS | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 50VDC | Standard | Through Hole, Right Angle | - | 4.30mm | Side Actuated | PC Pin | 8.00mm x 8.54mm | Non-Illuminated | - | - | 130gf | - | - | -40°C ~ 80°C |
|
|
LL1105BF065QSWITCH TACTILE SPST-NO 0.05A 12V |
0 |
|
Datasheet |
LL1105 | Bag | Obsolete | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 9.50mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 65gf | - | - | -20°C ~ 70°C |
|
|
TL1100CF260RSWITCH TACTILE SPST-NO 0.05A 12V |
0 |
|
Datasheet |
TL1100 | Bulk | Obsolete | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Through Hole, Right Angle | - | 6.45mm | Side Actuated | PC Pin | 12.00mm x 9.90mm | Non-Illuminated | - | - | 260gf | - | Tactile Feedback | -20°C ~ 70°C |
|
|
TL1100EF160QSSDOMESWITCH TACTILE SPST-NO 0.05A 12V |
0 |
|
Datasheet |
TL1100 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 7.50mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 160gf | - | Stainless Steel Contact Dome | -20°C ~ 70°C |
|
|
TL1100F260Q4JWHTSWITCH TACTILE SPST-NO 0.05A 12V |
0 |
|
Datasheet |
TL1100 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Square Button | Through Hole | 10.20mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 260gf | - | Tactile Feedback | -20°C ~ 70°C |
|
|
TL1105BF100RSWITCH TACTILE SPST-NO 0.05A 50V |
0 |
|
Datasheet |
TL1105 | Bulk | Obsolete | SPST-NO | Off-Mom | 0.05A @ 50VDC | Standard | Through Hole | 9.50mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | - | -20°C ~ 70°C |
|
|
TL1105JAF160Q1DBLKSWITCH TACTILE SPST-NO 0.05A 12V |
0 |
|
Datasheet |
TL1105 | Bulk | Obsolete | SPST-NO | Off-Mom | 0.05A @ 12VDC | Square Button | Through Hole, Right Angle | - | 12.00mm | Side Actuated | PC Pin | 7.20mm x 6.50mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
