Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TL1240NF160QSWITCH TACTILE SPST-NO 0.05A 12V |
0 |
|
Datasheet |
TL1240 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Through Hole | 7.20mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|

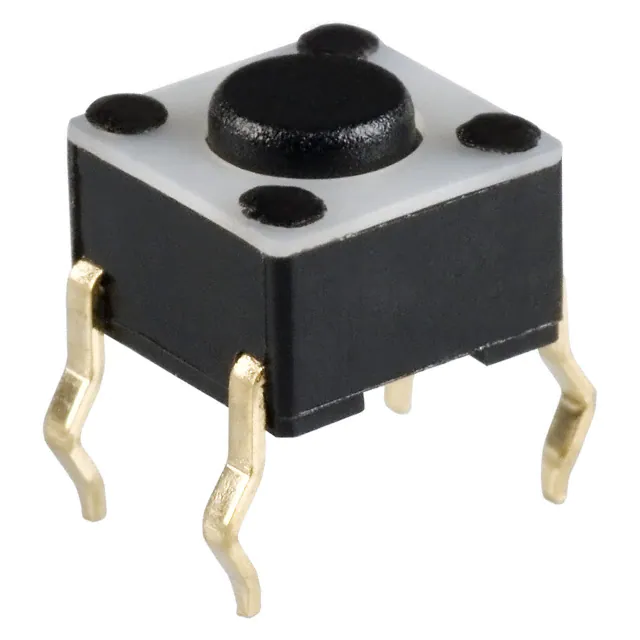

TL1105F160RSWITCH TACTILE SPST-NO 0.05A 50V |
0 |
|
Datasheet |
TL1105 | Bulk | Obsolete | SPST-NO | Off-Mom | 0.05A @ 50VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
TL1105AF160RSWITCH TACTILE SPST-NO 0.05A 50V |
0 |
|
Datasheet |
TL1105 | Bulk | Obsolete | SPST-NO | Off-Mom | 0.05A @ 50VDC | Standard | Through Hole | 5.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|

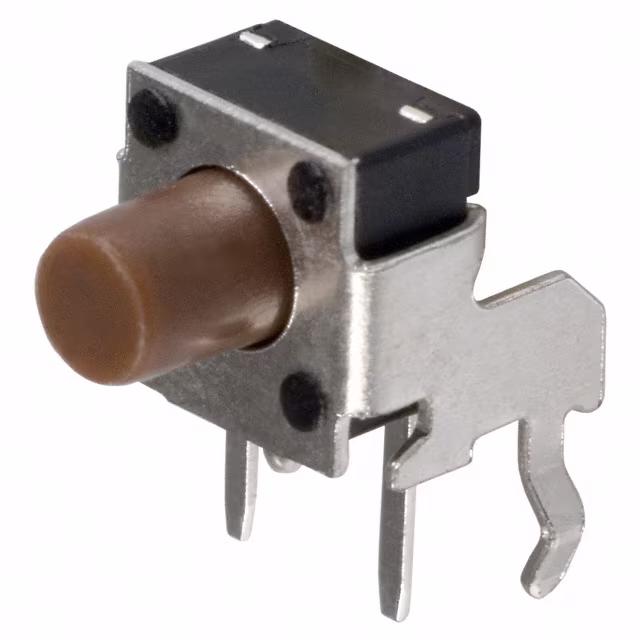

TL1105RF100QSWITCH TACTILE SPST-NO 0.05A 12V |
0 |
|
Datasheet |
TL1105 | Bulk | Obsolete | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | - | 6.15mm | Side Actuated | PC Pin | 7.10mm x 6.55mm | Non-Illuminated | - | - | 100gf | - | - | -20°C ~ 70°C |
|
GSR8.54F130QPSWITCH TACTILE SPST-NO 0.05A 50V |
0 |
|
Datasheet |
GS | Bulk | Obsolete | SPST-NO | Off-Mom | 0.05A @ 50VDC | Standard | Through Hole, Right Angle | - | 6.00mm | Side Actuated | PC Pin | 8.00mm x 8.54mm | Non-Illuminated | - | - | 130gf | - | - | -40°C ~ 85°C |
|

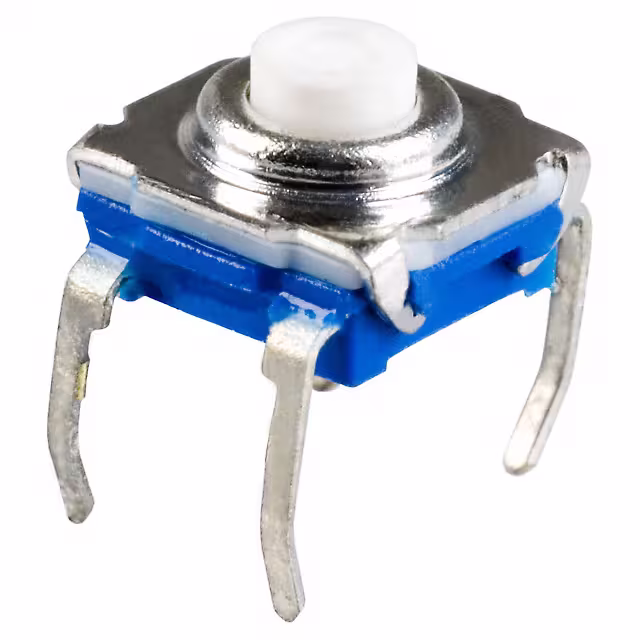

GSE4.70F130QPSWITCH TACTILE SPST-NO 0.05A 50V |
0 |
|
Datasheet |
GS | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 50VDC | Standard | Through Hole | 4.70mm | - | Top Actuated | PC Pin | 7.20mm x 7.20mm | Non-Illuminated | - | - | 130gf | - | Grounding Pin | -40°C ~ 85°C |
|
GSE10.00F130QPSWITCH TACTILE SPST-NO 0.05A 50V |
0 |
|
Datasheet |
GS | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 50VDC | Standard | Through Hole | 10.00mm | - | Top Actuated | PC Pin | 7.20mm x 7.20mm | Non-Illuminated | - | - | 130gf | - | Grounding Pin | -40°C ~ 85°C |
|

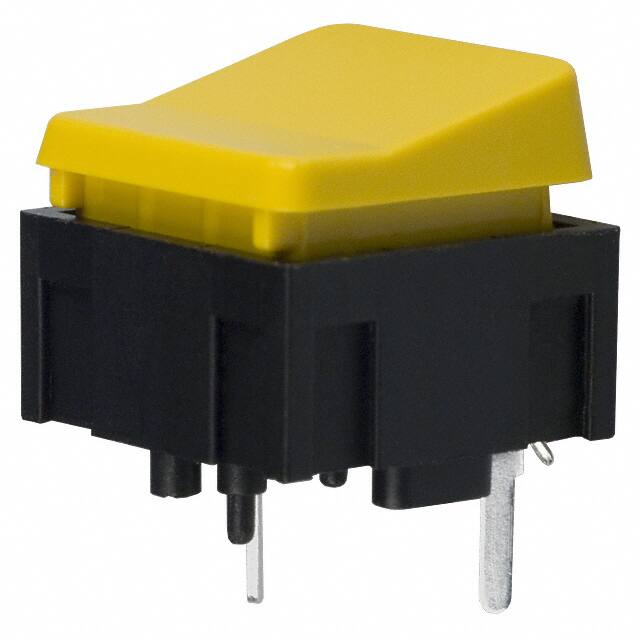

320.22E11YELSWITCH TACT SPST-NO 0.025A 50V |
0 |
|
Datasheet |
320 | Bulk | Obsolete | SPST-NO | Off-Mom | 0.025A @ 50VDC | Square Button | Through Hole | 12.60mm | - | Top Actuated | PC Pin | 12.40mm x 12.40mm | Non-Illuminated | - | - | 135gf | - | Yellow Cap | -20°C ~ 70°C |
|

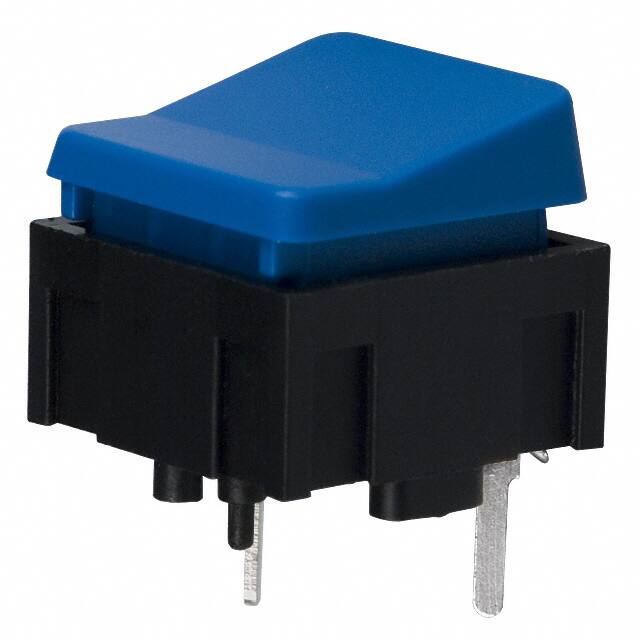

320.22E11BLUSWITCH TACT SPST-NO 0.025A 50V |
0 |
|
Datasheet |
320 | Bulk | Obsolete | SPST-NO | Off-Mom | 0.025A @ 50VDC | Square Button | Through Hole | 12.60mm | - | Top Actuated | PC Pin | 12.40mm x 12.40mm | Non-Illuminated | - | - | 135gf | - | Blue Cap | -20°C ~ 70°C |
|
320.22E11GRNSWITCH TACT SPST-NO 0.025A 50V |
0 |
|
Datasheet |
320 | Bulk | Obsolete | SPST-NO | Off-Mom | 0.025A @ 50VDC | Square Button | Through Hole | 12.60mm | - | Top Actuated | PC Pin | 12.40mm x 12.40mm | Non-Illuminated | - | - | 135gf | - | Green Cap | -20°C ~ 70°C |
|
320.21E11GRYSWITCH TACT SPST-NO 0.025A 50V |
0 |
|
Datasheet |
320 | Bulk | Active | SPST-NO | Off-Mom | 0.025A @ 50VDC | Rectangular Button | Through Hole | 12.00mm | - | Top Actuated | PC Pin | 12.40mm x 12.40mm | Non-Illuminated | - | - | 135gf | - | Gray Cap | -20°C ~ 70°C |
|

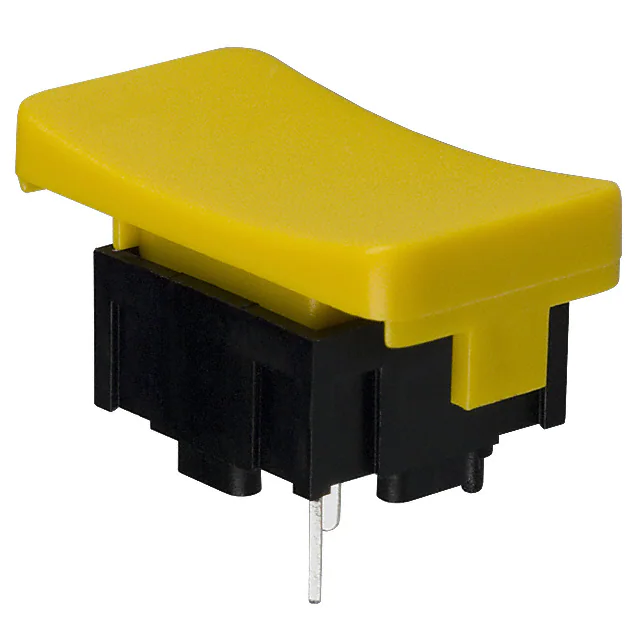

320.21E11YELSWITCH TACT SPST-NO 0.025A 50V |
0 |
|
Datasheet |
320 | Bulk | Active | SPST-NO | Off-Mom | 0.025A @ 50VDC | Rectangular Button | Through Hole | 12.00mm | - | Top Actuated | PC Pin | 12.40mm x 12.40mm | Non-Illuminated | - | - | 135gf | - | Yellow Cap | -20°C ~ 70°C |
|

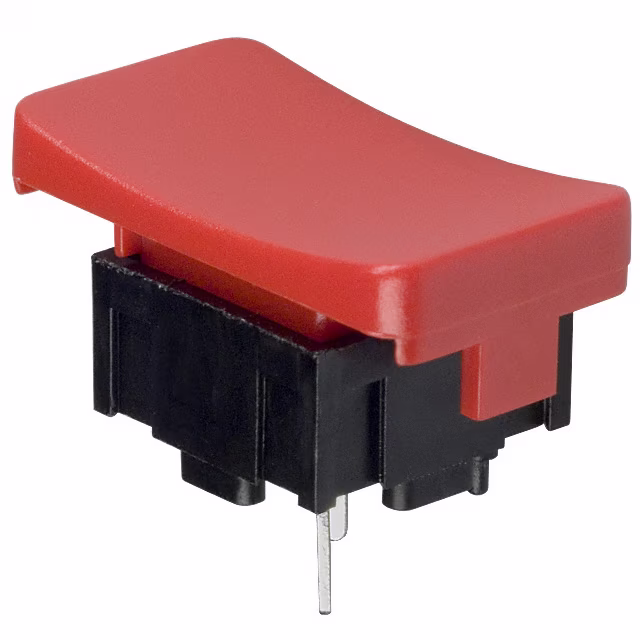

320.21E11REDSWITCH TACT SPST-NO 0.025A 50V |
0 |
|
Datasheet |
320 | Bulk | Active | SPST-NO | Off-Mom | 0.025A @ 50VDC | Rectangular Button | Through Hole | 12.00mm | - | Top Actuated | PC Pin | 12.40mm x 12.40mm | Non-Illuminated | - | - | 135gf | - | Red Cap | -20°C ~ 70°C |
|

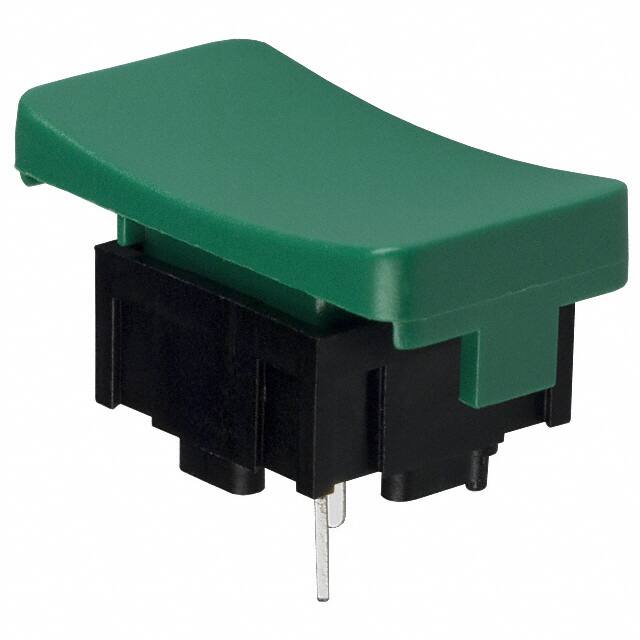

320.21E11GRNSWITCH TACT SPST-NO 0.025A 50V |
0 |
|
Datasheet |
320 | Bulk | Active | SPST-NO | Off-Mom | 0.025A @ 50VDC | Rectangular Button | Through Hole | 12.00mm | - | Top Actuated | PC Pin | 12.40mm x 12.40mm | Non-Illuminated | - | - | 135gf | - | Green Cap | -20°C ~ 70°C |
|

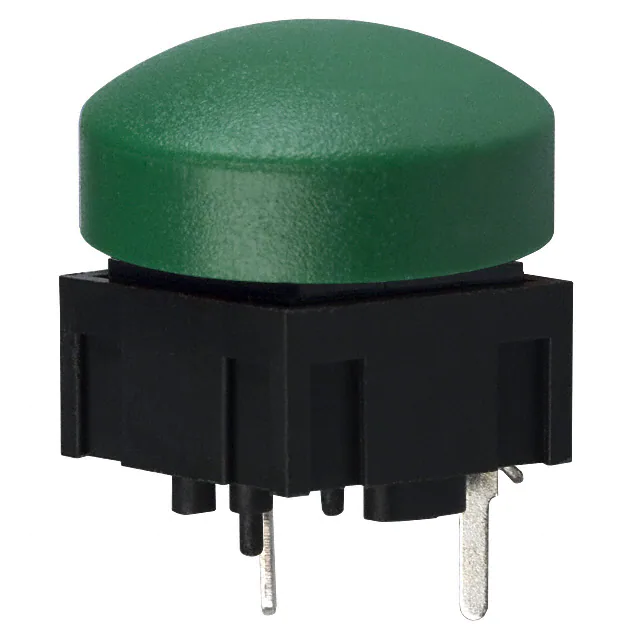

320.02E11.09GRNSWITCH TACT SPST-NO 0.025A 50V |
0 |
|
Datasheet |
320 | Bulk | Obsolete | SPST-NO | Off-Mom | 0.025A @ 50VDC | Round Button | Through Hole | 15.30mm | - | Top Actuated | PC Pin | 12.40mm x 12.40mm | Non-Illuminated | - | - | 135gf | - | Green Cap | -20°C ~ 70°C |
|
TL1105JAF160Q/1DSWITCH TACTILE SPST-NO 0.05A 12V |
0 |
|
Datasheet |
TL1105 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Square Button | Through Hole, Right Angle | - | 12.00mm | Side Actuated | PC Pin | 7.20mm x 6.50mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
|
95C06B3RASWITCH TACTILE SPST-NO 0.05A 12V |
0 |
|
Datasheet |
95C | Bulk | Obsolete | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | - | 3.86mm | Side Actuated | PC Pin | 7.40mm x 6.55mm | Non-Illuminated | - | - | 160gf | - | Tactile Feedback | -25°C ~ 70°C |
|
ED G AC 1SWITCH TACT SPST-NO 0.05A 100V |
0 |
|
Datasheet |
ED | Bag | Obsolete | SPST-NO | Off-Mom | 0.05A @ 100VAC/DC | Snap Dome | Through Hole | 1.20mm | - | Top Actuated | PC Pin | - | Non-Illuminated | - | - | 240gf | IP67 - Dust Tight, Waterproof | Sealed - Fully | -55°C ~ 85°C |
|
|

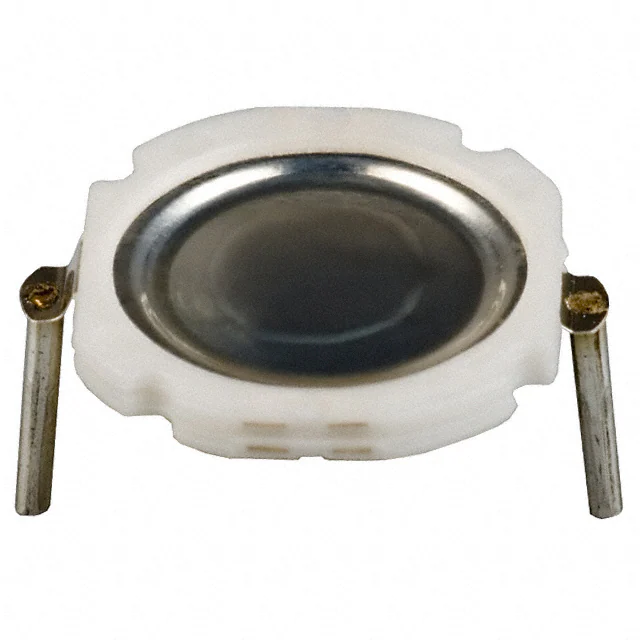

ED S AC 0SWITCH TACTILE SPST-NO 0.1A 100V |
0 |
|
Datasheet |
ED | Bag | Obsolete | SPST-NO | Off-Mom | 0.1A @ 100VAC/DC | Snap Dome | Through Hole | 1.20mm | - | Top Actuated | PC Pin | - | Non-Illuminated | - | - | 240gf | - | - | -25°C ~ 70°C |
|
|
ED S AC 1SWITCH TACTILE SPST-NO 0.1A 100V |
0 |
|
Datasheet |
ED | Bag | Obsolete | SPST-NO | Off-Mom | 0.1A @ 100VAC/DC | Snap Dome | Through Hole | 1.20mm | - | Top Actuated | PC Pin | - | Non-Illuminated | - | - | 240gf | IP67 - Dust Tight, Waterproof | Sealed - Fully | -25°C ~ 70°C |
