Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JB15LPE-BHSWITCH TACTILE SPST-NO 0.05A 24V |
0 |
|
Datasheet |
JB | Box | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 11.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | LED, Yellow | 2 VDC | 176gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
ITS50FV2SRSWITCH TACTILE SPST-NO 0.05A 12V |
0 |
|
Datasheet |
ITS | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | - | - | Top Actuated | Gull Wing | 7.20mm x 6.80mm | Illuminated | LED, White | 3.6 VDC | 160gf | - | - | -25°C ~ 70°C |
|

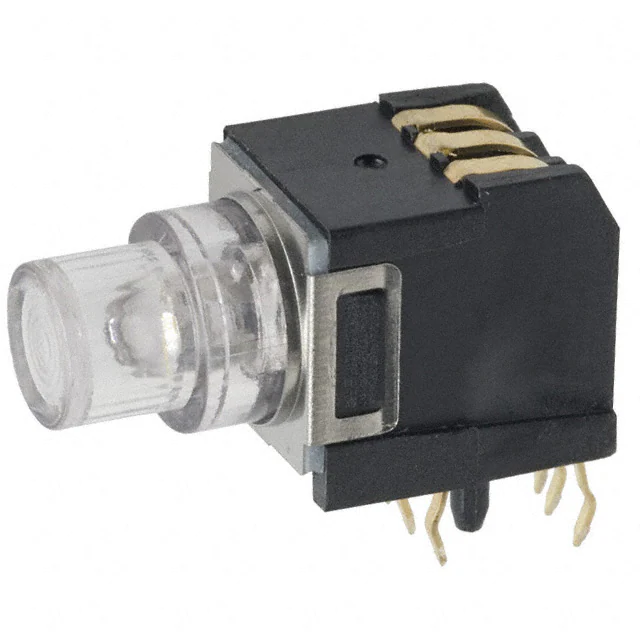

K5V1RD43TSWITCH TACTILE SPDT 0.1A 32V |
715 |
|
Datasheet |
K5V | Bulk | Active | SPDT | On-Mom | 0.1A @ 32VDC | Translucent | Through Hole, Right Angle | - | 12.40mm | Side Actuated | PC Pin | 8.00mm x 10.10mm | Illuminated | LED, Red | - | 400gf | IP40 | Tactile Feedback | -40°C ~ 85°C |
|
|
JB15HBPC-BHSWITCH TACT SPST-NO 0.125A 24V |
0 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | 0.125A @ 24VDC | Square Button | Through Hole | 14.70mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | LED, Red | 1.8 VDC | 265gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
|
JB15HLPF-BHSWITCH TACT SPST-NO 0.125A 24V |
0 |
|
Datasheet |
JB | Bulk | Active | SPST-NO | Off-Mom | 0.125A @ 24VDC | Square Button | Through Hole | 11.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | LED, Green | 2.1 VDC | 265gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|

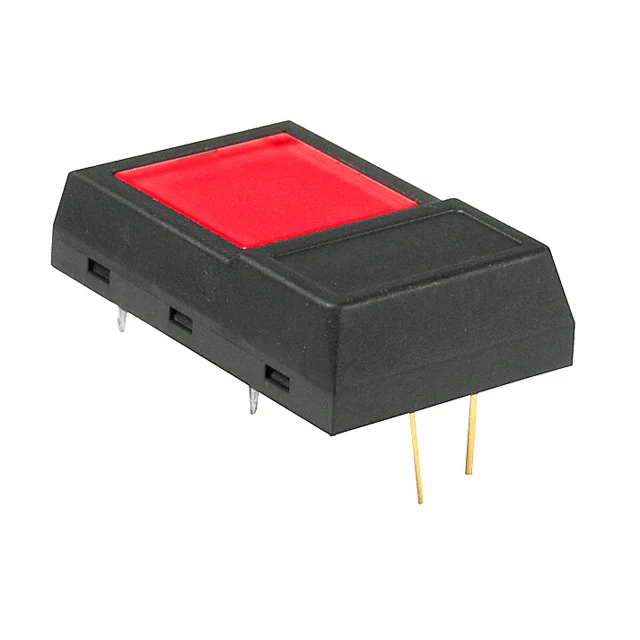

JF15AP1CCSWITCH TACTILE SPST-NO 0.05A 24V |
14 |
|
Datasheet |
JF | Bulk | Obsolete | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 6.70mm | - | Top Actuated | PC Pin | 22.80mm x 17.70mm | Illuminated | LED, Red | 1.77 VDC | 300gf | - | Process Sealed | -25°C ~ 70°C |
|
K5V4WH43GSWITCH TACTILE SPDT 0.1A 32V |
10,192 |
|
Datasheet |
K5V | Tape & Reel (TR) | Active | SPDT | On-Mom | 0.1A @ 32VDC | Translucent | Surface Mount, Right Angle | - | 17.10mm | Side Actuated | Gull Wing | 8.00mm x 10.10mm | Illuminated | LED, White | - | 400gf | IP40 | Tactile Feedback | -40°C ~ 85°C |
|

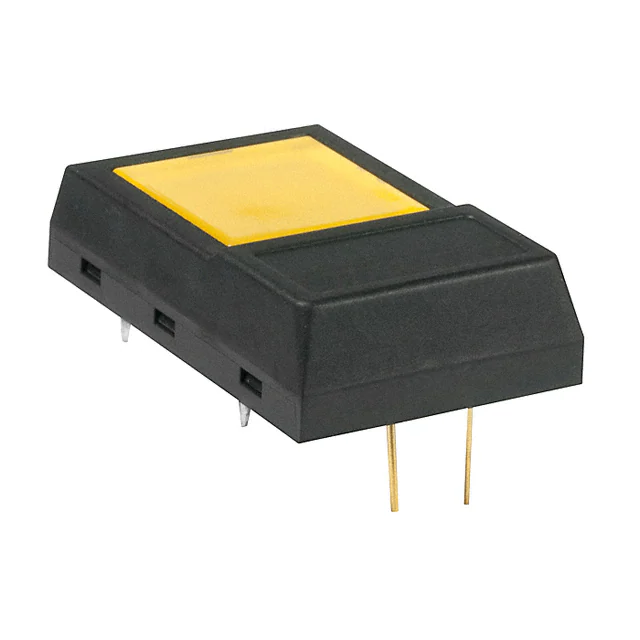

JF15AP1EESWITCH TACTILE SPST-NO 0.05A 24V |
13 |
|
Datasheet |
JF | Bulk | Obsolete | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 6.70mm | - | Top Actuated | PC Pin | 22.80mm x 17.70mm | Illuminated | LED, Yellow | 2.1 VDC | 300gf | - | Process Sealed | -25°C ~ 70°C |
|

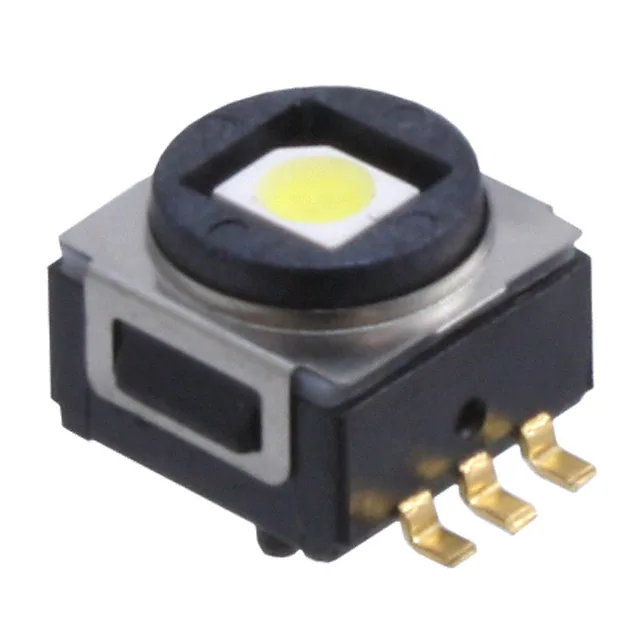

K5ATWH43GPSWITCH TACTILE SPST-NO 0.1A 32V |
261 |
|
Datasheet |
K5AT | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.1A @ 32VDC | Round Button | Surface Mount | 6.10mm | - | Top Actuated | Gull Wing | 8.40mm x 8.00mm | Illuminated | LED, White | - | 400gf | IP40 | Tactile Feedback | -40°C ~ 125°C |
|
|
3.14.002.013/0000SWITCH TACTILE SPST-NO 0.1A 42V |
198 |
|
- |
RF19 | Bulk | Active | SPST-NO | Off-Mom | 0.1A @ 42VAC/DC | Square Button | Through Hole | 9.70mm | - | Top Actuated | PC Pin | 19.05mm x 19.05mm | Illuminated | LED, Yellow | - | 204 ~ 306gf | - | - | -25°C ~ 70°C |
|
|
PTS645SM502LFSTACT |
10,617 |
|
Datasheet |
PTS645 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 5.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
|
1571527-1SWITCH TACTILE SPST-NO 0.05A 24V |
8,844 |
|
Datasheet |
FSMJSML | Bag | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Surface Mount | 4.30mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | - | -35°C ~ 85°C |
|
|
KXT321LHSTACT |
8,500 |
|
Datasheet |
KXT | Bulk | Active | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 0.60mm | - | Top Actuated | SMD (SMT) Tab | 3.00mm x 2.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
|
B3F 1050CKEYSWITCH |
15,518 |
|
Datasheet |
B3F | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole | 7.30mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | - | -25°C ~ 70°C |
|
|
PTS645SM50SMTR92LFSTACT |
12,000 |
|
Datasheet |
PTS645 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 5.00mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
|
B3FS1114BSWITCH TACTILE SPST-NO 0.05A 24V |
15,000 |
|
Datasheet |
B3FS | - | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | - | Surface Mount | - | - | Top Actuated | Gull Wing | 6.30mm x 6.00mm | Non-Illuminated | - | - | - | - | - | -25°C ~ 70°C |
|
KMT072NGJLHSTACT |
10,000 |
|
Datasheet |
KMT0 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 32VDC | Standard | Surface Mount | 0.65mm | - | Top Actuated | J Lead | 3.00mm x 2.60mm | Non-Illuminated | - | - | 230gf | IP68 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
B3F 1125RSWITCH TACTILE SPST-NO 0.05A 24V |
22,290 |
|
Datasheet |
B3F | Box | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 5.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -25°C ~ 70°C |
|
|
PTS840ESDGKPSMTRLFSTACT |
24,500 |
|
Datasheet |
PTS840 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount, Right Angle | - | - | Side Actuated | Gull Wing | 4.70mm x 2.90mm | Non-Illuminated | - | - | 220gf | - | - | -40°C ~ 85°C |
|
|
B3FS1132MKEYSWITCH |
3,000 |
|
Datasheet |
B3FS | - | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Surface Mount | 3.10mm | - | Top Actuated | Gull Wing | 6.30mm x 6.00mm | Non-Illuminated | - | - | 150gf | - | - | -25°C ~ 70°C |
