Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B3F-5101SWITCH TACTILE SPST-NO 0.05A 24V |
298 |
|
Datasheet |
B3F | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 130gf | - | Grounding Pin | -25°C ~ 70°C |
|
B3W-9000-G2NSWITCH TACTILE SPST-NO 0.05A 24V |
252 |
|
Datasheet |
B3W-9 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 10.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | LED, Green | 2.1 VDC | 160gf | - | Sealed - Fully | -25°C ~ 70°C |
|
1.14.002.106/0000SWITCH TACTILE SPST-NO 0.1A 35V |
480 |
|
Datasheet |
MICON 5 | Tube | Active | SPST-NO | Off-Mom | 0.1A @ 35VAC/DC | Standard | Through Hole | 3.80mm | - | Top Actuated | PC Pin | 6.40mm x 5.10mm | Non-Illuminated | - | - | 300gf | - | Tactile Feedback | -40°C ~ 85°C |
|
JB15KP-BHSWITCH TACTILE SPST-NO 0.05A 24V |
10 |
|
Datasheet |
JB | Box | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 11.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | - | - | 176gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
228FMVABBRSWITCH TACTILE SPST-NO 0.05A 12V |
417 |
|
Datasheet |
228F | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Square Button | Surface Mount | 7.70mm | - | Top Actuated | Gull Wing | 7.50mm x 7.50mm | Illuminated | LED, Blue | - | 160gf | - | - | -20°C ~ 70°C |
|
|
1.14.002.016/0000SWITCH TACTILE SPST-NO 0.1A 35V |
394 |
|
Datasheet |
MICON 5 | Tube | Active | SPST-NO | Off-Mom | 0.1A @ 35VAC/DC | Standard | Through Hole | 3.80mm | - | Top Actuated | PC Pin | 6.40mm x 5.10mm | Non-Illuminated | - | - | 850gf | - | Tactile Feedback | -40°C ~ 85°C |
|
B3W-9012-Y1NSWITCH TACTILE SPST-NO 0.05A 24V |
300 |
|
Datasheet |
B3W-9 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 10.20mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Illuminated | LED, Yellow | 2.4 VDC | 230gf | - | Sealed - Fully | -25°C ~ 70°C |
|
1241.1624.3SWITCH TACTILE SPST-NO 0.05A 42V |
170 |
|
Datasheet |
PMS | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 42VDC | Standard | Through Hole | 9.85mm | - | Top Actuated | PC Pin | 11.40mm x 11.40mm | Non-Illuminated | - | - | 180gf | IP40 | Tactile Feedback | -40°C ~ 85°C |
|
B3W-9002-HG1CSWITCH TACTILE SPST-NO 0.05A 24V |
297 |
|
Datasheet |
B3W-9 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 10.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | LED, Green | 3.7 VDC | 230gf | - | Sealed - Fully | -25°C ~ 70°C |
|

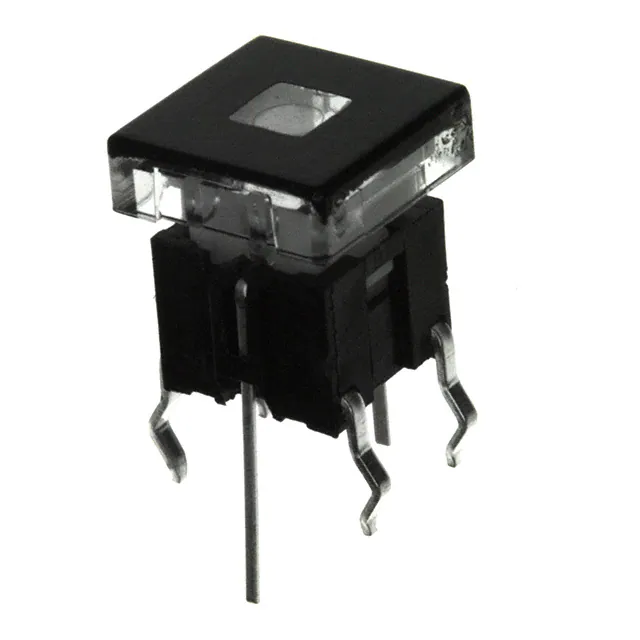

TL1240YQ2JBLKSWITCH TACTILE SPST-NO 0.05A 12V |
145 |
|
Datasheet |
TL1240 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Square Button | Through Hole | 8.20mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Illuminated | LED, Yellow | 2.8 VDC | 160gf | - | - | -20°C ~ 70°C |
|
TL6215VF200RBTSWITCH TACTILE SPST-NO 0.05A 12V |
482 |
|
Datasheet |
TL6215 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Through Hole | 8.80mm | - | Top Actuated | PC Pin | 7.70mm x 6.37mm | Illuminated | LED, Red | 1.95 VDC | 200gf | IP67 - Dust Tight, Waterproof | - | -20°C ~ 70°C |
|
1241.1618.11SWITCH TACTILE SPST-NO 0.05A 42V |
196 |
|
Datasheet |
SMS | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 42VDC | Standard | Surface Mount | 7.75mm | - | Top Actuated | Gull Wing | 11.40mm x 11.40mm | Non-Illuminated | - | - | 220gf | IP67 - Dust Tight, Waterproof | Tactile Feedback | -40°C ~ 85°C |
|
JB15KP-2ESWITCH TACTILE SPST-NO 0.05A 24V |
258 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 11.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | - | - | 176gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
|
MD40G LFSSWITCH TACTILE |
989 |
|
Datasheet |
- | Bulk | Active | - | - | - | Spherical | Through Hole | 4.80mm | - | Top Actuated | PC Pin | 12.70mm x 12.70mm | Non-Illuminated | - | - | 245gf | - | - | - |
|
B3W-9000-Y1CSWITCH TACTILE SPST-NO 0.05A 24V |
300 |
|
Datasheet |
B3W-9 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 10.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | LED, Yellow | 2.4 VDC | 160gf | - | Sealed - Fully | -25°C ~ 70°C |
|
B3W-9000-R1CSWITCH TACTILE SPST-NO 0.05A 24V |
285 |
|
Datasheet |
B3W-9 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 10.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | LED, Red | 1.8 VDC | 160gf | - | Sealed - Fully | -25°C ~ 70°C |
|
|
B3W-9002-Y1CSWITCH TACTILE SPST-NO 0.05A 24V |
278 |
|
Datasheet |
B3W-9 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 10.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | LED, Yellow | 2.4 VDC | 230gf | - | Sealed - Fully | -25°C ~ 70°C |
|
|
B3W-9002-R1CSWITCH TACTILE SPST-NO 0.05A 24V |
186 |
|
Datasheet |
B3W-9 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 10.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | LED, Red | 1.8 VDC | 230gf | - | Sealed - Fully | -25°C ~ 70°C |
|
B3W-9002-HG1NSWITCH TACTILE SPST-NO 0.05A 24V |
290 |
|
Datasheet |
B3W-9 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 10.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | LED, Green | 3.7 VDC | 230gf | - | Sealed - Fully | -25°C ~ 70°C |
|
B3W-9012-R2NSWITCH TACTILE SPST-NO 0.05A 24V |
260 |
|
Datasheet |
B3W-9 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 10.20mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Illuminated | LED, Red | 1.8 VDC | 230gf | - | Sealed - Fully | -25°C ~ 70°C |
