Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7914J-1-000ESWITCH TACTILE SPST-NO 0.1A 16V |
101,085 |
|
Datasheet |
7914 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.1A @ 16VAC/DC | Standard | Surface Mount | 4.19mm | - | Top Actuated | J Lead | 5.00mm x 5.00mm | Non-Illuminated | - | - | 300gf | IP67 - Dust Tight, Waterproof | - | -55°C ~ 125°C |
|
TL3304AF160QJSWITCH TACTILE SPST-NO 0.05A 50V |
24,461 |
|
Datasheet |
TL3304 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 50VDC | Standard | Surface Mount | 3.40mm | - | Top Actuated | J Lead | 6.20mm x 6.20mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
B3WN-6002SWITCH TACTILE SPST-NO 0.05A 12V |
6,256 |
|
Datasheet |
B3WN | Cut Tape (CT) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 13.00mm | - | Top Actuated | PC Pin | 8.00mm x 8.00mm | Non-Illuminated | - | - | 200gf | IP67 - Dust Tight, Waterproof | Sealed - Fully | -25°C ~ 85°C |
|
KMR231NG LFSSWITCH TACTILE SPST-NO 0.05A 32V |
10,376 |
|
Datasheet |
KMR2 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 32VDC | Standard | Surface Mount | 1.90mm | - | Top Actuated | Gull Wing | 4.60mm x 2.80mm | Non-Illuminated | - | - | 300gf | - | - | -40°C ~ 85°C |
|
EVQ-P46B3MSWITCH TACTILE SPST-NO 0.02A 15V |
4,216 |
|
Datasheet |
EVQP4 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 15VDC | Rectangular Button | Edge Mount, Right Angle | - | 2.10mm | Side Actuated | SMD (SMT) Tab | 6.20mm x 2.55mm | Non-Illuminated | - | - | 350gf | - | - | -40°C ~ 85°C |
|
ATS2D3G NC LFGSWITCH TACTILE SPST-NC 0.01A 32V |
34,132 |
|
Datasheet |
ATS | Tape & Reel (TR) | Active | SPST-NC | On-Mom | 0.01A @ 32VDC | Standard | Surface Mount | 3.20mm | - | Top Actuated | Gull Wing | 6.00mm x 3.80mm | Non-Illuminated | - | - | 204gf | IP54 - Dust Protected, Water Resistant | - | -40°C ~ 125°C |
|
KSC243J LFGSWITCH TACTILE SPST-NO 0.01A 32V |
20,513 |
|
Datasheet |
KSC | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.01A @ 32VDC | Standard | Surface Mount | 3.50mm | - | Top Actuated | J Lead | 6.20mm x 6.20mm | Non-Illuminated | - | - | 300gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 125°C |
|
KSA0V311 LFTRSWITCH TACTILE SPST-NO 0.05A 32V |
10,534 |
|
Datasheet |
KSA | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 32VDC | Standard | Through Hole, Right Angle | - | 3.23mm | Side Actuated | PC Pin | 8.00mm x 8.00mm | Non-Illuminated | - | - | 130gf | IP60 - Dust Tight | - | -40°C ~ 90°C |
|
|
PTS820J20MSMTR LFSSWITCH TACTILE SPST-NO 0.05A 12V |
50,422 |
|
Datasheet |
PTS820 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 2.00mm | - | Top Actuated | J Lead | 3.90mm x 2.90mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
|
PTS820J25MSMTR LFSSWITCH TACTILE SPST-NO 0.05A 12V |
39,791 |
|
Datasheet |
PTS820 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 2.50mm | - | Top Actuated | J Lead | 3.90mm x 2.90mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
EVP-AA102KSWITCH TACTILE SPST-NO 0.02A 15V |
9,594 |
|
Datasheet |
EVPAA | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 15VDC | Rectangular Button | Surface Mount | 1.70mm | - | Top Actuated | J Lead | 3.50mm x 2.90mm | Non-Illuminated | - | - | 100gf | - | Grounding Pin | -40°C ~ 85°C |
|
PTS820 J25K SMTR LFSSWITCH TACTILE SPST-NO 0.05A 12V |
7,302 |
|
Datasheet |
PTS820 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 2.50mm | - | Top Actuated | J Lead | 3.90mm x 2.90mm | Non-Illuminated | - | - | 250gf | - | - | -40°C ~ 85°C |
|
B3SN-3012PSWITCH TACTILE SPST-NO 0.05A 24V |
41,613 |
|
Datasheet |
B3SN | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Surface Mount | 3.10mm | - | Top Actuated | J Lead | 6.50mm x 6.00mm | Non-Illuminated | - | - | 160gf | IP67 - Dust Tight, Waterproof | Sealed - Fully | -25°C ~ 70°C |
|
B3U-1000P-BSWITCH TACTILE SPST-NO 0.05A 12V |
13,952 |
|
Datasheet |
B3U | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 1.60mm | - | Top Actuated | SMD (SMT) Tab | 3.00mm x 2.50mm | Non-Illuminated | - | - | 153gf | Dust Proof | - | -25°C ~ 70°C |
|

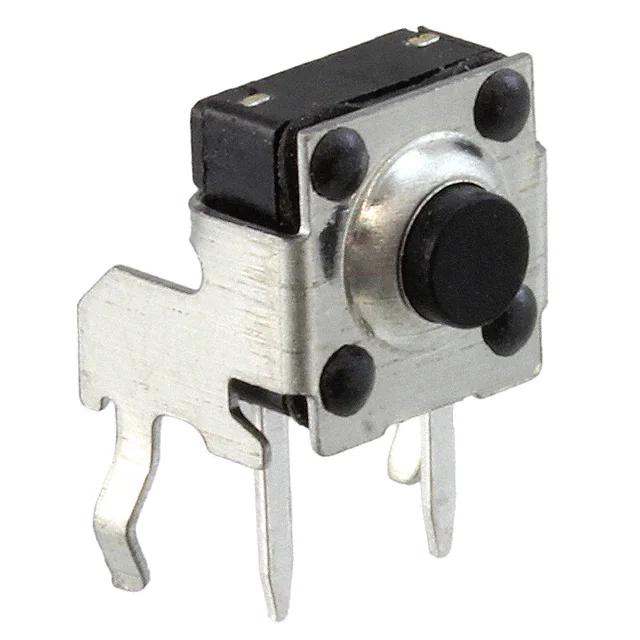

1571610-2SWITCH TACTILE SPST-NO 0.05A 24V |
12,141 |
|
Datasheet |
FSMRAJS | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole, Right Angle | - | 3.85mm | Side Actuated | PC Pin | 6.90mm x 6.80mm | Non-Illuminated | - | - | 160gf | IP67 - Dust Tight, Waterproof | - | -35°C ~ 85°C |
|
TL6330AF200QSWITCH TACTILE SPST-NO 0.05A 32V |
19,442 |
|
Datasheet |
TL6330 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 32VDC | Rectangular Button | Surface Mount | 1.90mm | - | Top Actuated | SMD (SMT) Tab | 4.60mm x 2.80mm | Non-Illuminated | - | - | 200gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
7914G-1-032ESWITCH TACTILE SPST-NO 0.1A 16V |
10,751 |
|
Datasheet |
7914 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.1A @ 16VAC/DC | Standard | Surface Mount | 3.43mm | - | Top Actuated | Gull Wing | 5.00mm x 5.00mm | Non-Illuminated | - | - | 300gf | IP67 - Dust Tight, Waterproof | - | -55°C ~ 125°C |
|
|
KMR421NG ULC LFSSWITCH TACTILE SPST-NO 0.05A 32V |
10,140 |
|
Datasheet |
KMR4 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 32VDC | Standard | Surface Mount | 2.50mm | - | Top Actuated | Gull Wing | 4.60mm x 2.80mm | Non-Illuminated | - | - | 200gf | - | - | -40°C ~ 85°C |
|

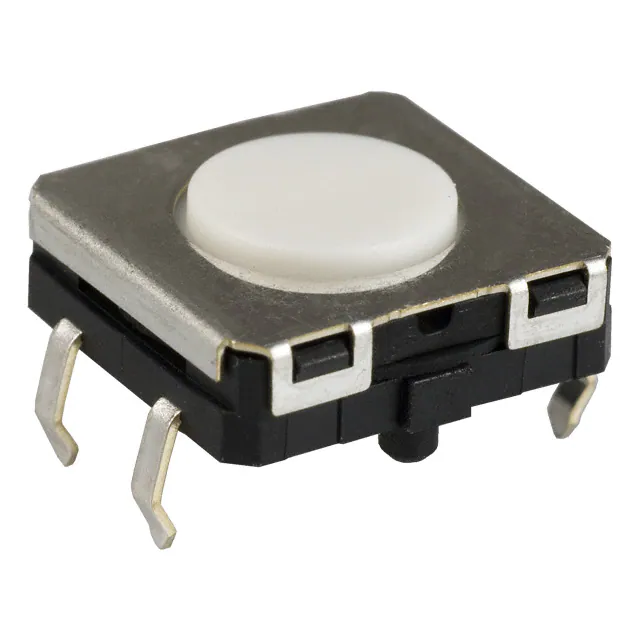

B3W-4000SWITCH TACTILE SPST-NO 0.05A 24V |
7,652 |
|
Datasheet |
B3W | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 200gf | IP67 - Dust Tight, Waterproof | - | -25°C ~ 70°C |
|
|
PTS830GM140SMTR LFSSWITCH TACTILE SPST-NO 0.05A 12V |
56,766 |
|
Datasheet |
PTS830 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 1.40mm | - | Top Actuated | Gull Wing | 3.50mm x 2.60mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
Tactile Switches Electronic Components
Explore Tactile Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
