Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KT11B2JM34LFSSWITCH TACTILE SPST-NO 1VA 32V |
5,382 |
|
Datasheet |
KT | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 1VA @ 32VAC/DC | Standard | Surface Mount | 5.24mm | - | Top Actuated | J Lead | 6.38mm x 6.22mm | Non-Illuminated | - | - | 300gf | IP57 - Dust Protected, Waterproof | Sealed | -40°C ~ 90°C |
|

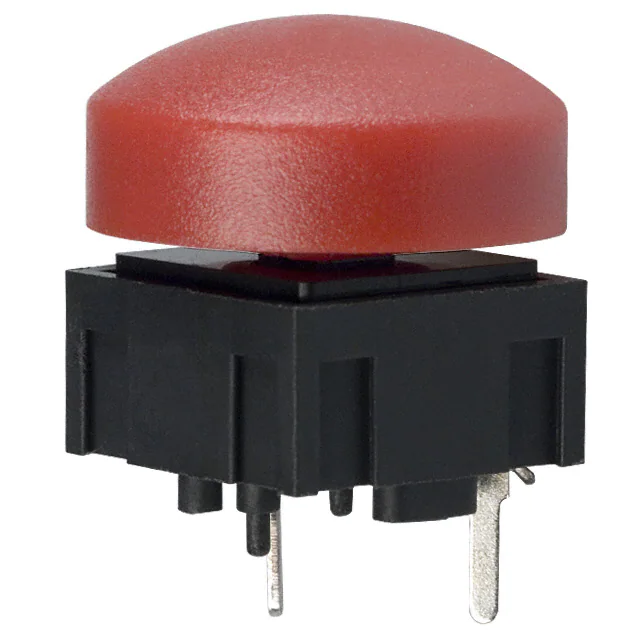

320.02E11.09REDSWITCH TACT SPST-NO 0.025A 50V |
302 |
|
Datasheet |
320 | Bulk | Active | SPST-NO | Off-Mom | 0.025A @ 50VDC | Round Button | Through Hole | 15.30mm | - | Top Actuated | PC Pin | 12.40mm x 12.40mm | Non-Illuminated | - | - | 135gf | - | Red Cap | -20°C ~ 70°C |
|
JB15HAP-2HSWITCH TACT SPST-NO 0.125A 24V |
266 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | 0.125A @ 24VDC | Square Button | Through Hole | 14.70mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | - | - | 265gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
TL1220R1BBBRHALOSWITCH TACTILE SPST-NO 0.05A 12V |
576 |
|
Datasheet |
TL1220 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Through Hole | 9.90mm | - | Top Actuated | PC Pin | 7.60mm x 6.00mm | Illuminated | LED, Red | 2.3 VDC | 180gf | - | Tactile Feedback | -40°C ~ 85°C |
|
1241.1032.3SWITCH TACTILE SPST-NO 0.05A 24V |
244 |
|
Datasheet |
MTG Green | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 10.00mm | - | Top Actuated | PC Pin | 12.65mm x 12.65mm | Non-Illuminated | - | - | 250gf | IP40 | Tactile Feedback | -25°C ~ 85°C |
|
B3W-9002-RG2CSWITCH TACTILE SPST-NO 0.05A 24V |
292 |
|
Datasheet |
B3W-9 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 10.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | LED, Green/Red | 1.8, 2.1 VDC | 230gf | - | Sealed - Fully | -25°C ~ 70°C |
|
B3W-9002-RG2NSWITCH TACTILE SPST-NO 0.05A 24V |
287 |
|
Datasheet |
B3W-9 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 10.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | LED, Green/Red | 1.8, 2.1 VDC | 230gf | - | Sealed - Fully | -25°C ~ 70°C |
|

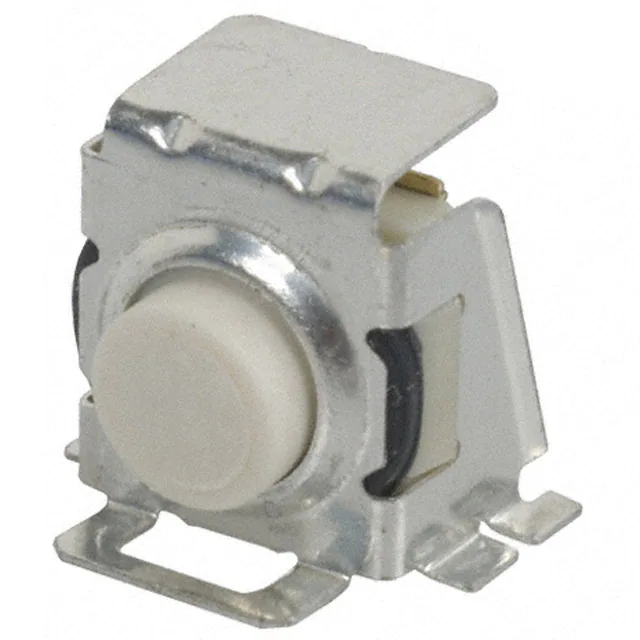

KT11P3SA2M35LFGSWITCH TACTILE SPST-NO 1VA 32V |
886 |
|
Datasheet |
KT | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 1VA @ 32VAC/DC | Standard | Surface Mount, Right Angle | - | - | Side Actuated | Gull Wing | 7.77mm x 6.41mm | Non-Illuminated | - | - | 300gf | IP57 - Dust Protected, Waterproof | Sealed | -40°C ~ 90°C |
|
|
TL1220S3NNBWTRIANGSWITCH TACTILE SPST-NO 0.05A 12V |
947 |
|
Datasheet |
TL1220 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Through Hole | 14.00mm | - | Top Actuated | PC Pin | 7.60mm x 6.00mm | Illuminated | LED, White | 3.6 VDC | 180gf | - | - | -40°C ~ 85°C |
|

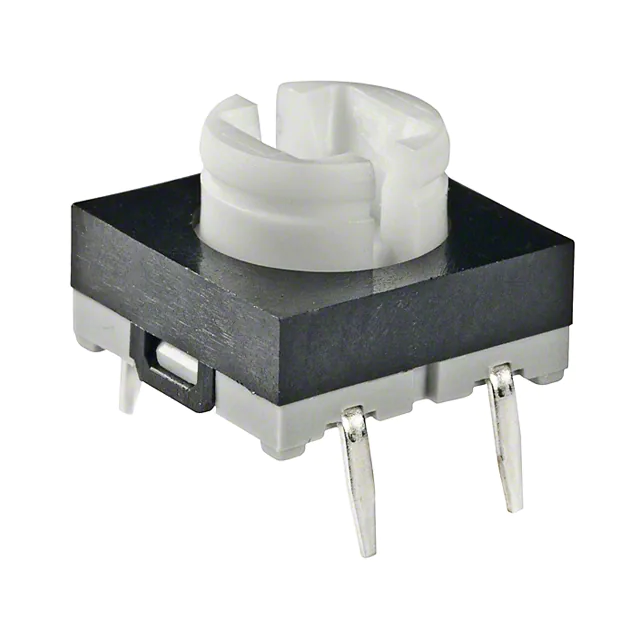

JB15HKPSWITCH TACT SPST-NO 0.125A 24V |
527 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | 0.125A @ 24VDC | Plunger for Cap | Through Hole | - | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | - | - | 265gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
TL6215VF200RETSWITCH TACTILE SPST-NO 0.05A 12V |
823 |
|
Datasheet |
TL6215 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Through Hole | 10.70mm | - | Top Actuated | PC Pin | 7.70mm x 6.37mm | Illuminated | LED, Red | 1.95 VDC | 200gf | IP67 - Dust Tight, Waterproof | - | -20°C ~ 70°C |
|
TL6215VF200GETSWITCH TACTILE SPST-NO 0.05A 12V |
275 |
|
Datasheet |
TL6215 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Through Hole | 10.70mm | - | Top Actuated | PC Pin | 7.70mm x 6.37mm | Illuminated | LED, Green | 2.1 VDC | 200gf | IP67 - Dust Tight, Waterproof | - | -20°C ~ 70°C |
|

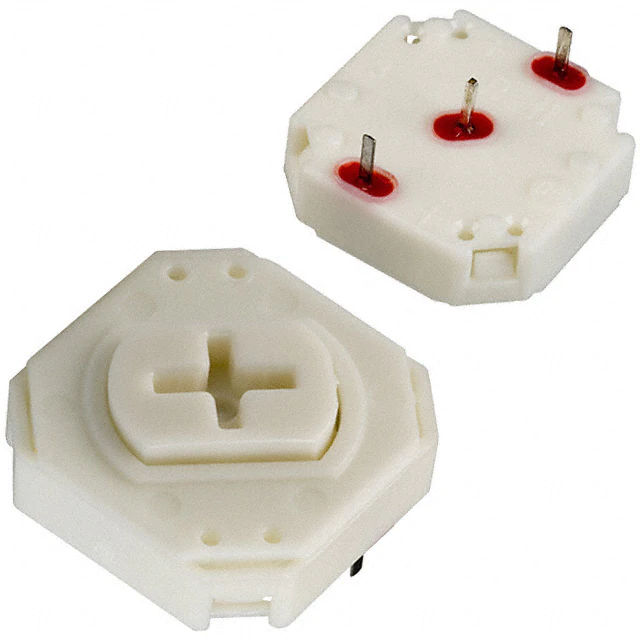

3.14.100.601/0000SWITCH TACTILE SPST-NO 0.1A 35V |
455 |
|
Datasheet |
RF15N | Tube | Active | SPST-NO | Off-Mom | 0.1A @ 35VAC/DC | Plunger for Cap | Through Hole | 6.20mm | - | Top Actuated | PC Pin | 15.00mm x 15.00mm | Non-Illuminated | - | - | 296gf | - | - | -25°C ~ 70°C |
|

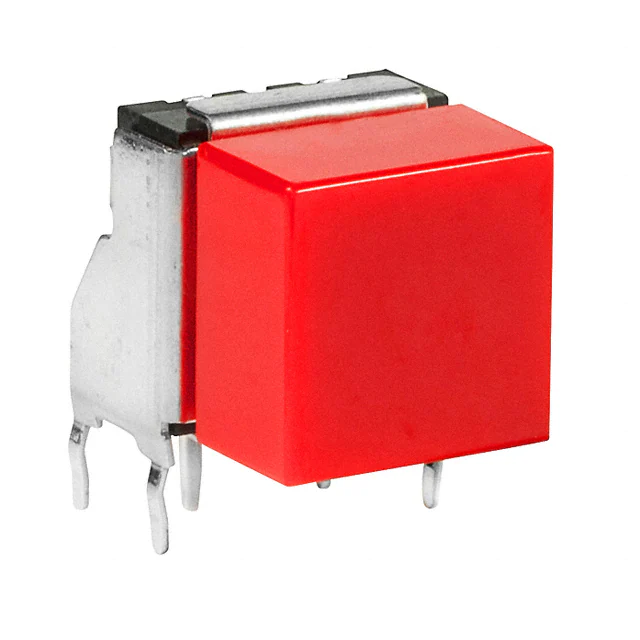

JB15KH-6CSWITCH TACTILE SPST-NO 0.05A 24V |
24 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole, Right Angle | - | 7.76mm | Side Actuated | PC Pin | 10.80mm x 6.54mm | Non-Illuminated | - | - | 176gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|

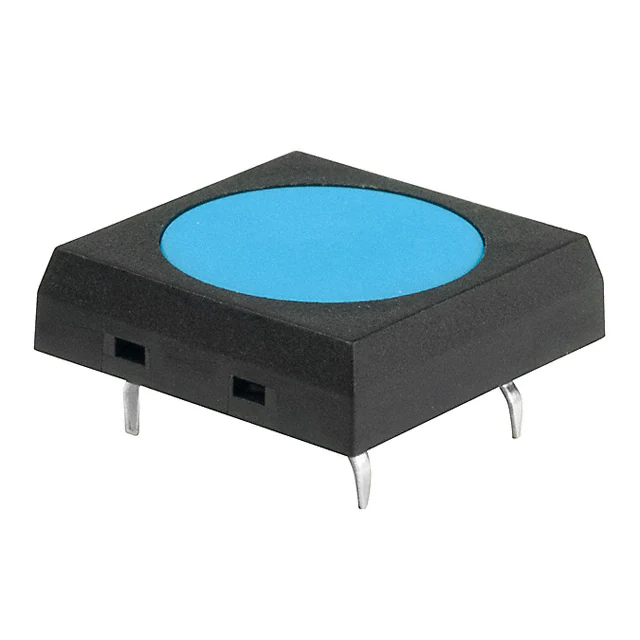

JF15SP2GSWITCH TACTILE SPST-NO 0.05A 24V |
474 |
|
Datasheet |
JF | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Round Button | Through Hole | 5.08mm | - | Top Actuated | PC Pin | 17.70mm x 17.70mm | Non-Illuminated | - | - | 300gf | - | Process Sealed | -25°C ~ 85°C |
|

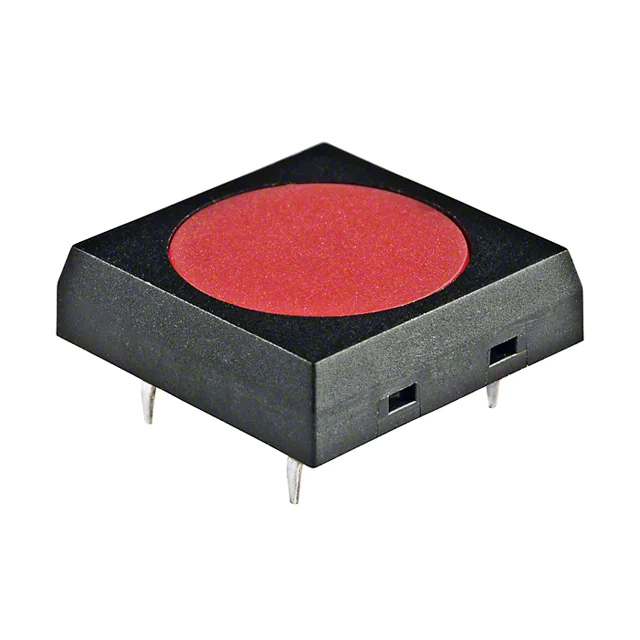

JF15SP2CSWITCH TACTILE SPST-NO 0.05A 24V |
265 |
|
Datasheet |
JF | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Round Button | Through Hole | 5.08mm | - | Top Actuated | PC Pin | 17.70mm x 17.70mm | Non-Illuminated | - | - | 300gf | - | Process Sealed | -25°C ~ 85°C |
|
ITS50FR2STSWITCH TACTILE SPST-NO 0.05A 12V |
1,956 |
|
Datasheet |
ITS | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Through Hole, Right Angle | - | - | Side Actuated | PC Pin | 8.30mm x 9.70mm | Illuminated | LED, White | 3.6 VDC | 160gf | - | - | -25°C ~ 70°C |
|
TL1250F180BQRCLRSWITCH TACTILE SPST-NO 0.05A 12V |
589 |
|
Datasheet |
TL1250 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Through Hole, Right Angle | - | 10.70mm | Side Actuated | PC Pin | 8.30mm x 10.30mm | Illuminated | LED, Blue | 4 VDC | 180gf | - | Tactile Feedback | -20°C ~ 70°C |
|
320.03E11.08GRYSWITCH TACT SPST-NO 0.025A 50V |
839 |
|
Datasheet |
320 | Bulk | Active | SPST-NO | Off-Mom | 0.025A @ 50VDC | Round Button | Through Hole | 18.50mm | - | Top Actuated | PC Pin | 12.40mm x 12.40mm | Non-Illuminated | - | - | 135gf | - | Gray Cap | -20°C ~ 70°C |
|
KT11P2SA2M35LFGSWITCH TACTILE SPST-NO 1VA 32V |
5,900 |
|
Datasheet |
KT | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 1VA @ 32VAC/DC | Standard | Surface Mount, Right Angle | - | - | Side Actuated | Gull Wing | 7.77mm x 6.41mm | Non-Illuminated | - | - | 300gf | IP57 - Dust Protected, Waterproof | Sealed | -40°C ~ 90°C |
Tactile Switches Electronic Components
Explore Tactile Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
