Speakers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SM151708-1SPEAKER 8OHM 300MW TOP PORT 87DB |
64 |
|
Datasheet |
- | Tray | Active | Magnetic | General Purpose | 1.7 kHz ~ 20 kHz | - | 8 Ohms | 87.00 | 100mm | Sound Pressure Level (SPL) | 300 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | PC Pins | 0.591" Dia (15.00mm) |
|

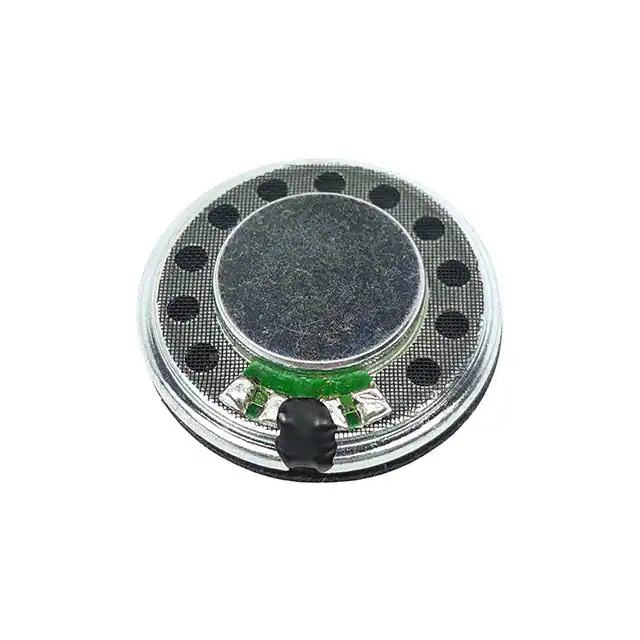

SP-2806YSPEAKER 8OHM 1W TOP PORT 90DB |
95 |
|
Datasheet |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 400 Hz ~ 20 kHz | 450Hz | 8 Ohms | 90.00 | 100mW/100mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Round | - | - | - | - | Solder Pads | 1.102" Dia (28.00mm) |
|
SW181004-1SPEAKER 4OHM 1W TOP PORT 92DB |
30 |
|
Datasheet |
SW | Tray | Active | Magnetic | General Purpose | 900 Hz ~ 10 kHz | 900Hz | 4 Ohms | 92.00 | 100mm | Sound Pressure Level (SPL) | 1 W | 1.2 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.709" Dia (18.00mm) |
|
E-2708SPEAKER 8OHM 1W TOP PORT 90DB |
66 |
|
Datasheet |
- | Tray | Active | Magnetic | Exciter | 350 Hz ~ 6.5 kHz | 350Hz | 8 Ohms | 90.00 | 1W/1M | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Round | - | - | - | - | Solder Pads | 1.035" Dia (26.30mm) |
|
AS01508AO-WP-RSPEAKER 8OHM 700MW TOP PORT 94DB |
81 |
|
Datasheet |
Slim Line Micro | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 14 kHz | 500Hz | 8 Ohms | 94.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP65 - Dust Tight, Water Resistant | - | Solder Pads | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|

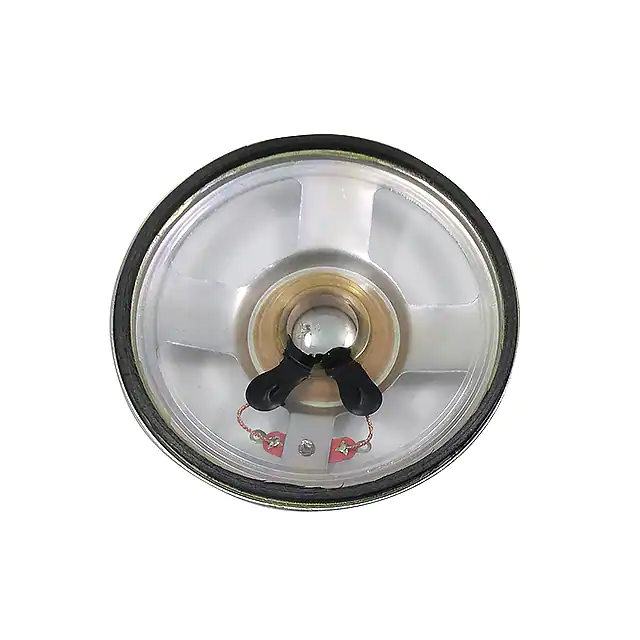

WSP-7608SPEAKER 8OHM 2W TOP PORT 90DB |
88 |
|
Datasheet |
- | Tray | Active | Magnetic | General Purpose | 350 Hz ~ 8 kHz | 350Hz | 8 Ohms | 90.00 | 1W/1M | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Round | - | - | IP65 - Dust Tight, Water Resistant | - | Solder Eyelet(s) | 3.012" Dia (76.50mm) |
|

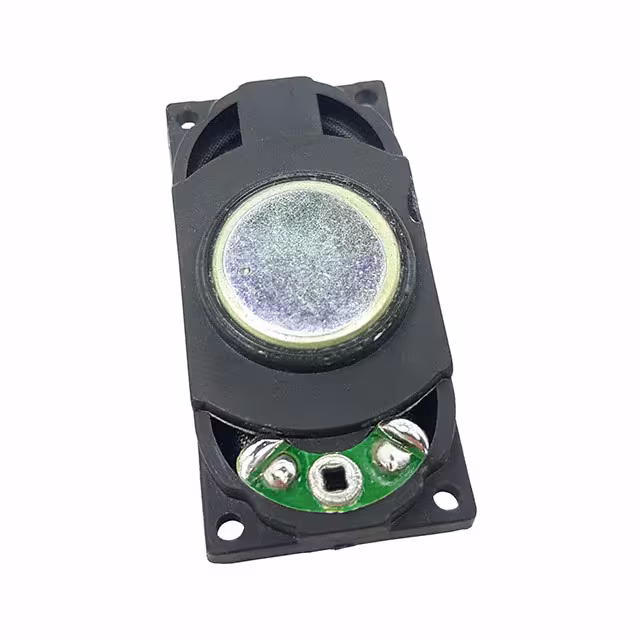

SP-4009-1YSPEAKER 8OHM 2W TOP PORT 90DB |
68 |
|
Datasheet |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 750 Hz ~ 10 kHz | 750Hz | 8 Ohms | 90.00 | 100mW/100mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Rectangular | - | - | - | - | - | 1.575" L x 0.787" W (40.00mm x 20.00mm) |
|
AS01508AO-3-SC-RSPEAKER 8OHM 700MW TOP PORT 94DB |
82 |
|
Datasheet |
Slim Line Micro | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 14 kHz | 500Hz | 8 Ohms | 94.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|

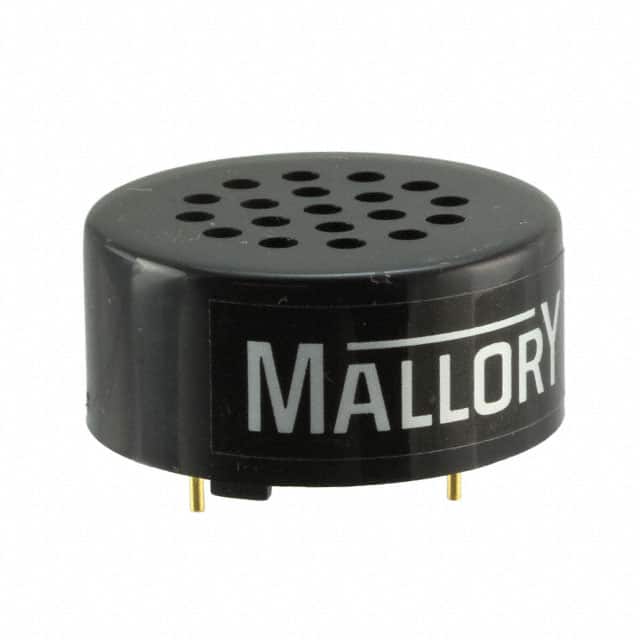

PB-3212PKSPEAKER 8OHM 100MW TOP PORT 85DB |
77 |
|
Datasheet |
PB | Bulk | Active | Magnetic | General Purpose | 1.25 kHz ~ 4 kHz | 1250Hz | 8 Ohms | 85.00 | 1W/1M | Sound Pressure Level (SPL) | 100 mW | 200 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Ferrite | - | - | PC Pins | 1.252" Dia (31.80mm) |
|
CMS-28588N-L152BSPEAKER 8OHM 2W TOP PORT 99DB |
68 |
|
Datasheet |
CMS | Tray | Active | Magnetic | General Purpose | 440 Hz ~ 20 kHz | 550Hz | 8 Ohms | 99.00 | 1W/100mm | Sound Pressure Level (SPL) | 2 W | 2.5 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads with Connector | 1.102" Dia (28.00mm) |
|
SW400508-1SPEAKER 8OHM 500MW TOP PORT 92DB |
28 |
|
Datasheet |
SW | Tray | Active | Magnetic | General Purpose | 550 Hz ~ 10 kHz | 550Hz | 8 Ohms | 92.00 | 100mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | IP67 - Dust Tight, Waterproof | - | Solder Pads | 1.575" Dia (40.00mm) |
|
SW230704-1SPEAKER 4OHM 1W TOP PORT 90DB |
78 |
|
Datasheet |
SW | Tray | Active | Magnetic | General Purpose | 700 Hz ~ 10 kHz | 700Hz | 4 Ohms | 90.00 | 100mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.906" Dia (23.00mm) |
|
AS03508CO-2-RSPEAKER 8OHM 1W TOP PORT 84DB |
46 |
|
Datasheet |
AS | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 20 kHz | 500Hz | 8 Ohms | 84.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Oval, Rectangular Frame | Cloth | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.378" L x 0.787" W (35.00mm x 20.00mm) |
|
AS06004CO-C-RSPEAKER 4OHM 2W TOP PORT 87DB |
68 |
|
Datasheet |
AS | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 20 kHz | 650Hz | 4 Ohms | 87.00 | 1W/500mm | Sound Pressure Level (SPL) | 2 W | 4 W | Top | Rectangular | Cloth | Nd-Fe-B | - | - | Wire Leads | 2.835" L x 1.299" W (72.00mm x 33.00mm) |
|
SW250508-1SPEAKER 8OHM 1W TOP PORT 87DB |
64 |
|
Datasheet |
SW | Tray | Active | Magnetic | General Purpose | 550 Hz ~ 10 kHz | 550Hz | 8 Ohms | 87.00 | 100mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Oval | Polyester, Polyethylene Terephthalate (PET) | - | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.984" L x 0.630" W (25.00mm x 16.00mm) |
|
SW280708-1SPEAKER 8OHM 1.5W TOP PORT 92DB |
31 |
|
Datasheet |
SW | Tray | Active | Magnetic | General Purpose | 700 Hz ~ 10 kHz | 700Hz | 8 Ohms | 92.00 | 100mm | Sound Pressure Level (SPL) | 1.5 W | 2 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | IP67 - Dust Tight, Waterproof | - | Solder Pads | 1.102" Dia (28.00mm) |
|
AS04008PO-2-LW152-RSPEAKER 8OHM 1W TOP PORT 84DB |
40 |
|
Datasheet |
AS | Tray | Active | Magnetic | General Purpose | 450 Hz ~ 20 kHz | 450Hz | 8 Ohms | 84.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Rectangular | Paper | Nd-Fe-B | - | - | Wire Leads | 1.575" L x 1.114" W (40.00mm x 28.30mm) |
|

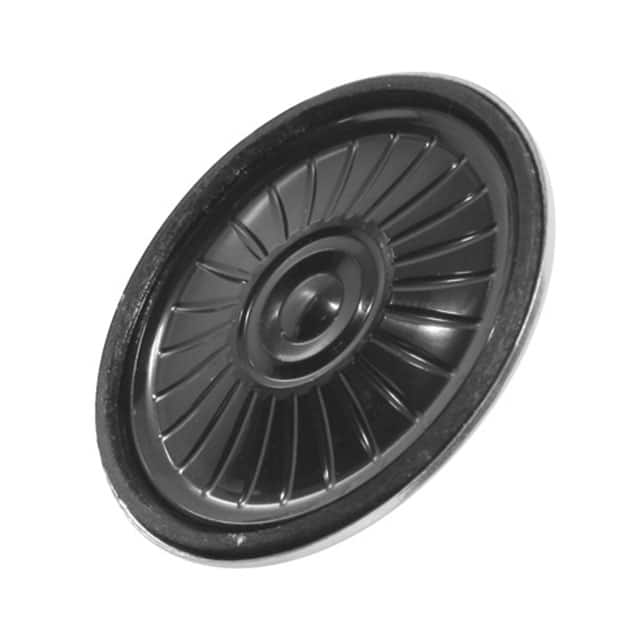

SM400608-1SPEAKER 8OHM 1W TOP PORT 90DB |
49 |
|
Datasheet |
- | Tray | Active | Magnetic | General Purpose | 600 Hz ~ 20 kHz | 600Hz | 8 Ohms | 90.00 | 100mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Solder Pads | 1.575" Dia (40.00mm) |
|

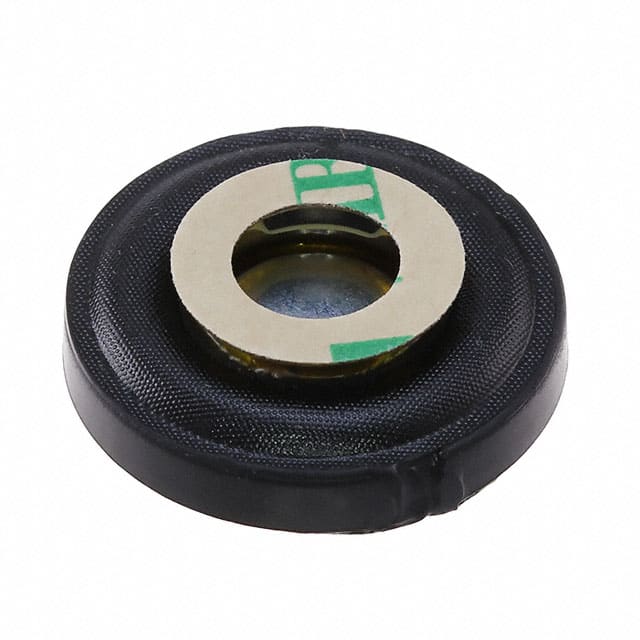

ASX02104-RSPEAKER 4OHM 250MW TOP PORT 72DB |
38 |
|
Datasheet |
ASX | Tray | Active | Magnetic | Exciter | 640 Hz ~ 10.5 kHz | 640Hz | 4 Ohms | 72.00 | 1W/100mm | Sound Pressure Level (SPL) | 250 mW | 500 mW | Top | Round | - | Nd-Fe-B | - | - | Solder Pads | 0.823" Dia (20.90mm) |
|
SP-4029-1SPEAKER 4OHM 2W TOP PORT 85DB |
52 |
|
Datasheet |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 450 Hz ~ 20 kHz | 450Hz | 4 Ohms | 85.00 | 1W/500mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Rectangular | Paper/Cloth | Nd-Fe-B | - | - | Wire Leads | - |
Speakers Electronic Components
Explore Speakers electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
