Speakers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CAC40-02W100-09-1CHAMBER ASSEMBLY |
810 |
|
Datasheet |
- | Tray | Active | Magnetic | General Purpose, Enclosure Included | 800 Hz ~ 20 kHz | 1kHz | 4 Ohms | 102.00 | 2W/100mm | Sound Pressure Level (SPL) | 2 W | 2.2 W | Side | Rectangular | Polyphthalamide (PPA) | Nd-Fe-B | - | - | Wire Leads | 1.575" L x 1.024" W (40.00mm x 26.00mm) |
|
S110SL-REV 1SPEAKER 8OHM 2W TOP PORT 82DB |
378 |
|
Datasheet |
- | Tray | Active | Magnetic | Low Profile | 150 Hz ~ 20 kHz | 270Hz | 8 Ohms | 82.00 | 1W/500mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Square | Polyester, Polyethylene Terephthalate (PET) | Rare Earth | - | - | Solder Eyelet(s) | 1.102" L x 1.102" W (28.00mm x 28.00mm) |
|
GC0302MSPEAKR 32OHM 30MW TOP PORT 120DB |
0 |
|
Datasheet |
GC | Bulk | Active | Magnetic | General Purpose | 220 Hz ~ 3 kHz | 220Hz | 32 Ohms | 120.00 | 1mW/10mm | Sound Pressure Level (SPL) | 30 mW | 150 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.181" Dia (30.00mm) |
|
CS34-01P70-03-1SPEAKER 8OHM 1.5W TOP PORT 97DB |
941 |
|
Datasheet |
- | Tray | Active | Magnetic | General Purpose | 560 Hz ~ 20 kHz | 700Hz | 8 Ohms | 97.00 | 1.5W/100mm | Sound Pressure Level (SPL) | 1.5 W | 2 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 1.339" L x 0.433" W (34.00mm x 11.00mm) |
|
|
CS40-01P60-05-3XSPEAKER IP67 8OHM 1W 98DB |
925 |
|
Datasheet |
- | Tray | Active | Magnetic | General Purpose | 480 Hz ~ 20 kHz | 600Hz | 8 Ohms | 98.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.2 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 1.575" L x 0.512" W (40.00mm x 13.00mm) |
|
|
CAC25-02W100-10-1CHAMBER ASSEMBLY |
1,156 |
|
Datasheet |
- | Tray | Active | Magnetic | General Purpose | 800 Hz ~ 20 kHz | 1kHz | 4 Ohms | 102.00 | 2W/100mm | Sound Pressure Level (SPL) | 2 W | 2.2 W | Top | Rectangular | Polyphthalamide (PPA) | Nd-Fe-B | - | - | Wire Leads | 0.984" L x 0.748" W (25.00mm x 19.00mm) |
|
|
CS32-01W130-10-1XSPEAKER 8OHM 1.5W 101DB |
798 |
|
Datasheet |
- | Tray | Active | Magnetic | General Purpose | 1.04 kHz ~ 7 kHz | 1300Hz | 8 Ohms | 101.00 | 1W/10cm | Sound Pressure Level (SPL) | 1.5 W | 2 W | Top | Round | Polyethylenimine (PEI) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads with Connector | 1.276" Dia (32.40mm) |
|
|
OWS-5716TA-4CSPEAKER 4OHM 2W TOP PORT 112.5DB |
429 |
|
Datasheet |
- | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 480Hz | 4 Ohms | 112.50 | 2W/10cm | Sensitivity | 2 W | 3 W | Top | Round | Plastic | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 2.244" Dia (57.00mm) |
|
|
CAC35-01W110-05-2CHAMBER ASSEMBLY |
799 |
|
Datasheet |
- | Tray | Active | Magnetic | General Purpose, Enclosure Included | 880 Hz ~ 20 kHz | 1.1kHz | 8 Ohms | 100.00 | 1.5W/100mm | Sound Pressure Level (SPL) | 1.5 W | 1.7 W | Side | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | - | - | Wire Leads with Connector | 1.378" L x 0.787" W (35.00mm x 20.00mm) |
|
|
CAC32-02W110-13-1XCHAMBER ASSEMBLY |
1,000 |
|
Datasheet |
- | Tray | Active | Magnetic | General Purpose | 880 Hz ~ 20 kHz | 1.1kHz | 8 Ohms | 105.00 | 2W/100mm | Sound Pressure Level (SPL) | 2 W | 2.2 W | Top | Round, Rectangular Frame | Polyetheretherketone (PEEK) | Nd-Fe-B | IPX7 | - | Wire Leads | 1.260" L x 0.787" W (32.00mm x 20.00mm) |
|
|
CS38-02P50-02-1SPEAKER 4OHM 2W 93DB |
988 |
|
Datasheet |
- | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 20 kHz | 500Hz | 4 Ohms | 93.00 | 2W/100mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Rectangular | Thermoplastic Polyester Elastomer (TPEE) | Nd-Fe-B | - | - | Solder Pads | 1.496" L x 0.512" W (38.00mm x 13.00mm) |
|
S150SL-PC REV.1SPEAKER 8OHM 250MW TOP PORT 79DB |
1,700 |
|
Datasheet |
- | Tray | Active | Magnetic | General Purpose | 280 Hz ~ 7 kHz | 550Hz | 8 Ohms | 79.00 | 250mW/500mm | Sound Pressure Level (SPL) | 250 mW | 500 mW | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Rare Earth | - | - | PC Pins | 1.693" L x 1.575" W (43.00mm x 40.00mm) |
|
|
CAC36-02W80-09-1CHAMBER ASSEMBLY |
995 |
|
Datasheet |
- | Tray | Active | Magnetic | General Purpose, Enclosure Included | 640 Hz ~ 20 kHz | 800Hz | 4 Ohms | 111.00 | 2W/10cm | Sound Pressure Level (SPL) | 2 W | 2.5 W | Top | Rectangular | Paper/Cloth | Nd-Fe-B | - | - | Wire Leads with Connector | 1.417" L x 1.024" W (36.00mm x 26.00mm) |
|
CS25-02P95-05-1XSPEAKER 4OHM 2W TOP PORT 103DB |
998 |
|
Datasheet |
- | Tray | Active | Magnetic | General Purpose | 760 Hz ~ 20 kHz | 950Hz | 4 Ohms | 103.00 | 1W/100mm | Sound Pressure Level (SPL) | 2 W | 2.2 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.984" L x 0.551" W (25.00mm x 14.00mm) |
|
|
SOD02902Y50L34mm round speaker, 50 ohms |
308 |
|
Datasheet |
- | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 17 kHz | 450Hz | 50 Ohms | 72.00 | 100mW/1m | Sensitivity | 300 mW | 500 mW | Top | Round | - | Nd-Fe-B | - | - | Terminal Block | 1.339" Dia (34.00mm) |
|
CMS-35208NSPEAKER 8OHM 1W TOP PORT 98DB |
0 |
|
Datasheet |
CMS | Bulk | Obsolete | Magnetic | General Purpose | 576 Hz ~ 2.5 kHz | 720Hz | 8 Ohms | 98.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Oval, Rectangular Frame | Cloth | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.398" L x 0.807" W (35.50mm x 20.50mm) |
|

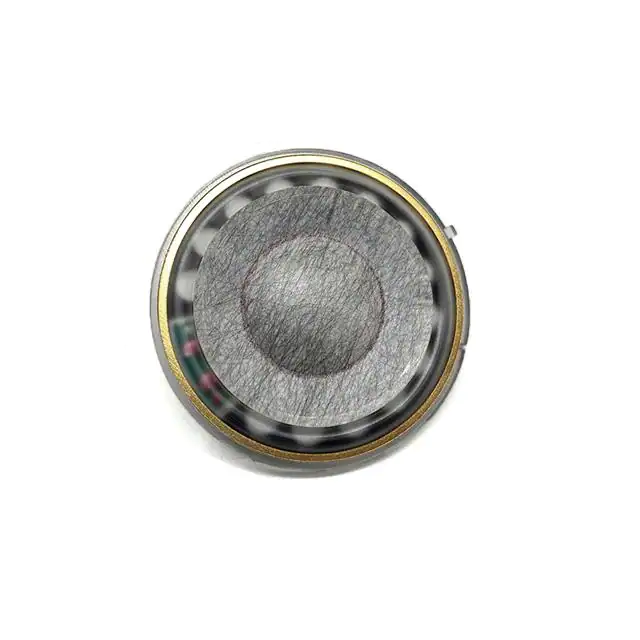

OWR-4009T-38ESPEAKR 38OHM 10MW TOP PORT 115DB |
1,046 |
|
Datasheet |
- | Bulk | Active | Magnetic | Headphone Driver | 20 Hz ~ 20 kHz | 3kHz | 38 Ohms | 115.00 | 1mW | Sensitivity | 10 mW | 20 mW | Top | Round | Plastic | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Eyelet(s) | 1.575" Dia (40.00mm) |
|
|
CAC32-02W90-16-1XCHAMBER ASSEMBLY |
926 |
|
Datasheet |
- | Tray | Active | Magnetic | General Purpose, Enclosure Included | 720 Hz ~ 20 kHz | 900Hz | 4 Ohms | 104.00 | 2W/100mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Square | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IPX8 | - | Wire Leads with Connector | 1.260" L x 1.260" W (32.00mm x 32.00mm) |
|
RNS-66100183NLSPEAKER 100OHM 500MW TOP PT 86DB |
259 |
|
Datasheet |
- | Box | Active | Magnetic | General Purpose | 310 Hz ~ 10 kHz | 310Hz | 100 Ohms | 86.00 | 1W/500mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round, Square Frame | - | - | - | - | Wire Leads | 2.598" L x 2.598" W (66.00mm x 66.00mm) |
|
|
P1511008NM28CMRLoudspeaker 15x11mm, 8Ohms, 0.8W |
1,979 |
|
Datasheet |
- | Tray | Active | Magnetic | Microspeaker | - | 615Hz | 8 Ohms | 82.00 | 100mW/100mm | Sound Pressure Level (SPL) | 800 mW | 1.2 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Spring Contacts | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
Speakers Electronic Components
Explore Speakers electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
