Speakers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

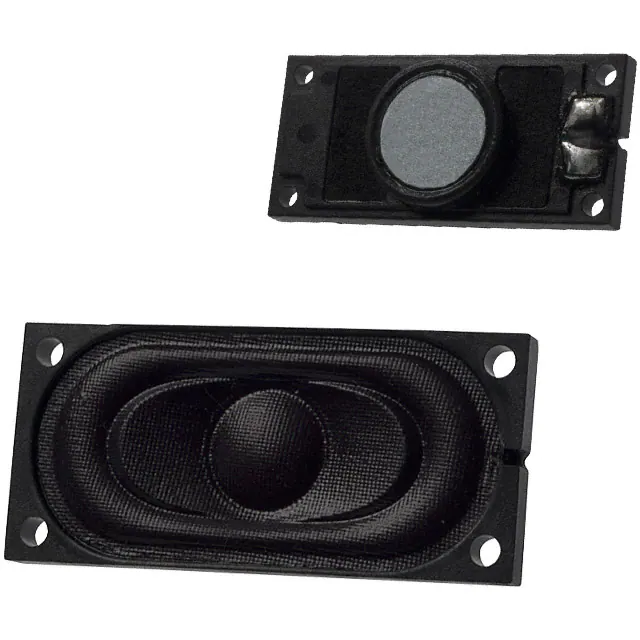

GC0351MSPEAKER 8OHM 1W TOP PORT 81DB |
26,969 |
|
Datasheet |
GC | Tray | Active | Magnetic | General Purpose | 520 Hz ~ 20 kHz | 650Hz | 8 Ohms | 81.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Oval, Rectangular Frame | Cloth | Nd-Fe-B | - | - | Solder Pads | 1.378" L x 0.630" W (35.00mm x 16.00mm) |
|

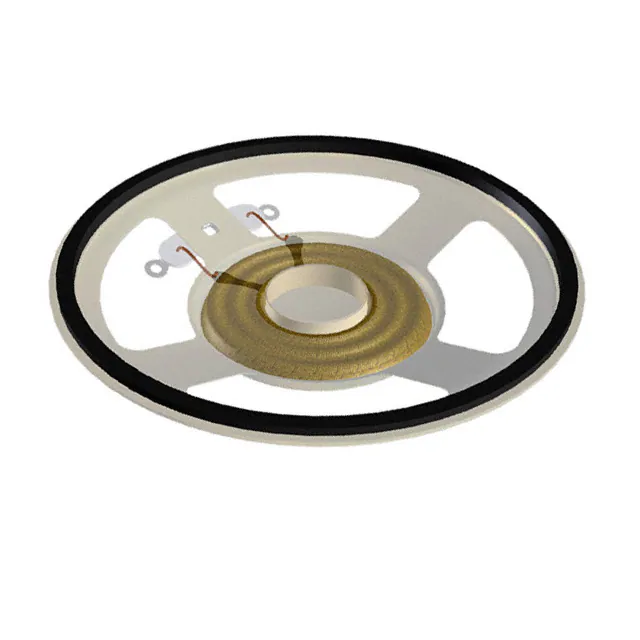

AS06608MR-RSPEAKER 8OHM 500MW TOP PORT 84DB |
670 |
|
Datasheet |
AS | Tray | Active | Magnetic | General Purpose | 380 Hz ~ 7.5 kHz | 380Hz | 8 Ohms | 84.00 | 1W/1M | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Ferrite | - | - | Solder Eyelet(s) | 2.598" Dia (66.00mm) |
|
AST-01508MR-WT-RSPEAKER 8OHM 300MW TOP PORT 87DB |
312 |
|
Datasheet |
AST | Bulk | Active | Magnetic | General Purpose | 1.7 kHz ~ 20 kHz | 1700Hz | 8 Ohms | 87.00 | 300mW/500mm | Sound Pressure Level (SPL) | 300 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | PC Pins | 0.591" Dia (15.00mm) |
|
SM150808-10SPEAKER 8OHM 1W TOP PORT 93DB |
1,122 |
|
Datasheet |
- | Tray | Active | Magnetic | General Purpose | 850 Hz ~ 10 kHz | 850Hz | 8 Ohms | 93.00 | 100mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Rectangular | - | - | IP67 - Dust Tight, Waterproof | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
CLS0301MP-1SPEAKER 8OHM 200MW TOP PORT 78DB |
950 |
|
Datasheet |
CLS | Tray | Active | Magnetic | Low Profile | 500 Hz ~ 6 kHz | 500Hz | 8 Ohms | 78.00 | 200mW/500mm | Sound Pressure Level (SPL) | 200 mW | 300 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | PC Pins | 1.181" Dia (30.00mm) |
|
SM500416-1SPEAKR 16OHM 250MW TOP PORT 97DB |
579 |
|
Datasheet |
- | Tray | Active | Magnetic | General Purpose | 400 Hz ~ 5 kHz | 400Hz | 16 Ohms | 97.00 | 100mm | Sound Pressure Level (SPL) | 250 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Solder Pads | 1.969" Dia (50.00mm) |
.jpg)
|
SP-5728TSPEAKER 90DB SENSITIVITY 57MM DI |
4,311 |
|
Datasheet |
SP | Tray | Active | Magnetic | General Purpose | 220 Hz ~ 20 kHz | 220Hz | 8 Ohms | 90.00 | 100mW/100mm | Sound Pressure Level (SPL) | 3 W | 5 W | Top | Round | - | - | - | - | Solder Eyelet(s) | 2.244" Dia (57.00mm) |
|
SM160807-1SPEAKER 7OHM 700MW TOP PORT 93DB |
303 |
|
Datasheet |
- | Tray | Active | Magnetic | General Purpose | 650 Hz ~ 10 kHz | 850Hz | 7 Ohms | 93.00 | 100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyetheretherketone (PEEK) | - | - | - | Spring Type | 0.630" L x 0.354" W (16.00mm x 9.00mm) |
|
CLS0282MA-L152SPEAKER 8OHM 500MW TOP PORT 85DB |
3,782 |
|
Datasheet |
CLS | Tray | Active | Magnetic | Low Profile | 550 Hz ~ 10 kHz | 550Hz | 8 Ohms | 85.00 | 500mW/500mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 1.102" Dia (28.00mm) |
|

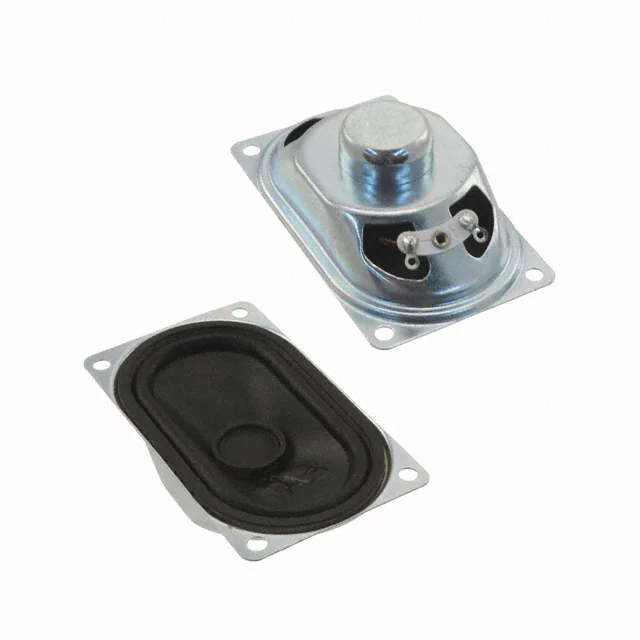

AS07108PO-3-RSPEAKER 8OHM 3W TOP PORT 86DB |
112 |
|
Datasheet |
AS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 250Hz | 8 Ohms | 86.00 | 1W/500mm | Sound Pressure Level (SPL) | 3 W | 5 W | Top | Oval, Rectangular Frame | Paper | Nd-Fe-B | - | - | Solder Eyelet(s) | 2.795" L x 1.614" W (71.00mm x 41.00mm) |
|
K 28 WPC - 8 OHMSPEAKER 8OHM 1W TOP PORT 75DB |
186 |
|
Datasheet |
- | Bulk | Active | - | General Purpose | 300 Hz ~ 20 kHz | 700Hz | 8 Ohms | 75.00 | 1W/1M | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Solder Pads | 1.102" Dia (28.00mm) |
|
CMS-20103-078SPSPEAKER 8OHM 700MW TOP PORT 90DB |
424 |
|
Datasheet |
CMS | Tray | Active | Magnetic | General Purpose | 440 Hz ~ 20 kHz | 550Hz | 8 Ohms | 90.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | - | - | Solder Pads | 0.787" L x 0.394" W (20.00mm x 10.00mm) |
|
WSP-4508-8SPEAKER 8OHM 2W TOP PORT 93DB |
307 |
|
Datasheet |
- | Tray | Active | Magnetic | General Purpose | 470 Hz ~ 8 kHz | 470Hz | 8 Ohms | 93.00 | 100mW/100mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Round | - | - | IP65 - Dust Tight, Water Resistant | - | Solder Eyelet(s) | 1.772" Dia (45.00mm) |
|
CES-271911-158PMSPEAKER 8OHM 1.5W TOP PORT 95DB |
597 |
|
Datasheet |
CES | Tray | Active | Magnetic | General Purpose, Enclosure Included | 600 Hz ~ 5 kHz | 750Hz | 8 Ohms | 95.00 | 1.5W/100mm | Sound Pressure Level (SPL) | 1.5 W | 1.7 W | Top | Rectangular | Foam | Nd-Fe-B | - | - | Wire Leads with Connector | 1.067" L x 0.756" W (27.10mm x 19.20mm) |
|

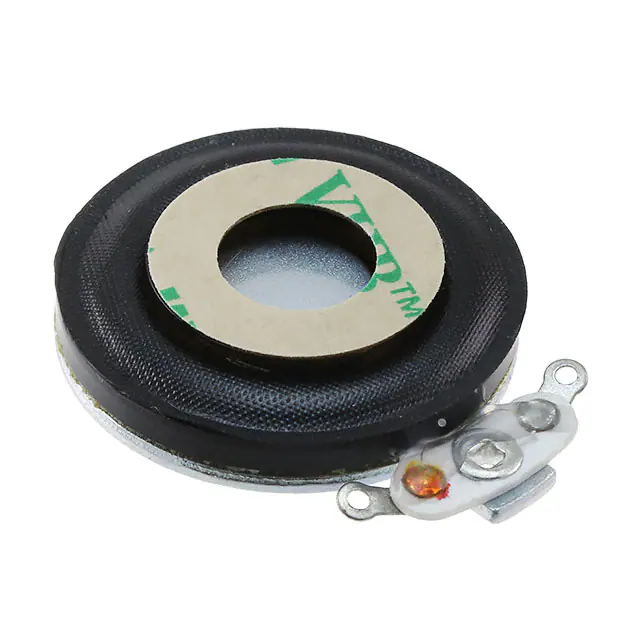

ASX02608-RSPEAKER 8OHM 1.5W TOP PORT 82DB |
138 |
|
Datasheet |
ASX | Tray | Active | Magnetic | Exciter | 650 Hz ~ 10.5 kHz | 650Hz | 8 Ohms | 82.00 | 1W/100mm | Sound Pressure Level (SPL) | 1.5 W | 3 W | Top | Round | - | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.043" Dia (26.50mm) |
|
SP280304-2SPEAKER 4OHM 2W TOP PORT 94DB |
216 |
|
Datasheet |
Dynamis | Tray | Active | Magnetic | General Purpose | 380 Hz ~ 20 kHz | 380Hz | 4 Ohms | 94.00 | 100mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Round, Square Frame | - | - | - | - | Solder Eyelet(s) | 1.102" L x 1.102" W (28.00mm x 28.00mm) |
|
AS02508CO-4-RSPEAKER 8OHM 1W TOP PORT 95DB |
288 |
|
Datasheet |
AS | Tray | Active | Magnetic | General Purpose | 600 Hz ~ 20 kHz | 1100Hz | 8 Ohms | 95.00 | 1W/10cm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Oval, Rectangular Frame | Cloth | Nd-Fe-B | - | - | None | 0.984" L x 0.551" W (25.00mm x 14.00mm) |
|
AS02008MO-RSPEAKER 8OHM 500MW TOP PORT 94DB |
199 |
|
Datasheet |
AS | Tray | Active | Magnetic | General Purpose | 400 Hz ~ 20 kHz | 750Hz | 8 Ohms | 94.00 | 500mW/100mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Oval | Polyester, Polyethylene Terephthalate (PET) | Rare Earth | - | - | Solder Pads | 0.787" L x 0.551" W (20.00mm x 14.00mm) |
|
SP400804-4SPEAKER 4OHM 2W TOP PORT 100DB |
276 |
|
Datasheet |
Agile | Tray | Active | Magnetic | General Purpose | 800 Hz ~ 10 kHz | 800Hz | 4 Ohms | 100.00 | 100mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Oval, Rectangular Frame | Paper/Cloth | - | - | - | Wire Leads | 1.575" L x 1.181" W (40.00mm x 30.00mm) |
|
CES-302611-158PM-67SPEAKER 8OHM 1.5W TOP PORT 95DB |
272 |
|
Datasheet |
CES | Tray | Active | Magnetic | General Purpose, Enclosure Included | 720 Hz ~ 15 kHz | 900Hz | 8 Ohms | 95.00 | 1.5W/100mm | Sound Pressure Level (SPL) | 1.5 W | 1.8 W | Top | Rectangular | Polyurethane (PU), Polyethylenimine (PEI) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads with Connector | 1.181" L x 0.984" W (30.00mm x 25.00mm) |
