Speakers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMS-151125-076SP-67SPEAKER 6OHM 700MW TOP PT 92.5DB |
169 |
|
Datasheet |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 550Hz | 6 Ohms | 92.50 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
AS01808MS-SP18-WP-RSPEAKER 8OHM 500MW TOP PORT 88DB |
109 |
|
Datasheet |
AS | Tray | Active | Magnetic | Receiver | 500 Hz ~ 20 kHz | 850Hz | 8 Ohms | 88.00 | - | Sensitivity | 500 mW | 1 W | Top | Rectangular | Polyimide (PI) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.709" L x 0.512" W (18.00mm x 13.00mm) |
|
CMS-16093-078L100ASPEAKER 8OHM 700MW TOP PORT 91DB |
312 |
|
Datasheet |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 550Hz | 8 Ohms | 91.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads with Connector | 0.630" L x 0.354" W (16.00mm x 9.00mm) |
|
CDS-4051-32-SPSPEAKR 32OHM 250MW TOP PORT 92DB |
643 |
|
Datasheet |
CDS | Box | Active | Magnetic | General Purpose | 480 Hz ~ 6 kHz | 600Hz | 32 Ohms | 92.00 | 100mW/100mm | Sound Pressure Level (SPL) | 250 mW | 500 mW | Top | Round | Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 1.575" Dia (40.00mm) |
|
SM150808-9SPEAKER 8OHM 700MW TOP PORT 92DB |
208 |
|
Datasheet |
- | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 10 kHz | 850Hz | 8 Ohms | 92.00 | 100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | - | - | IP67 - Dust Tight, Waterproof | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
CMS-16093-078S-67SPEAKER 8OHM 700MW TOP PORT 91DB |
2,226 |
|
Datasheet |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 550Hz | 8 Ohms | 91.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Spring Type | 0.630" L x 0.354" W (16.00mm x 9.00mm) |
|
SP-1609S-1SPEAKER 8OHM 500MW TOP PORT 82DB |
938 |
|
Datasheet |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 3.4 kHz | 850Hz | 8 Ohms | 82.00 | 100mW | Sound Pressure Level (SPL) | 500 mW | 700 mW | Top | Rectangular | - | Nd-Fe-B | - | - | Spring Type | 0.630" L x 0.354" W (16.00mm x 9.00mm) |
|
SM260608-1SPEAKER 8OHM 500MW TOP PORT |
456 |
|
Datasheet |
- | Tray | Active | Magnetic | General Purpose | 660 Hz ~ 5 kHz | - | 8 Ohms | - | 100mm | Sound Pressure Level (SPL) | 500 mW | 600 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Solder Pads | 1.024" Dia (26.00mm) |
|
CMS-15113-078S-67SPEAKER 8OHM 700MW TOP PORT 91DB |
308 |
|
Datasheet |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 700Hz | 8 Ohms | 91.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|

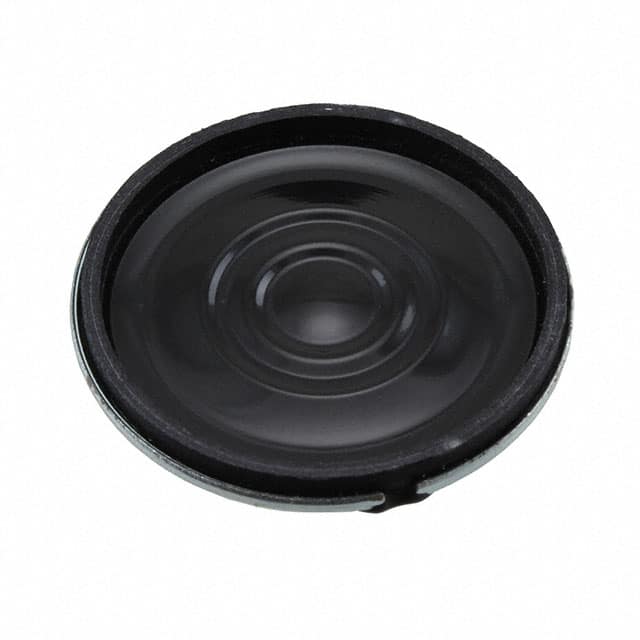

SP-2605SPEAKER 8OHM 500MW TOP PORT 90DB |
225 |
|
Datasheet |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 300 Hz ~ 8 kHz | 550Hz | 8 Ohms | 90.00 | 100mW/100mm | Sound Pressure Level (SPL) | 500 mW | 600 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | N38 | - | - | Solder Eyelet(s) | 1.024" Dia (26.00mm) |
|

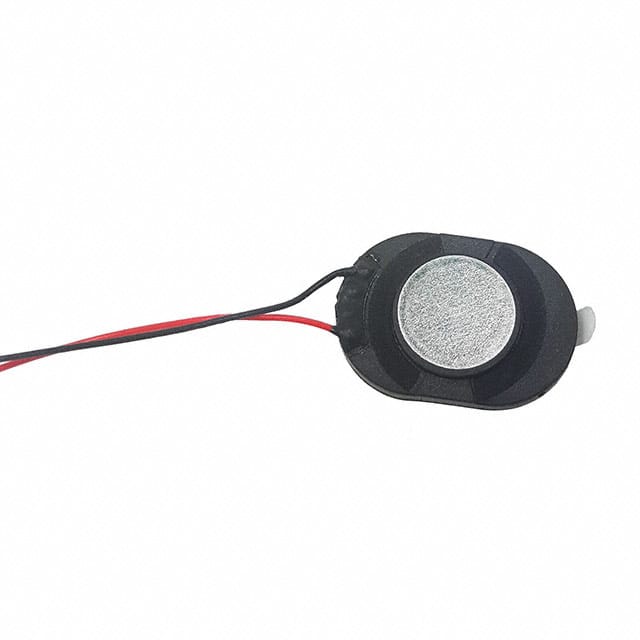

SP-2014L-1SPEAKER 8OHM 500MW TOP PORT 85DB |
704 |
|
Datasheet |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 900 Hz ~ 6 kHz | 900Hz | 8 Ohms | 85.00 | 1W/500mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Oval | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 0.787" L x 0.551" W (20.00mm x 14.00mm) |
|
SW150908-1SPEAKER 8OHM 500MW TOP PORT 86DB |
415 |
|
Datasheet |
SW | Bulk | Active | Magnetic | General Purpose | 900 Hz ~ 20 kHz | 1kHz | 8 Ohms | 86.00 | 500mW/100mm | Sound Pressure Level (SPL) | 500 mW | 700 mW | Top | Rectangular | Polyetheretherketone (PEEK) | - | Waterproof | - | Spring Type | 0.591" L x 0.236" W (15.00mm x 6.00mm) |
|
CMS-15113-078L100A-67SPEAKER 8OHM 700MW TOP PORT 91DB |
339 |
|
Datasheet |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 700Hz | 8 Ohms | 91.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads with Connector | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
|
CMS-16093-078L100A-67SPEAKER 8OHM 700MW TOP PORT 91DB |
375 |
|
Datasheet |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 550Hz | 8 Ohms | 91.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads with Connector | 0.630" L x 0.354" W (16.00mm x 9.00mm) |
|
CMS-16093-076L100A-67SPEAKER 6OHM 700MW TOP PORT 90DB |
255 |
|
Datasheet |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 600Hz | 6 Ohms | 90.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads with Connector | 0.630" L x 0.354" W (16.00mm x 9.00mm) |
|
CMS-160925-078L100B-67SPEAKER 8OHM 700MW TOP PORT 90DB |
244 |
|
Datasheet |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 550Hz | 8 Ohms | 90.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads with Connector | 0.630" L x 0.354" W (16.00mm x 9.00mm) |
|
|
CMS-15113-078L100B-67SPEAKER 8OHM 700MW TOP PORT 91DB |
148 |
|
Datasheet |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 700Hz | 8 Ohms | 91.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads with Connector | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
|
CMS-151135-076L100B-67SPEAKER 6OHM 700MW TOP PORT 92DB |
135 |
|
Datasheet |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 600Hz | 6 Ohms | 92.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads with Connector | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
AS02016MR-2-RSPEAKR 16OHM 300MW TOP PORT 91DB |
896 |
|
Datasheet |
AS | Tray | Active | Magnetic | General Purpose | 600 Hz ~ 7 kHz | 600Hz | 16 Ohms | 91.00 | 300mW/100mm | Sound Pressure Level (SPL) | 300 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.787" Dia (20.00mm) |
|
GC0281MSPEAKR 8OHM 100MW TOP PORT 112DB |
1,922 |
|
Datasheet |
GC | Tray | Active | Magnetic | General Purpose | 0 Hz ~ 2.8 kHz | - | 8 Ohms | 91.00 | - | Sound Pressure Level (SPL) | 100 mW | 200 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.102" Dia (28.00mm) |
